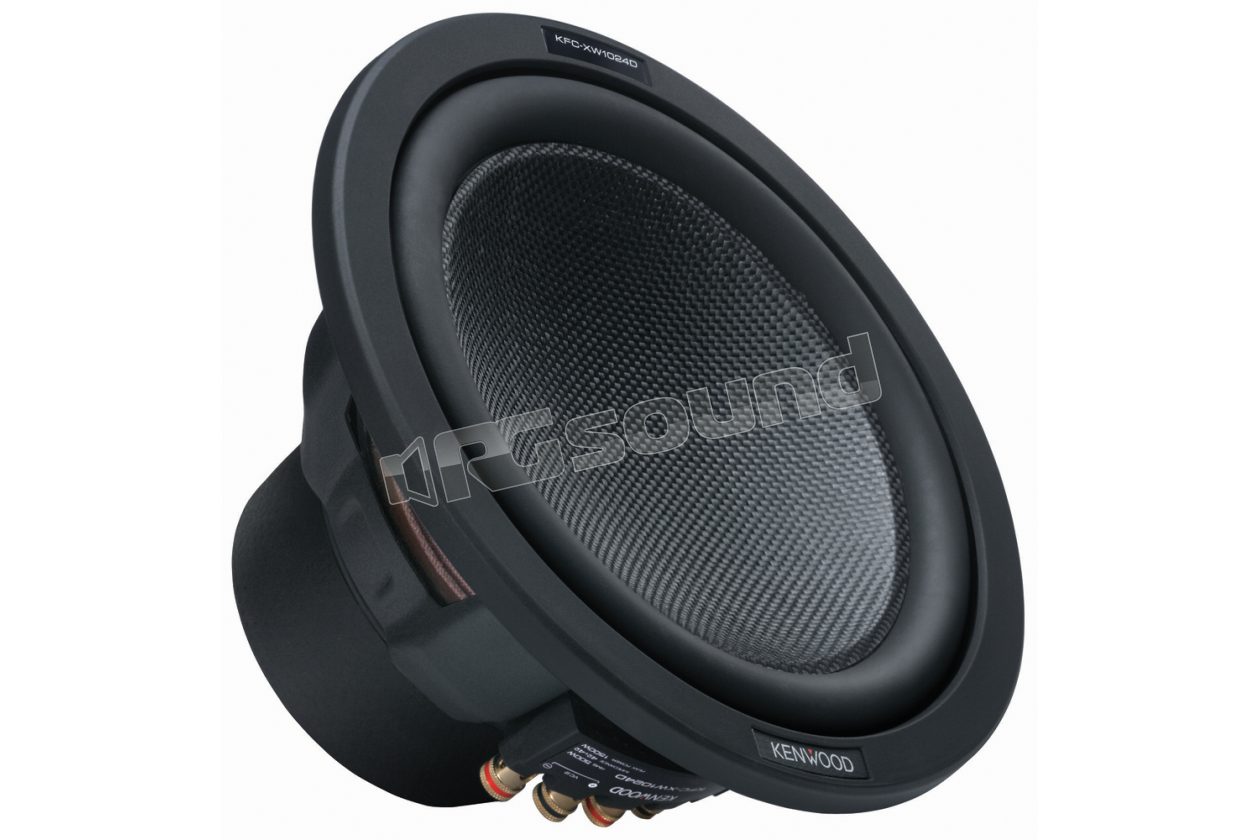

KFC-XW1024D 250mm Subwoofer

Kenwood

Discontinued

Your price:
€ 190,60
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
36 - 500 Hertz
Sensitivity
84 dB
Impedance
4 Ohm
Weight
5,8 Kg
Installation Depth
147 mm
Woofer Material
membrana di carbonio cono-PP

KFC-XW1024D - Subwoofer with 250 mm carbon-fiberglass cone

• Superlinear spider
• Dual magnet activation
• Magnet rubber cover
• High-excursion rubber surround

Speaker technical data
800 watt peak power 800 watt
Load capacity 400 watt + 400 watt
Nominal power 250 watt 250 watt
Cone material carbon membrane cone-PP
Speaker basket DIE-CAST aluminum cart
Sensitivity 84dB/W/m
Frequency response 36Hz ~ 500Hz
Subwoofer impedance 4Ω x 2
Dimensions (W x H x D) 275 x 161.2 x 275 millimeters
Installation depth 147 millimeters
Mounting hole diameter 232 millimeters
Diffuser weight 4600 gr
Gross weight 5,800 gr
Magnet Weight 1700 gr

Parameters
Nominal (Z) 4 Ω Ω 4
DC Resistance (Re) 3 Ω Ω 3
Resonance frequency (UST) 42.4 Hz
Mechanical merit (SGQ) 3.892
Merit (QES) 0.848
Merit (QTS) 0.696
(LBM) 0.56 mH
Force factor (BL) 6.66 t / m
Max displacement (Xmax) 6.9 millimeters
Mass displacement (MMS) 94.2 gr
Air equivalent volume (VAS) 25.48 liters
Membrane surface (SD) 0.035 m²
Displacement 1790cc

Closed box volume 25.3 liters
Closed box dimensions (W x H x D) 330 x 375 x 325 mm (19 millimeters thick MDF)

Bass-reflex box volume 35.4 liters
Bass-reflex box dimensions (W x H x D) 485 x 340 x 300 mm (19 millimeters thick MDF)
Port duct (W x L x H) 35 x 302 x 480 millimeters
