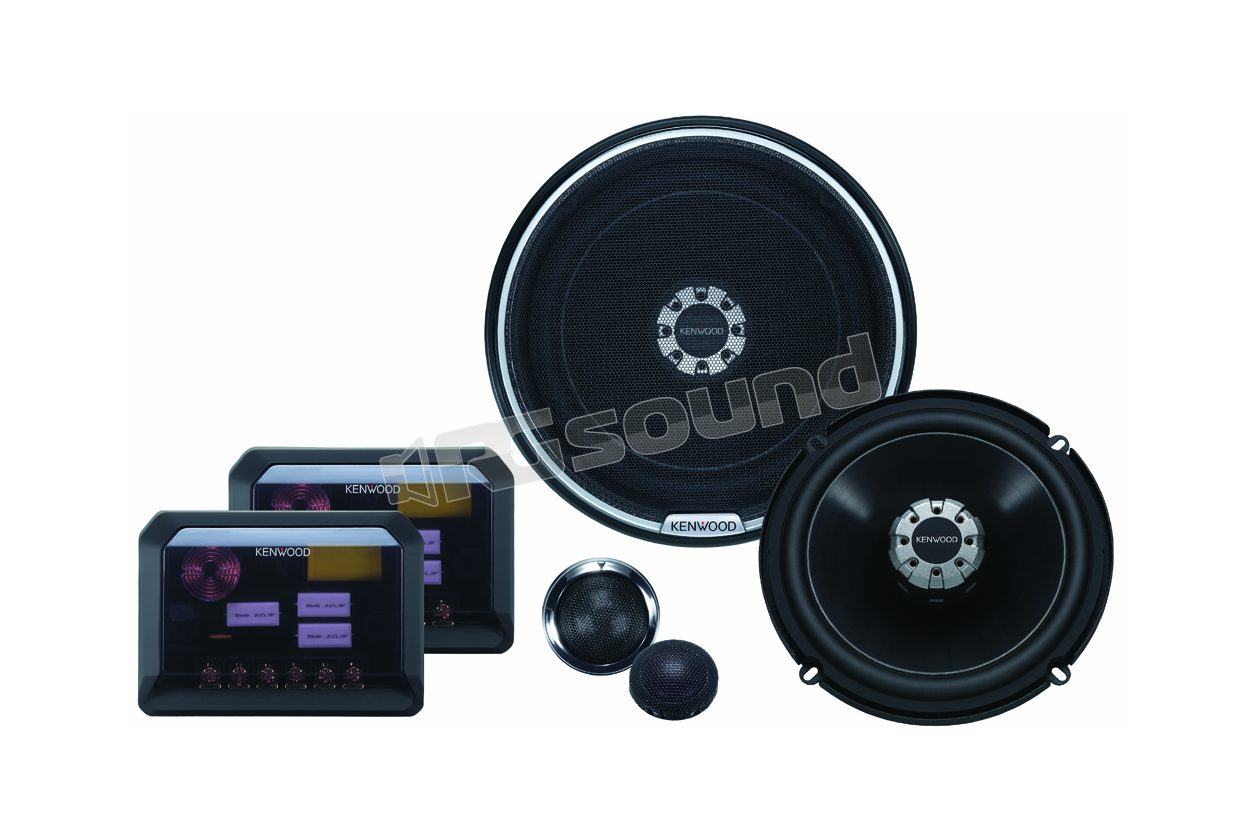

KFC-XS1720P

Kenwood

Discontinued

Type
2-way separate kit
Woofer Size
165 mm
MAX Power
300 Watt
RMS Power
150 Watt
Sensitivity
87 dB
Impedance
4 Ohm

2-way high-quality kit with ultra-compact woofer

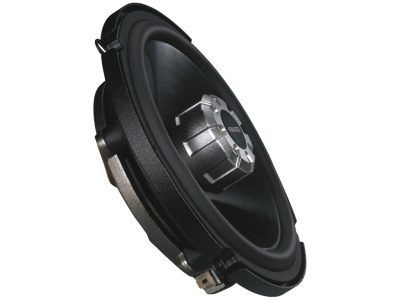

Woofer
• Carbon-PP hybrid cone woofer 170 mm
• Die-cast aluminum basket
• Low mounting depth and universal mounting
Tweeter
• 25 mm soft dome Tetron tweeter
• Adjustable type (if installed with flush-mount brackets)
• Three tweeter mounting options: Flush mounting / Surface mounting / Factory installation
Crossover
• Compact high-quality crossover network
• Zobel network circuit for woofer
• Tweeter protection circuit
• 12 dB/oct. crossover (HPF/LPF)
• Three-point tweeter attenuator

Speaker / woofer technical data
300 W peak handling power
Handling power 150 W
Nominal power 100 W
Cone carbon P.P. hybrid cone membrane material
Speaker steel basket
rubber suspension
Sensitivity 87dB/W/m
Frequency response 63Hz ~ 24000Hz
Subwoofer impedance 4Ω x 1

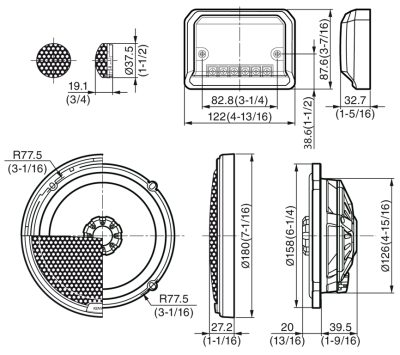

Dimensions (W x H x D) 158 x 158 x 59.5 millimeters
Mounting depth 39.5 millimeters
Mounting hole diameter 126 millimeters
Speaker weight with cover (unit) 530 gr
Speaker weight without cover (unit) 480 gr
Gross weight 2,300 gr
Magnet Weight 47 gr

Tweeter specifications
Cone dimensions 25 millimeters
Cone material Seidenkalotte

Crossover specifications
2-way crossover
Zobel network filter for woofer
Cutoff slope: -12 dB; woofer: -12 dB
3 level adjustments for tweeter
Tweeter overload protection Yes



Discontinued
