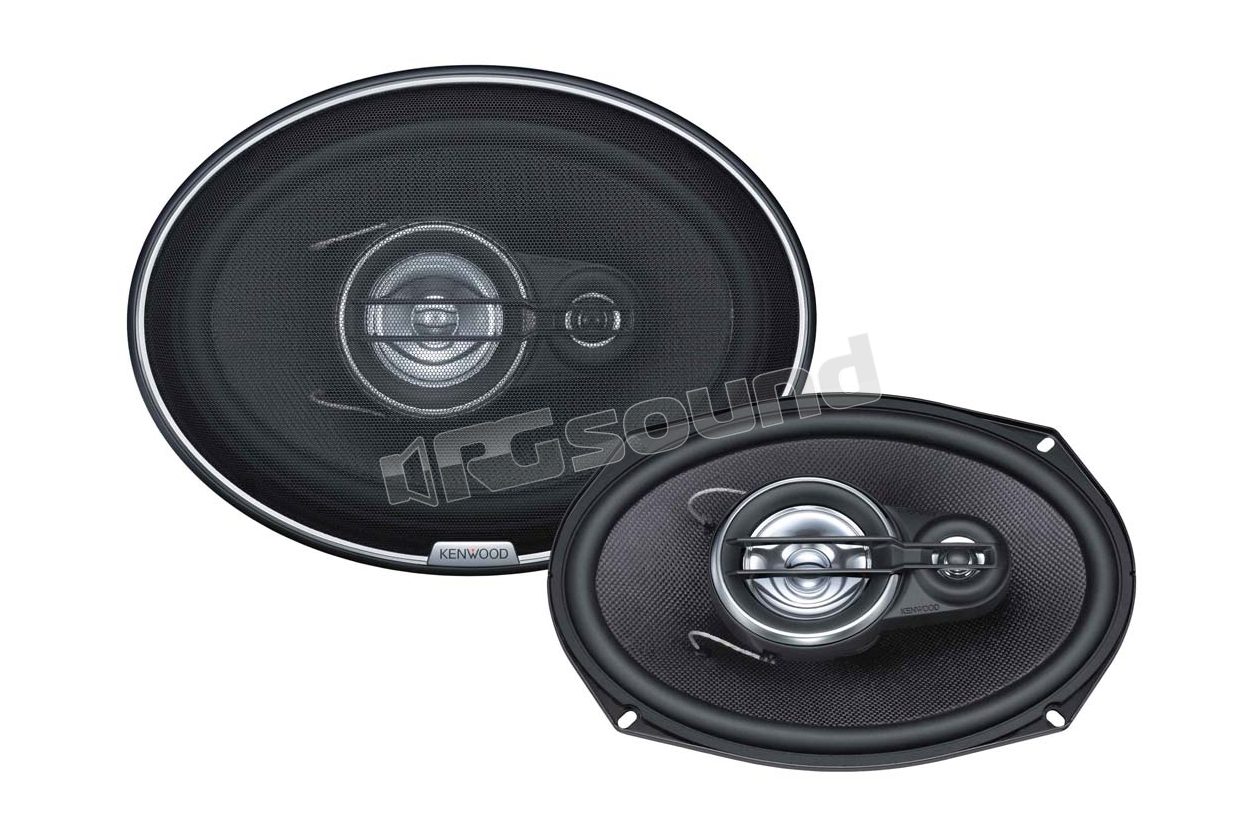

KFC-X712 7x10

Kenwood

Discontinued

Type
Coaxial
Frequency Response
28 - 30000 Hertz
MAX Power
400 Watt
RMS Power
80 Watt
Sensitivity
93 dB
Impedance
3 Ohm
Woofer Material
PP

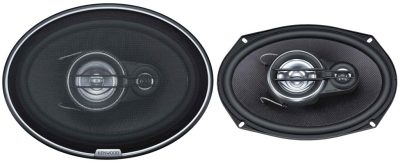

Pair of 7" x 10" coaxial speakers, 3-way high performance.

New hybrid polypropylene cone with diamond matrix pattern.
The speakers of the Package, X and S series feature a hybrid carbon PP cone with diamond matrix pattern, which ensures natural sound reproduction across all ranges. The carbon-polypropylene combination increases rigidity and lightness. The diamond-shaped texture impressed all the way to the speaker edge helps reduce surface waves on the diaphragm, decrease transverse vibrations and suppress sound distortion. The diamond matrix pattern also increases rigidity and improves voice coil response movement, thus providing dynamic and sharp sound reproduction.

Main Features

3-way 3 speaker System
7" x 10" carbon-fiberglass woofer cone
High performance speaker system
70 millimeter midrange, 20 millimeter tweeter
400W peak input power


Speaker Features

Speaker system 3-way 3 speaker System
Speaker type Coaxial
Peak input power 400W
Rated input power 160W
Speaker Size 7" x 10"
Speaker cone design Carbon-fiberglass cone
Magnet type Ferrite
Terminals Slide type
Installation Capability Door / rear cover


Speaker / Woofer Specifications

Peak input power 400W
Maximum input power 160W
Rated input power 80W
Woofer cone material Carbon-fiberglass cone
Speaker Basket Steel
Speaker Surround Butyl rubber
Sensitivity 93dB/W/m
Frequency response 28Hz ~ 30000Hz
Speaker impedance 4Ω

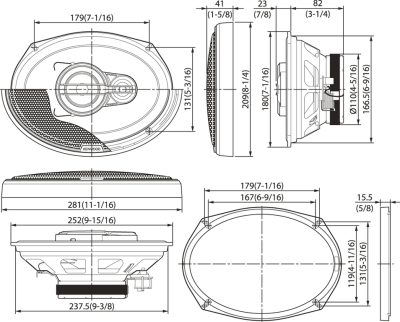

Dimensions (W x H x D) 269 x 198 x 110 millimeters
Mounting depth 82 millimeters
Mounting hole diameter 237.5 millimeters x 166.5 millimeters
Speaker weight with grille (pcs.) 2110gr
Speaker weight w/o grille (pcs.) 1970gr
Gross weight 5000gr
Magnet weight 506gr


Midrange Speaker Specifications

Cone 70 millimeters
Cone type PEI Cone
Magnet type Ferrite


Tweeter Specifications

Cone 25 millimeters
Cone material PEI Balanced Dome
Magnet type Ferrite


Accessories

Bracket 6" x 9" adapter
Butyl rubber
Screws (Parker-type) Ø 4 x 40 mm, 8 pcs.
Screws (Parker-type) Ø 4 x 20 mm, 8 pcs.
Screws (M-type) M4 x 12 mm, 8 pcs.
Tightening nut (L) 8 pcs.
Speed nut φ 4, 8 pcs.
Grille Yes
Grill Holder 2 pcs.
Speaker cable 0.5m

Discontinued
