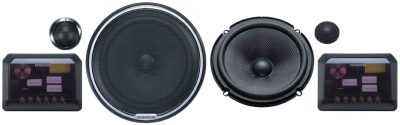

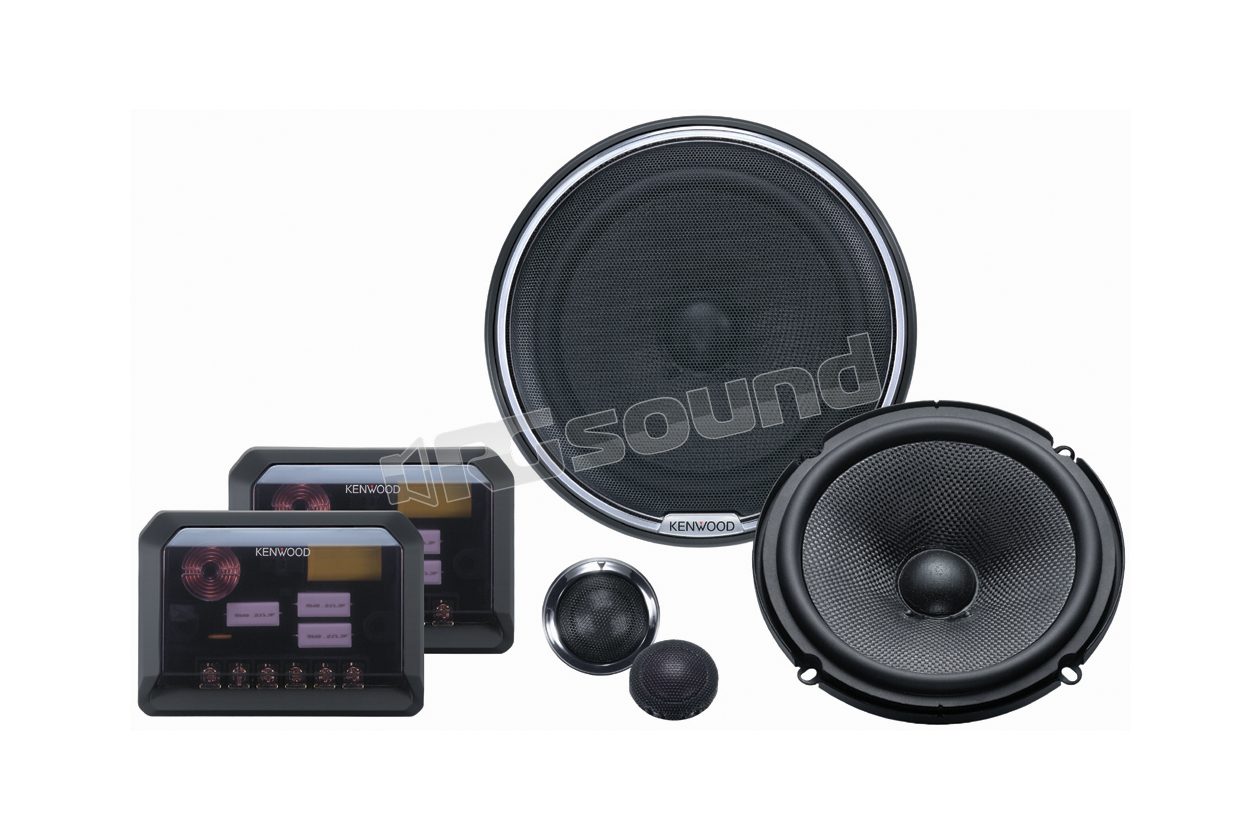

KFC-X1720P

Kenwood

Discontinued

Type
2-way separate kit
Woofer Size
165 mm



High-performance two-way separate component speaker system 170 mm

Woofer
• Woofer with 170 mm fiberglass-carbon fiber cone
• Equipped with bracket for FORD/ MAZDA/ HONDA/ GM
Tweeter
• 25 mm Tetron soft dome tweeter
• Adjustable type (if installed with flush-mount brackets)
• Three tweeter mounting modes: Flush mounting / Surface mounting / Factory installation
Crossover
• Compact high-quality crossover network
• Zobel network circuit for woofer
• Tweeter protection circuit
• Crossover 12 dB/oct. (HPF/LPF)
• Three-point tweeter attenuator

Speaker / woofer technical data
300 W peak load
150 W load capacity
100 W rated power
Cone carbon fiber reinforced fiberglass cone material
Speaker steel basket
Rubber suspension
86dB/W/m sensitivity
63Hz ~ 24000Hz frequency response
Subwoofer impedance 4Ω x 1
Dimensions (W x H x D) 158 x 158 x 70.2 millimeters
Installation depth 57.5 millimeters
Mounting hole diameter 126 millimeters
Speaker weight with cover (unit) 1300 gr
Speaker weight without cover (unit) 1210 gr
Gross weight 4,000 gr
Magnetic weight 442 gr

Tweeter specifications

Cone dimensions 25 millimeters
Cone material silk dome

Crossover specifications
2-way crossover
Zobel filter for woofer Yes
Slope: -12 dB; woofer: -12 dB
3 level adjustments for tweeter
Overload protection for tweeter Yes
Discontinued
