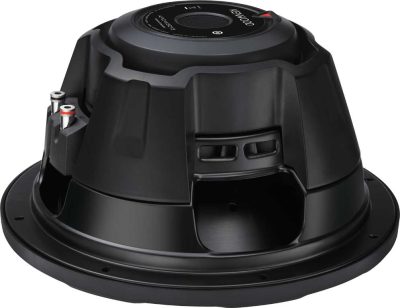

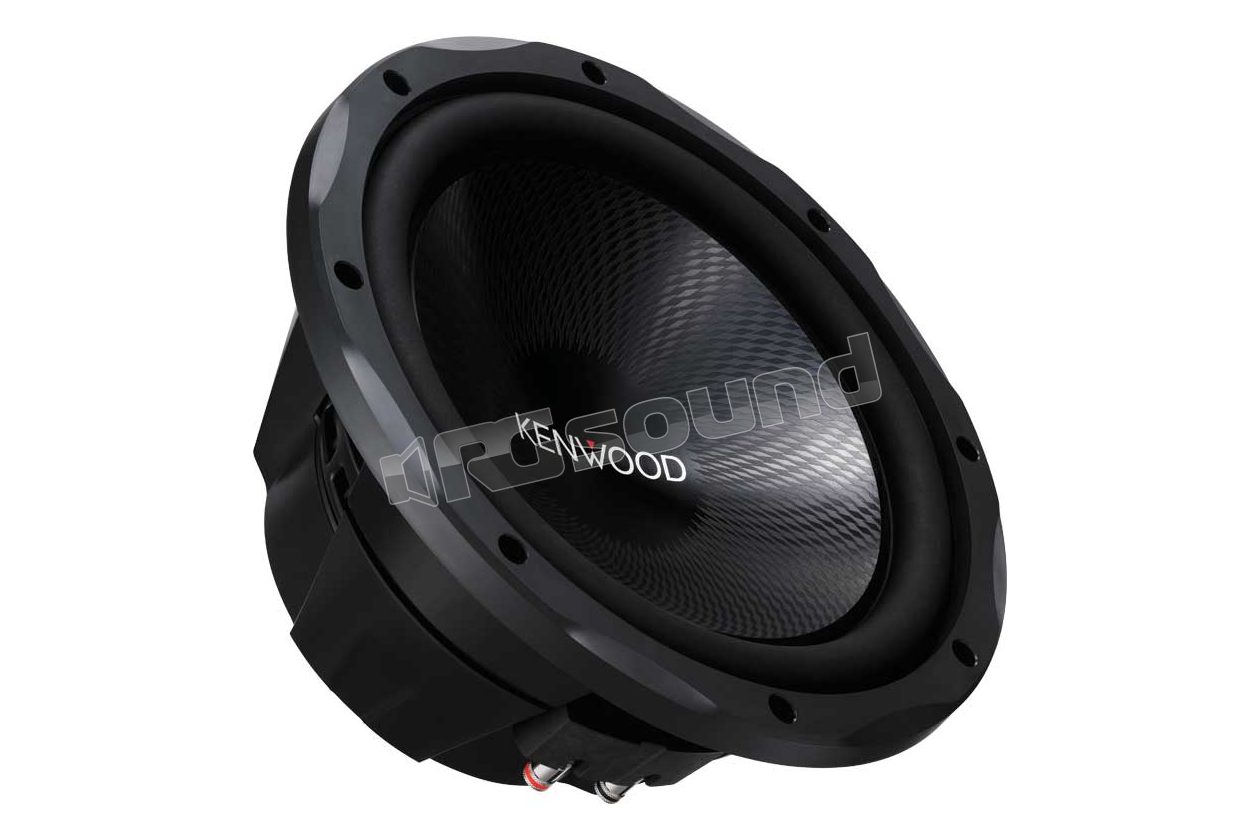

KFC-W3013 30cm Subwoofer

Kenwood

Discontinued

Your price:
€ 81,70
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1200 Watt
RMS Power
400 Watt
Frequency Response
34-300 Hertz
Sensitivity
85 dB
Impedance
4 Ohm
Weight
7.60 Kg
Installation Depth
153 mm
Woofer Material
Polipropilene a iniezione

KFC-W3013 - Component Series 30 cm Subwoofer. Peak Power: 1200W

Speaker recommended for use in sealed enclosure of 35.4 liters or in bass reflex box of 56 liters (see attached projects)



Main Features

P.P. fabric fiber cone 300mm
Diamond-arc design
Maximum input power 1200Watts
Dual ventilation system
Rubber surround
Push terminals
Reversible gasket



Speaker Features

Speaker type Subwoofer
Peak input power 1200W
Input power 400W
Speaker size 300mm
Cone design type Diamond-arc design
Magnet type Ferrit
Terminals Silver plated push terminals
Dual Ventilation System Yes
Speaker cover Yes, as part of dual ventilation system
Gasket On 2 sides
Installation possibility Sealed enclosure / Bass Reflex



Technical Specifications

Peak input power 1200W
Maximum input power 800W
Input power 400W
Woofer cone material Injection molded P.P. cone
Spider Basket Steel
Speaker Surround Rubber
Sensitivity 85dB/W/m
Frequency response 34Hz ~ 300Hz
Subwoofer impedance 4Ω x 1

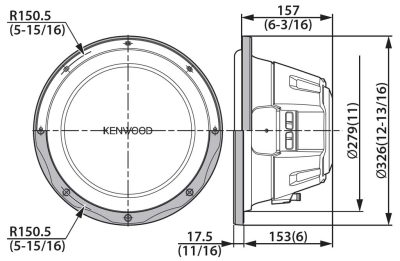

Dimensions (WxHxD) 326 x 326 x 170.5mm
Mounting depth 153mm
Mounting hole diameter 282mm
Spider weight 6300gr
Magnet weight 1780gr



Subwoofer Parameters

Nominal impedance (Z) 4Ω
DC resistance (Re) 3.4Ω
Resonance frequency (FSO) 25Hz
Mechanical Q factor (QMS) 8.25
Electrical Q factor (QES) 0.91
Total Q factor (QTS) 0.82
Coil inductance (LBM) 1.65mH
Coil diameter 65mm
Force factor (BL) 10.5T/m
Peak excursion 15.1mm
Maximum excursion (MMS) 183gr.
Acoustic volume compatibility (VAS) 83.7liter
Piston area (SD) 0.051m²
Cone surface 2155cc
Sealed enclosure volume 35.4liter
Enclosure dimensions 475 x 362 x 299mm ( 19mm thick MDF)(WxHxD)
Bass Reflex volume 56.6liter
Bass Reflex box dimensions 590 x 362 x 355mm ( 19mm thick MDF)(WxHxD)
Port dimensions 38 x 324 x 546mm



Included Accessories

Screws (Parker type) Ø 4 x 35mm, 8 pieces
Gasket 1 piece(s)

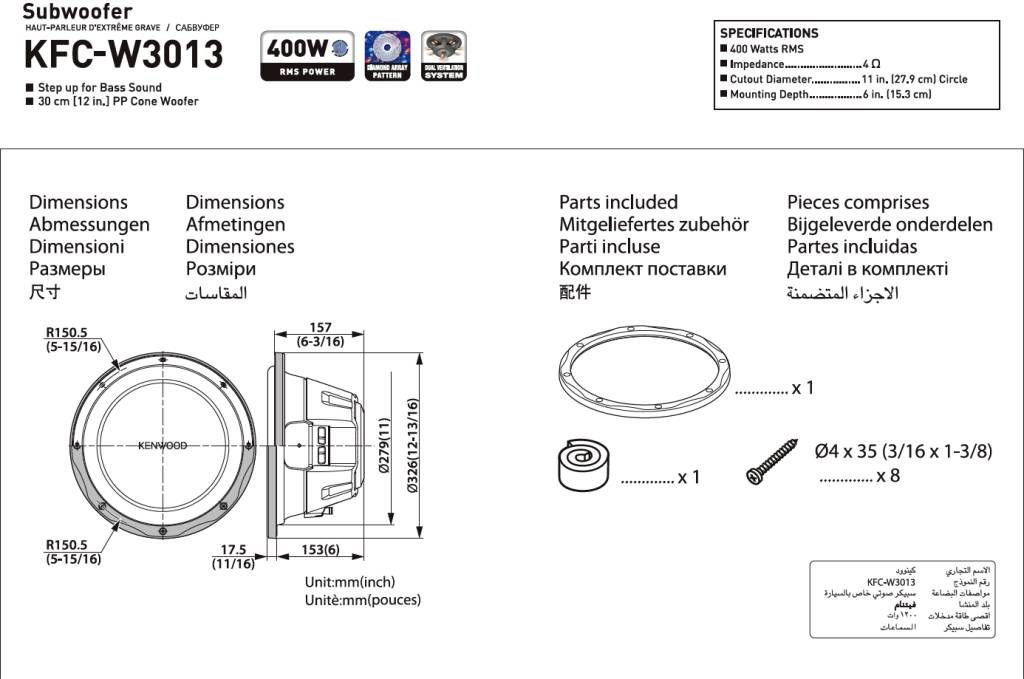

Scheda tecnica - specifiche - progetti box

20120110151347-kfc-w3013.pdf
