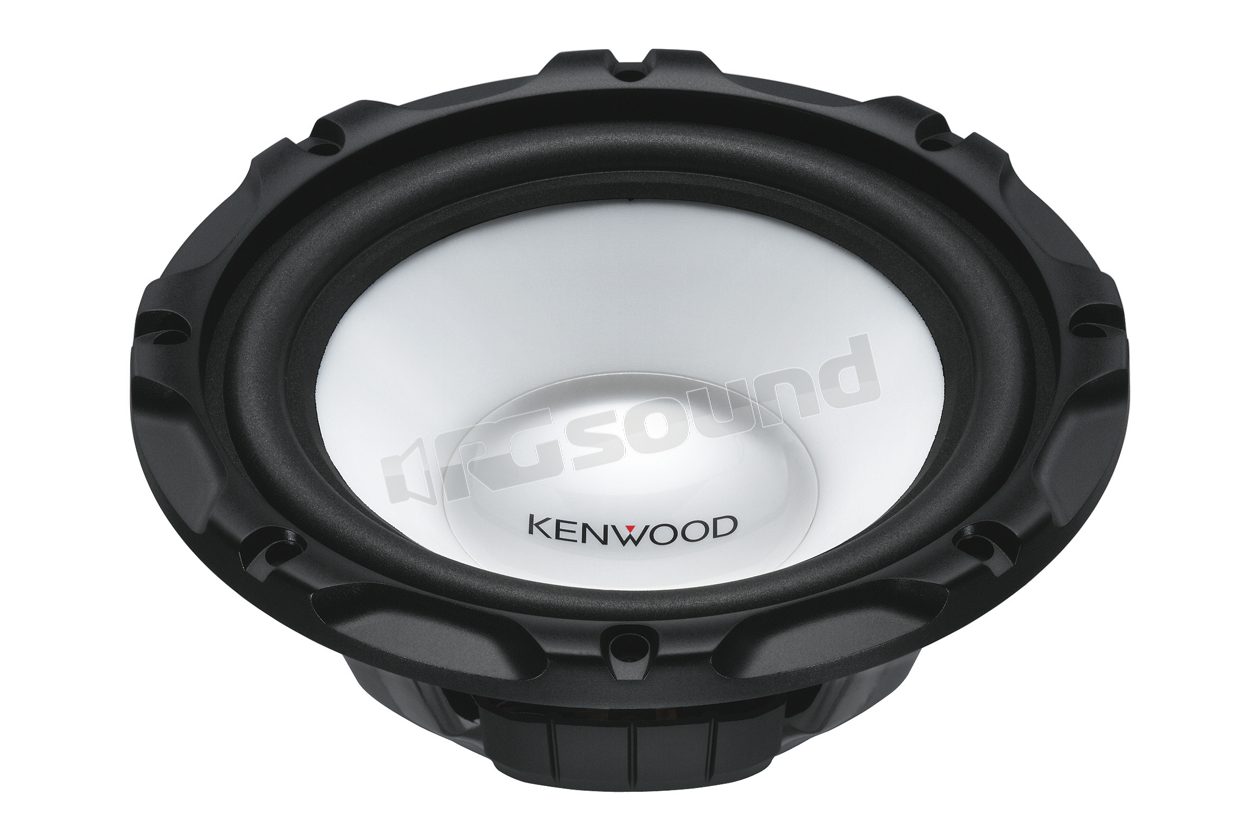

KFC-W3000LS 30cm slave subwoofer with illuminated cone

Kenwood

Discontinued

Your price:
€ 139,20
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
28 - 800 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
5,6 Kg
Installation Depth
150 mm
Woofer Material
p.p

KFC-W3000LS - 30cm illuminated cone subwoofer. Slave Unit (to be connected to the KFC-W3000L)


Speaker Features

Speaker typeSubwoofer
Peak input power800W
Input power200W
Speaker size300mm
Cone design typeInjection molded P.P. cone
Magnet typeFerrite
TerminalsSliding
Silver-plated terminalsYes
Magnet coverNo
GasketOne-way (fixed)
Installation possibilityClosed box / Bass Reflex
Lighting type. Music ONDemo Mode, Programmed, Music, Random
Lighting type. Music OFFDemo Mode, Programmed, Music, Random
Box with electrical circuitYes

Technical Specifications

Peak input power800W
Maximum input power400W
Input power200W
Woofer cone materialInjection molded P.P. cone
Spider BasketSteel
Speaker SurroundUrethane
Sensitivity90dB/W/m
Frequency response28Hz ~ 800Hz
Speaker impedance4 Ω
Dimensions (W x H x D)328 x 328 x 171mm
Mounting depth150mm
Mounting hole diameter282mm
Spider weight3650gr
Gross weight5600gr
Magnet weight740gr

Subwoofer Parameters

Nominal impedance (Z)4 ohm
DC resistance (Re)3.4 ohm
Resonance frequency (FSO)30.9Hz
Mechanical Q factor (QMS)9.59
Electrical Q factor (QES)0.77
Total Q factor (QTS)0.71
Coil inductance (LBM)0.56mH
Force factor (BL)9.53T/m
Peak excursion4.6mm
Maximum excursion (MMS)105.6gr.
Acoustic volume compatibility (VAS)97.75liter
Piston area (SD)0.052m²
Cone surface5190cc
Closed box volume35.4liter
Box dimensions375 x 370 x 355mm ( 19mm thick MDF)(W x H x D)
Bass Reflex volume42.5liter
Bass Reflex box dimensions507 x 360 x 320mm ( 19mm thick MDF)(W x H x D)
Port hole dimensions35 x 322 x 480mm

Included Accessories

Connection cable100 cm
Screws (Parker type)Ø 4 x 35mm, 8 pieces
Discontinued
