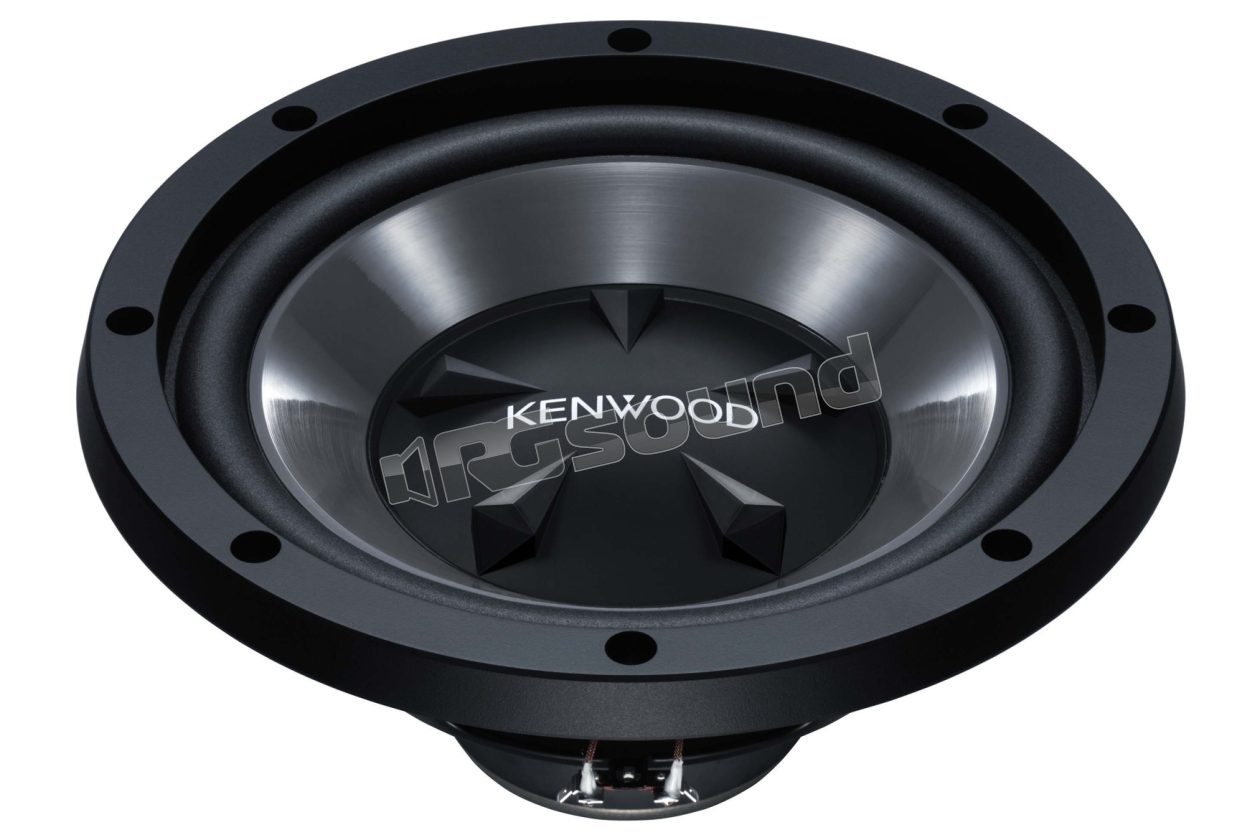

KFC-W112S Compact 300mm subwoofer

Kenwood

Discontinued

Your price:
€ 48,90
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
28 - 800 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
4,4 Kg
Installation Depth
138,6 mm
Woofer Material
P.P. a iniezione

KFC-W112S - Compact 300mm subwoofer Component series

Main Features KFC-W112S

Woofer with 30mm injection molded P.P. cone
Maximum input power 800Watts
Silver plated terminals
Wide profile urethane surround

Speakers Features KFC-W112S

Speaker typeSubwoofer
Peak input power800W
Input power200W
Speaker size300mm
Magnet typeFerrite
TerminalsSilver plated screws, sliding
Magnet coverNo
GasketOne-way (fixed)
Installation possibilitySealed enclosure / Bass Reflex

Technical Specifications KFC-W112S

Peak input power800W
Maximum input power400W
Input power200W
Woofer cone materialInjection molded P.P. cone
Spider BasketSteel
Speaker SurroundUrethane
Sensitivity90dB/W/m
Frequency response28Hz ~ 800Hz
Subwoofer impedance4Ω x 1
Dimensions (W x H x D)328 x 328 x 159.8mm
Mounting depth138.6mm
Mounting hole diameter274mm
Spider weight3270gr
Gross weight4400gr
Magnet weight748gr

Subwoofer Parameters KFC-W112S

Nominal impedance (Z)4 ohm
DC resistance (Re)3.7 ohm
Resonance frequency (FSO)28Hz
Mechanical Q factor (QMS)9.49
Electrical Q factor (QES)0.48
Total Q factor (QTS)0.457
Coil inductance (LBM)2mH
Coil diameter50mm
Force factor (BL)12.8T/m
Peak excursion4mm
Maximum excursion (MMS)109.9gr.
Acoustic volume compatibility (VAS)95.4liter
Piston area (SD)0.048m²
Cone surface3511cc
Sealed enclosure volume35.4liter
Sealed enclosure dimensions380 x 375 x 360mm ( 21mm thick MDF)(W x H x D)
Bass Reflex volume42.5liter
Bass Reflex box dimensions380 x 440 x 360mm ( 21mm thick MDF)(W x H x D)
Port diameter/length (Bass Reflex enclosure)Ø 76mm / 178mm

Included Accessories KFC-W112S

Screws (Parker type)Ø 4 x 25mm, 8 pieces
