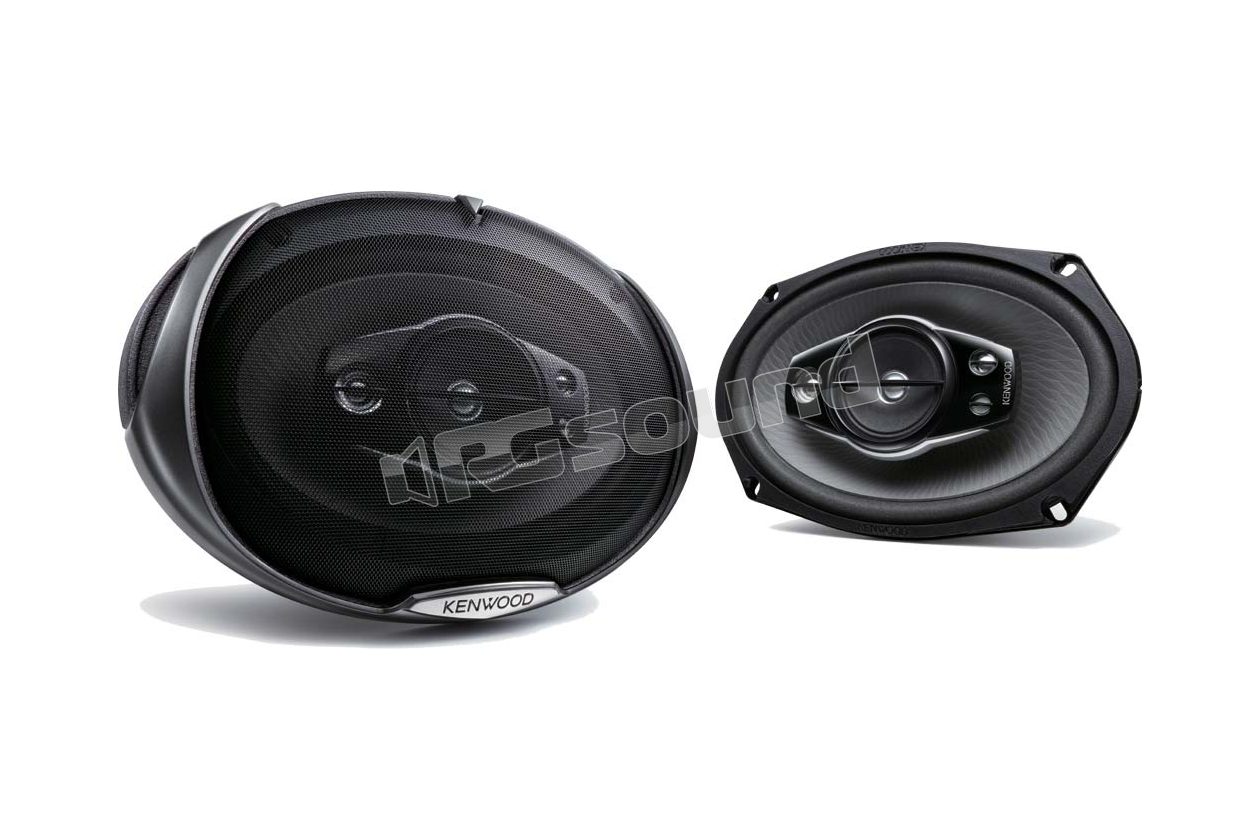

KFC-S6974 6x9 3-way coaxial speakers

Kenwood

Discontinued

Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
66Hz ~ 22000Hz Hertz
MAX Power
400 Watt
RMS Power
100 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Polipropilene
Tweeter Material
P.E.I.

Kenwood KFC-S6974 pair of 6"x9" coaxial speakers, 3-way high performance.

KFC-S6974 new hybrid cone in polypropylene with diamond matrix pattern.

The speakers of the Package, X and S series feature a hybrid carbon PP cone with diamond matrix pattern, which ensures natural sound reproduction across all ranges. The carbon-polypropylene combination increases rigidity and lightness. The diamond-shaped texture impressed to the edge of the speaker helps reduce surface waves on the diaphragm, decrease transverse vibrations and suppress sound distortion. The diamond matrix pattern also increases rigidity and improves the movement of the voice coil response, thus offering dynamic and clear sound reproduction.

KFC-S6974 - Main Features

3-way 3 speaker System
6"x9" PP Mica cone with fiber structure
70 millimeter Midrange, 20 millimeter Tweeter
Image Enhancer IV (KENWOOD Patent since 1987)
400W Peak Input Power


KFC-S6974 - Speaker Features

Speaker System 3-way 3 speaker System
Speaker Type Coaxial
Peak Input Power 400W
Speaker Size 6"x9"
Speaker cone design PP Mica with Fiber Texture
Magnet Type Ferrite
Terminals Slide Type
Installation Capability Door / rear cover
Image Enhancer (KENWOOD Patent since 1987) Yes, 4th generation


KFC-S6974 - Speaker / Woofer Specifications

Peak Input Power 400W
RMS Power (CEA spec) 100 W
Woofer Cone Material PP Cone
Speaker Basket Steel
Speaker Surround Rubber
Sensitivity 89dB/W/m
Frequency Response 66Hz ~ 22000Hz
Speaker Impedance 4Ω
Dimensions (W x H x D) 266 x 194 x 116.4 millimeters
Mounting Depth 78 millimeters
Mounting Hole Diameter 150 x 222 millimeters
Speaker Weight with grille (pcs.) 1390gr
Speaker Weight w/o grille (pcs.) 1210gr
Gross Weight 3400gr
Magnet Weight 277gr


KFC-S6974 - Midrange Speaker Specifications

Cone 70 millimeters
Cone Type Water Resistant Cone
Magnet Type Ferrite


KFC-S6974 - Tweeter Specifications

Cone 20 millimeters
Cone Material PEI Balanced Dome


KFC-S6974 - Accessories

M4x70mm Screw: 8 pieces
M4 Nut: 8 pieces
4 millimeter Lock Nut: 8 pieces
Butyl Rubber
M4x70 Screw: 8 pieces
M4 Washer (8mm): 8 pieces
M4 Washer (10mm): 8 pieces
M4 Spring Washer: 8 pieces
Grille Yes
Speaker Cable 4.5m
Discontinued
