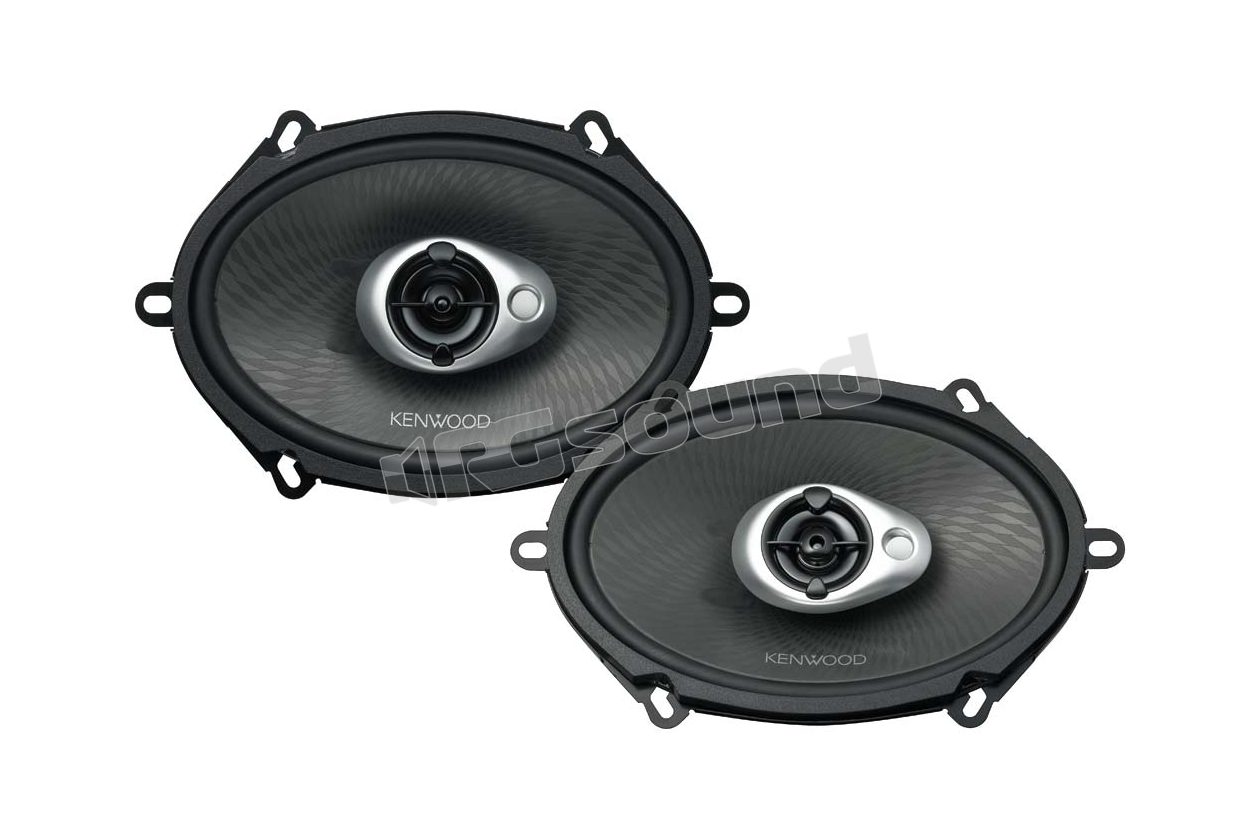

KFC-S5793C 3-way custom fit speaker

Kenwood

Discontinued

Your price:
€ 50,40
Price per pair (VAT included)
Type
Coaxial
Speaker Size
5x7''
Coaxial Type
3-way
Frequency Response
80 - 22000 Hertz
MAX Power
220 Watt
RMS Power
75 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Woofer Material
Cono P.P. a iniezione
Tweeter Material
Ceramica

KFC-S5793C - Custom fit 3-way speaker system, 5"x7"

Main Features

  • 3-way speaker system
  • 5" x 7" polypropylene cone
  • 30mm midrange
  • 10mm tweeter
  • Image Enhancer IV (KENWOOD patent since 1987)
  • Speaker system for mounting in pre-wired installation

Speaker Features
Speaker type 3-way system, 3 speakers
Peak input power 220W
Speaker size 5" x 7"
Cone design type Diamond-curved pattern
Magnet type Ferrite
Terminals Sliding
Image Enhancer (Kenwood Patent since 1987) Yes, 4th generation

Technical Specifications
Peak input power 220W
RMS power 75 W
Woofer cone material Injection-molded P.P. cone
Spider Basket Steel
Speaker Surround Rubber
Sensitivity 87dB/W/m
Frequency response 80Hz ~ 22000Hz
Speaker impedance 4Ω
Dimensions (WxHxD) 220.7 x 138 x 61.2mm
Mounting depth 52mm
Mounting hole diameter 181.6mm x 123.6mm
Speaker weight without grille (1 pc) 622gr
Gross weight 1500gr
Magnet weight 178gr

Midrange Features
Cone size 30mm
Cone type Balanced dome P.E.I.
Magnet type Neodymium

Tweeter Features
Cone size 10mm
Cone material Ceramic

Included Accessories
Screws (Parker type) Ø 4 x 30mm, 8 pieces
Nuts φ 4, 8 pieces
Collar 8 pieces
Speaker cables 0.3m
