KFC-S1794 165mm 3-way

Kenwood

Discontinued

Your price:
€ 38,80
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
3-way

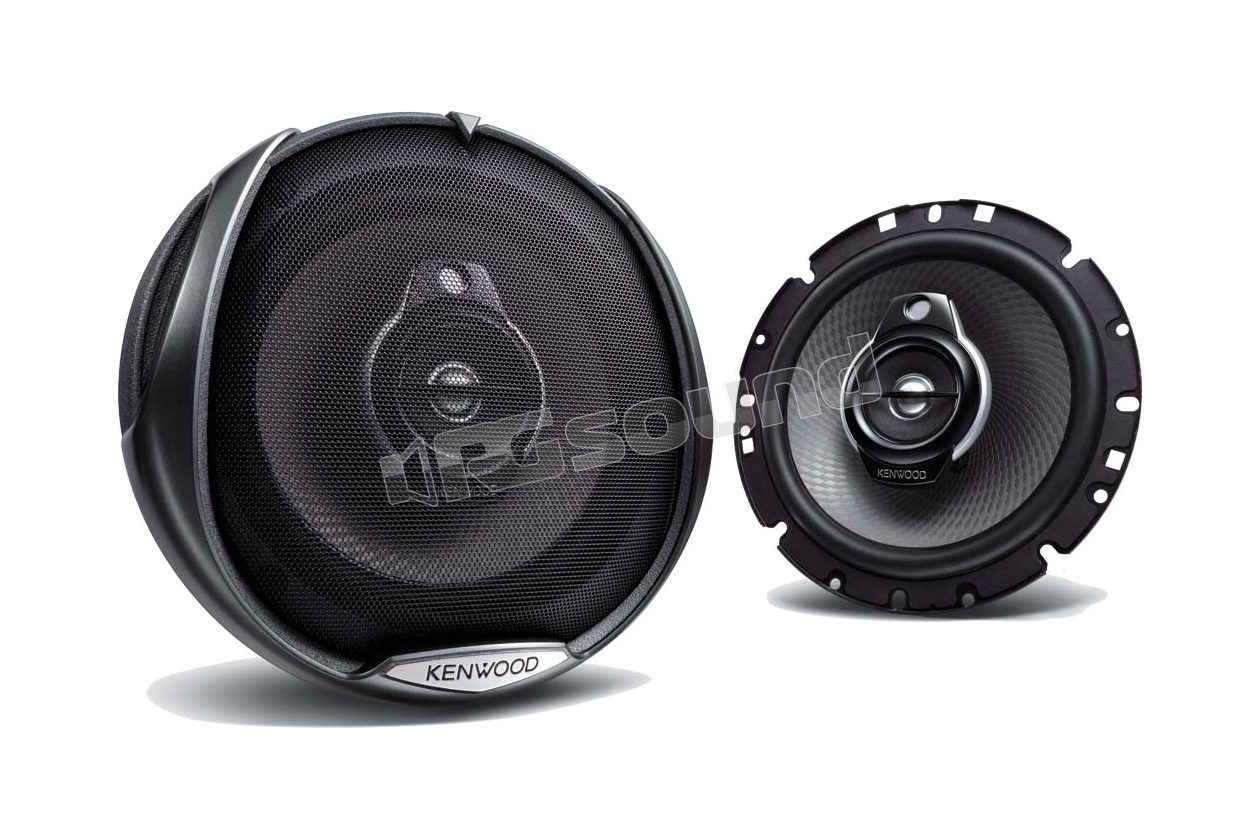

Pair of 16.5cm 3-way coaxial speakers.

New hybrid polypropylene cone with diamond matrix pattern.
Speakers from the Package, X and S series feature a hybrid carbon PP cone with diamond matrix pattern, which ensures natural sound reproduction across all ranges. The carbon-polypropylene combination increases rigidity and lightness. The diamond-shaped texture impressed to the edge of the speaker helps reduce surface waves on the diaphragm, decrease lateral vibrations and suppress sound distortion. The diamond matrix pattern also increases rigidity and improves the movement of the voice coil response, thus offering dynamic and clear sound reproduction.

Main Features

3-way system, 3 speakers
Mica P.P. cone with fiber-like texture, 17cm
Balanced dome tweeter in P.E.I. 30mm
Ceramic tweeter 12mm
Image Enhancer IV (KENWOOD patent since 1987)
Peak power 250Watts


Speaker Features

Speaker type3-way system, 3 speakers
Speaker typeCoaxial
Peak power input250W
Speaker size170mm
Cone design typeDiamond-curved pattern
Magnet typeFerrite
TerminalsSliding
Installation possibilityDoor, rear floor
Image Enhancer (Kenwood Patent since 1987)Yes, 4th generation


Technical Specifications

Peak power input250W
RMS power70 W
Woofer cone materialMica P.P. cone with fiber-like texture
Spider BasketSteel
Speaker SurroundRubber
Sensitivity88dB/W/m
Frequency response63Hz ~ 22000Hz
Speaker impedance4Ω
Dimensions (W x H x D)165 x 165 x 89.5mm
Mounting depth60.5mm
Mounting hole diameter140mm
Speaker weight with grille (1 pc)843gr
Speaker weight without grille (1 pc)758gr
Gross weight2000gr
Magnet weight220gr


Midrange Features

Cone size40mm
Cone typeWater-resistant cone
Magnet typeFerrite


Tweeter Features

Cone size12mm
Cone materialCeramic


Accessories Included

Screws 4x25mm: 8 pieces
Nuts: 8 pieces
Rubber cover
GrilleYes
Speaker cables0.5m
Discontinued
