KCA08 16.5 cm two-way kit

Ciare

Discontinued

Your price:
€ 263,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
40 - 20.000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
150 Watt
RMS Power
75 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio e cupola in seta

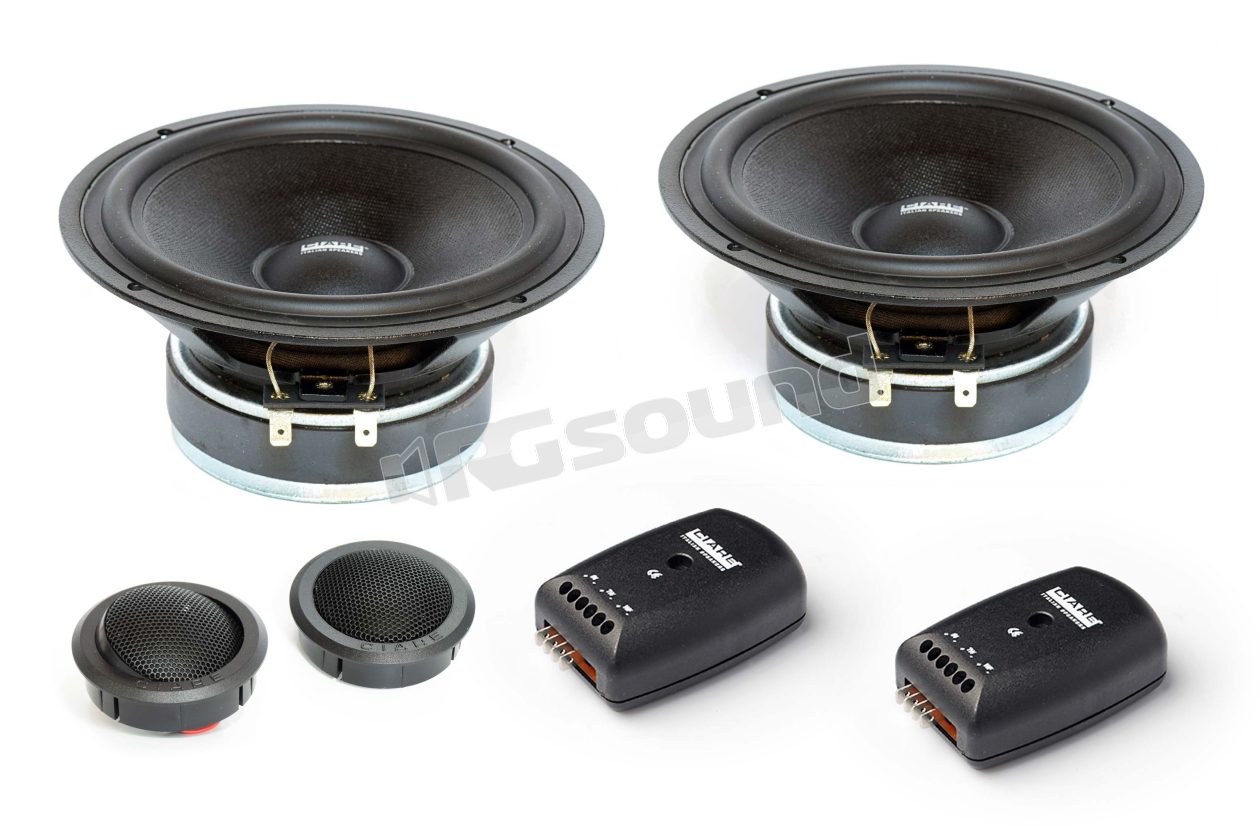

Ciare KCA08 two-way kit composed of a pair of woofers CW169, a pair of tweeters CT250 and a pair of crossovers CF103.

KCA08 Specifications

Nominal power: 75 W

Maximum power: 150 W

Nominal impedance: 4 Ω

Sensitivity (1W/1m): 90 dB

Frequency response: 40 Hz - 20k Hz

Characteristics of individual components:

Ciare CW169 woofer 165mm with dampened cellulose membrane and rubber suspension

  • Max power: 200W
  • Nominal power: 90W
  • Nominal impedance: 4 Ω
  • Diameter: 165mm
  • Mobile coil diameter: 38mm
  • Sensitivity 1W/1m: 91 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 6 dm3
  • Recommended tuning frequency: 75 Hz
  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 6 mm
  • External diameter: 165.5 mm
  • Depth under flange: 73 mm
  • Flange thickness: 7.5 mm
  • Panel hole: 142 mm
  • Number of fixing holes: 4
  • Fixing hole diameter: 5 mm
  • Fixing hole position diameter: 156
  • Weight with single packaging: 2.40 Kg

Ciare CT250tweeter 26mm adjustable, max power 150 W, 4 Ohm. Silk dome and neodymium magnet.

  • Musical power: 150 W
  • Nominal AES power: 75 W
  • Nominal diameter: 1''-25mm
  • Nominal impedance: 4 Ω
  • Mobile coil: 25mm
  • Sensitivity 1W/1m: 91 dB
  • Recommended crossover frequency: 2.500 Hz
  • Frequency range of use: 2.500-20.000 Hz
  • Magnet type: Neodymium
  • Membrane type: Silk
  • Former type: Aluminum
  • Membrane profile: Dome
  • Air gap height: 2 mm
  • External diameter: 54 mm
  • Depth under flange: 14.5 mm
  • Flange thickness: 3 mm
  • Weight with single packaging: 0.11 Kg

CF103 crossover 1 way for tweeter CT 250.

  • Musical power: 200 W
  • Nominal power: 100 W
  • Crossover frequency: 3000 / / Hz
  • Slope: 12 - - dB/oct
  • Connection type: Faston
  • Dimensions: 90 x 60 x h31 mm
  • Unit of sale: 2
  • Number of pieces master packaging: 6
  • Master packaging dimensions: 145 x 270 x h270
  • Weight: 0.20
  • Single packaging dimensions: 125 x 125 x h80 mm
Discontinued
