KCA01 16.5cm two-way kit

Ciare

Discontinued

Your price:
€ 220,10
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
50 -20.000 Hertz
Woofer Size
165 mm
Tweeter Size
26 millimetri
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio e cupola in seta

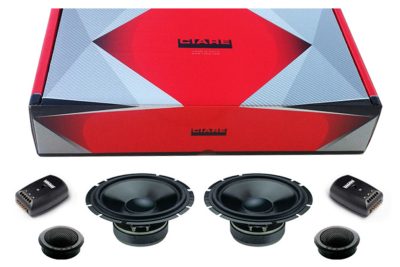

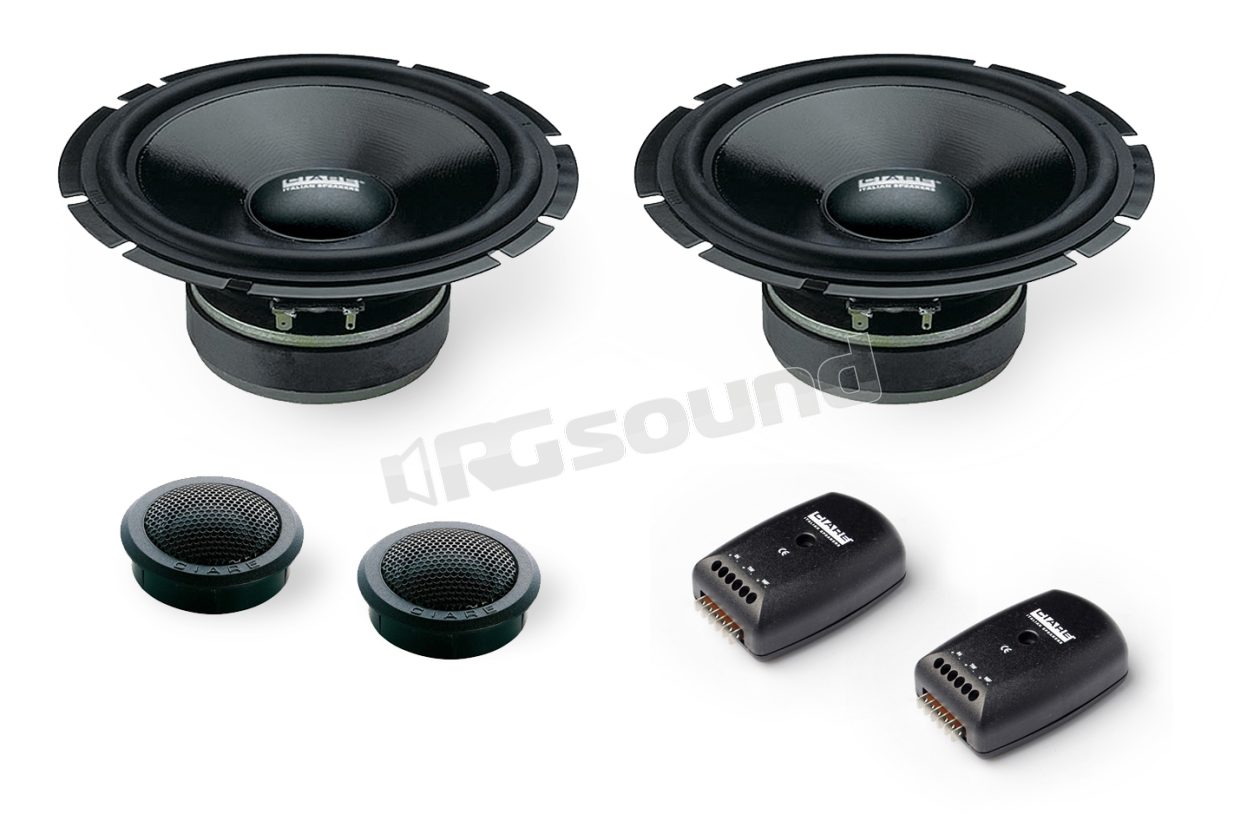

Ciare KCA01 two-way kit composed of a pair of CW170 woofers, a pair of CT250 tweeters and a pair of CF221 crossovers.

KCA01 Specifications

Nominal power: 50 W

Maximum power: 100 W

Nominal impedance: 4 Ω

Sensitivity (1W/1m): 90 dB

Frequency response: 50 Hz – 20k Hz

Characteristics of individual components:

Ciare CW170 woofer 165mm with damped cellulose membrane and rubber suspension.

  • Max power: 150W
  • Nominal power: 60W
  • Nominal impedance: 4Ω
  • Diameter: 165mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 90 dB
  • Recommended load type: Sealed enclosure
  • Recommended reflex volume: 16 dm3
  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 5 mm
  • Outside diameter: 165 mm
  • Depth under flange: 64 mm
  • Flange thickness: 6 mm
  • Panel mounting hole: 142 mm
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 156
  • Weight with single packaging: 1 Kg

Ciare CT250 26mm adjustable tweeter, max power 150 W, 4 Ohm. Silk dome and neodymium magnet.

  • Musical power: 150 W
  • Nominal AES power: 75 W
  • Nominal diameter: 1''-25mm
  • Nominal impedance: 4Ω
  • Voice coil: 25mm
  • Sensitivity 1W/1m: 91 dB
  • Recommended crossover frequency: 2.500 Hz
  • Frequency range of use: 2.500-20.000 Hz
  • Magnet type: Neodymium
  • Membrane type: Silk
  • Former type: Aluminum
  • Membrane profile: Dome
  • Air gap height: 2 mm
  • Outside diameter: 54 mm
  • Depth under flange: 14.5 mm
  • Flange thickness: 3 mm
  • Weight with single packaging: 0.11 Kg

Ciare CF221 pair of 2-way crossovers.

  • Maximum power: 100W
  • Nominal power: 50 W
  • Crossover frequency: 3000 Hz
  • Slope: 12/12 dB/oct
  • Nominal impedance: 4 Ohm
  • Filter in kit: Yes
  • Number of ways: 2
  • Dimensions: 90 x 60 mm
Discontinued
