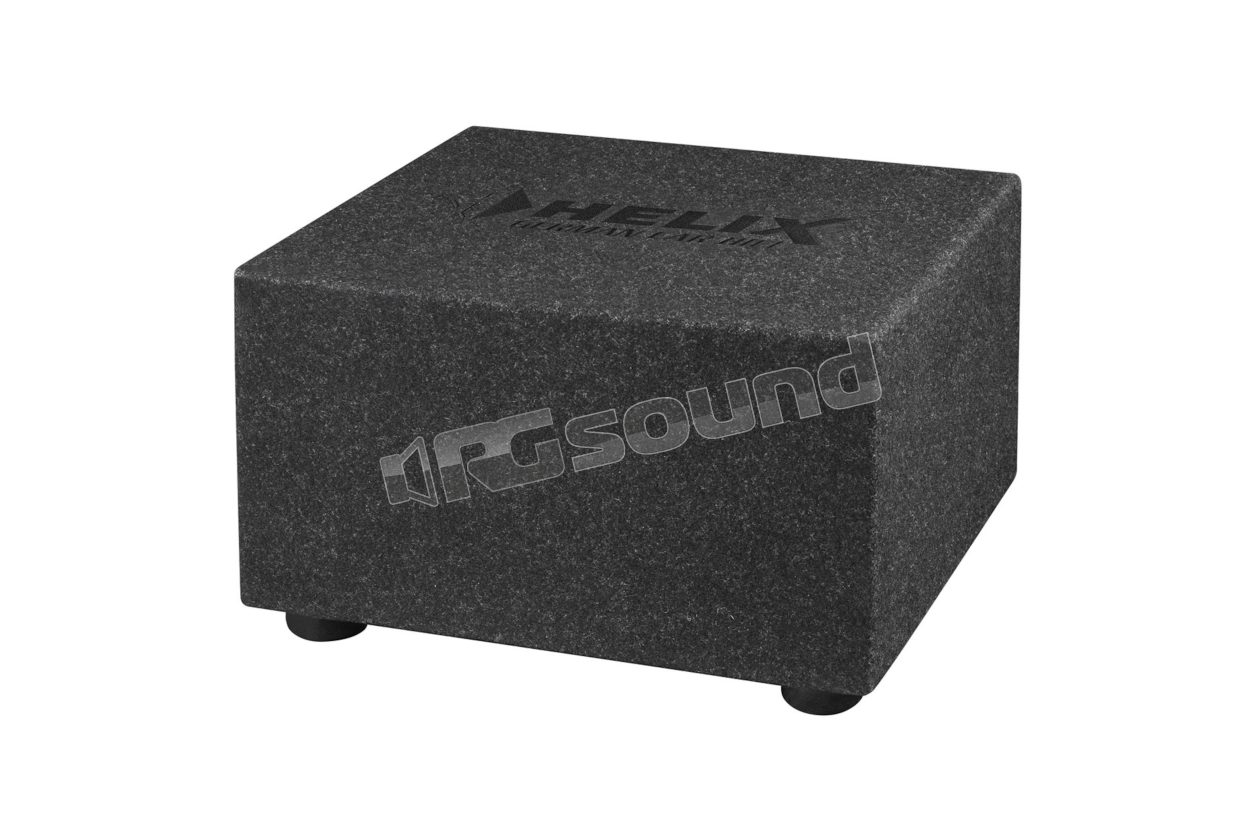

K 8E.2 8" dual voice coil 2 ohm subwoofer with Bass-Reflex enclosure

Helix
Your price:
€ 225,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
86 dB
Impedance
2 + 2 Ohm
Enclosure Size
310 x 285 x 184 mm
Enclosure Type
Sealed Enclosure

HELIX K 8E.2 Subwoofer 8" dual voice coil 2ohm with Bass-Reflex cabinet

The most compact enclosure subwoofer in the K series. Despite its reduced dimensions, the K 8E.2 is a true specialist in deep bass that can easily compete with much larger "specific" models in terms of maximum sound pressure level.

The feet of the K 8E.2 cabinet have a dual purpose. On one hand, they are part of the construction of a downfire subwoofer and create a defined distance from the floor of the mounting surface, which is then cleverly used for reflection. At the same time, thanks to their velcro inserts, they reliably secure the subwoofer on carpets to prevent slipping, so in many cases no additional fastening is necessary.

An extremely hard cone in hand-cut paper fibers, connected to a heavy-duty 50 mm dual voice coil, effortlessly converts amplifier power without compression effects into maximum power, without neglecting acoustic details and sound precision. The dual voice coil design offers greater flexibility in choosing the appropriate power amplifier. Whether 1 x 4 Ohm, 2 x 2 Ohm or 1 x 1 Ohm: this "guarantor of deep bass" makes any configuration possible.

K 8E.2 Features

  • 8" / 200 mm high excursion woofer with hand-carved paper cone and dual voice coil
  • Downfire container technology for perfect speaker protection and ideal bass distribution in the vehicle
  • Robust carpet surface with embroidered HELIX logo
  • Pluggable screw terminal for quick and secure installation or removal
  • Voice coil impedance configurable via connection terminal - 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
  • Compact enclosure dimensions

1 x subwoofer with HELIX K 8E.2 Downfire enclosure 1 technical datasheet

HELIX K 8E.2 Technical Specifications

  • RMS / max. Power P 300 / 600 Watt
  • Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
  • Maximum linear excursion Xmax +/- 8.0 mm
  • Port tuning frequency Fb 43 Hz
  • Sensitivity 1 W / 1 m SPL 86 dB
  • Dimensions (H x W x D) 184 x 310 x 285 mm / 7.2 x 12.2 x 11.2
  • Recommended DSP settings High-pass filter "self-defined" with cutoff frequency of 44 Hz and Q = 1.6; additional EQ filter 115 Hz / Q = 0.9 / -3.5 dB
