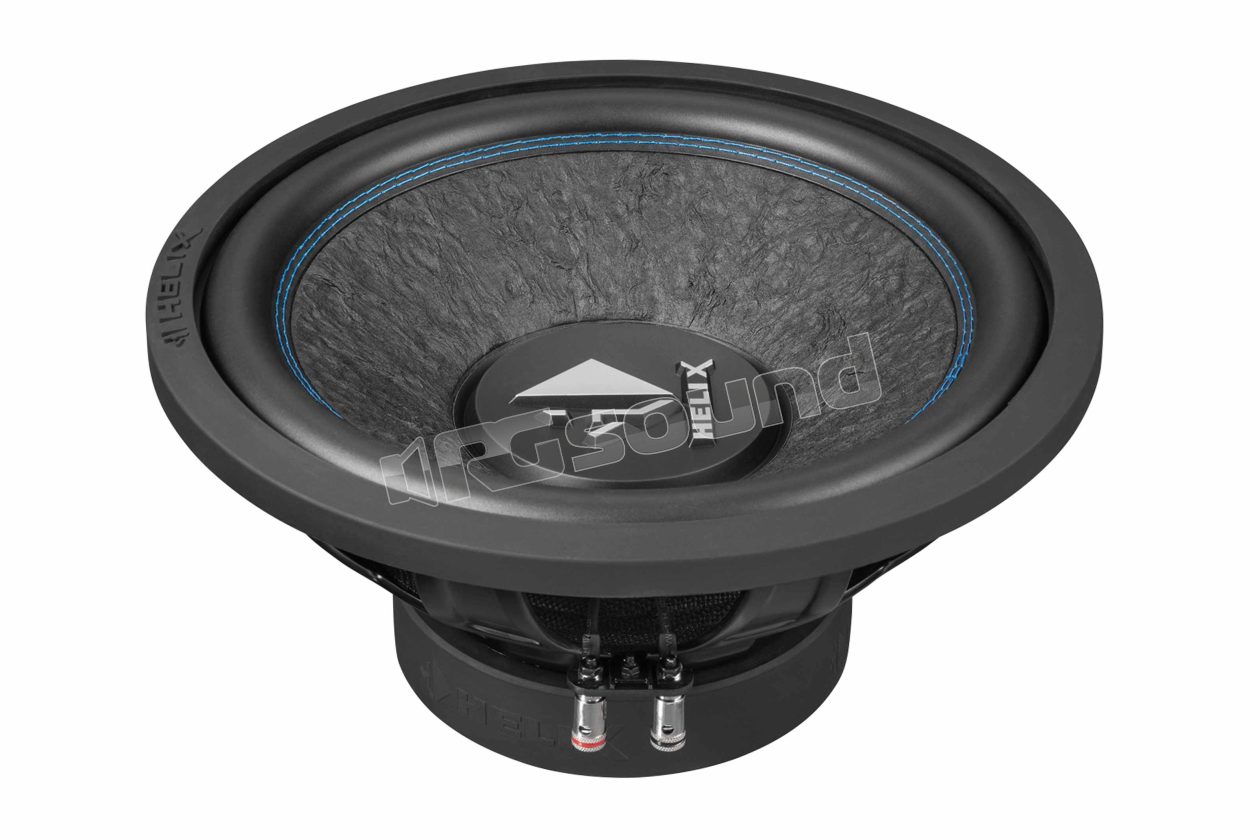

K 12W 30cm dual voice coil 2 Ohm subwoofer

Helix

Discontinued

Your price:
€ 206,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
90 dB
Impedance
2 + 2 Ohm
Installation Depth
144 mm
Woofer Material
Cellulosa trattata

Helix K 12W 30cm Subwoofer dual coil 2 Ohm

30cm subwoofer by Audiotec Fischer belonging to the Helix product line, characterized by an exceptional quality-to-price ratio. From a technical point of view, K10W is absolutely identical to the boxed subwoofers of the K series. Just take a look at the parameters to realize that this is a product designed to guarantee the user maximum customization to create a system that has their preferred sound characteristics. To be safe, you can simply opt for the same net volume and the same tuning frequency of the ports used in our Subwoofer K 10E and K 12E, renowned for their exceptional performance in terms of bass.

Scheda tecnica

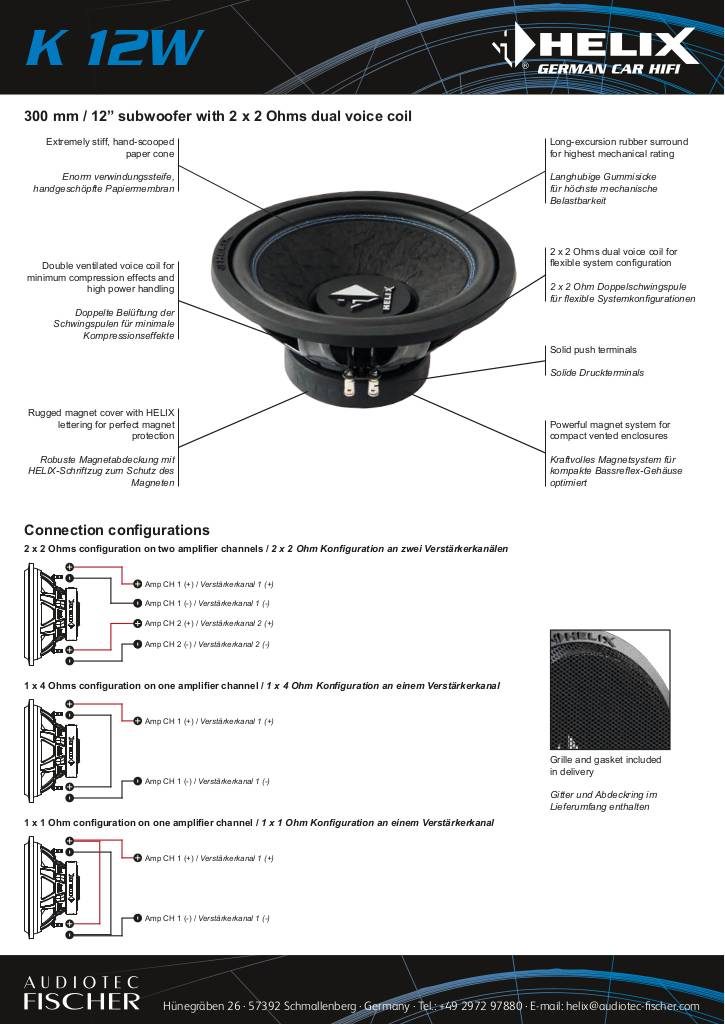

n-20190507103030-db-helix-k-12w.pdf

Helix K 12W Technical Specifications

  • Extremely rigid paper cone, hand-worked
  • Dual ventilated coil for minimal compression effects and high power
  • Long-throw rubber surround for maximum mechanical resistance
  • Very long linear excursion
  • Dual coil 2 x 2 Ohm for flexible system configuration
  • Solid push terminals
  • Powerful magnet system for compact ventilated enclosures
  • Robust magnetic cover with HELIX lettering for perfect magnet protection
  • Grille and gasket included in delivery
  • Nominal impedance 2 + 2 Ohm
  • Sensitivity 1W/1m 88 dB
  • Voice coil diameter 50.8 mm
  • Nominal power 300 W
  • Maximum power 600 W
