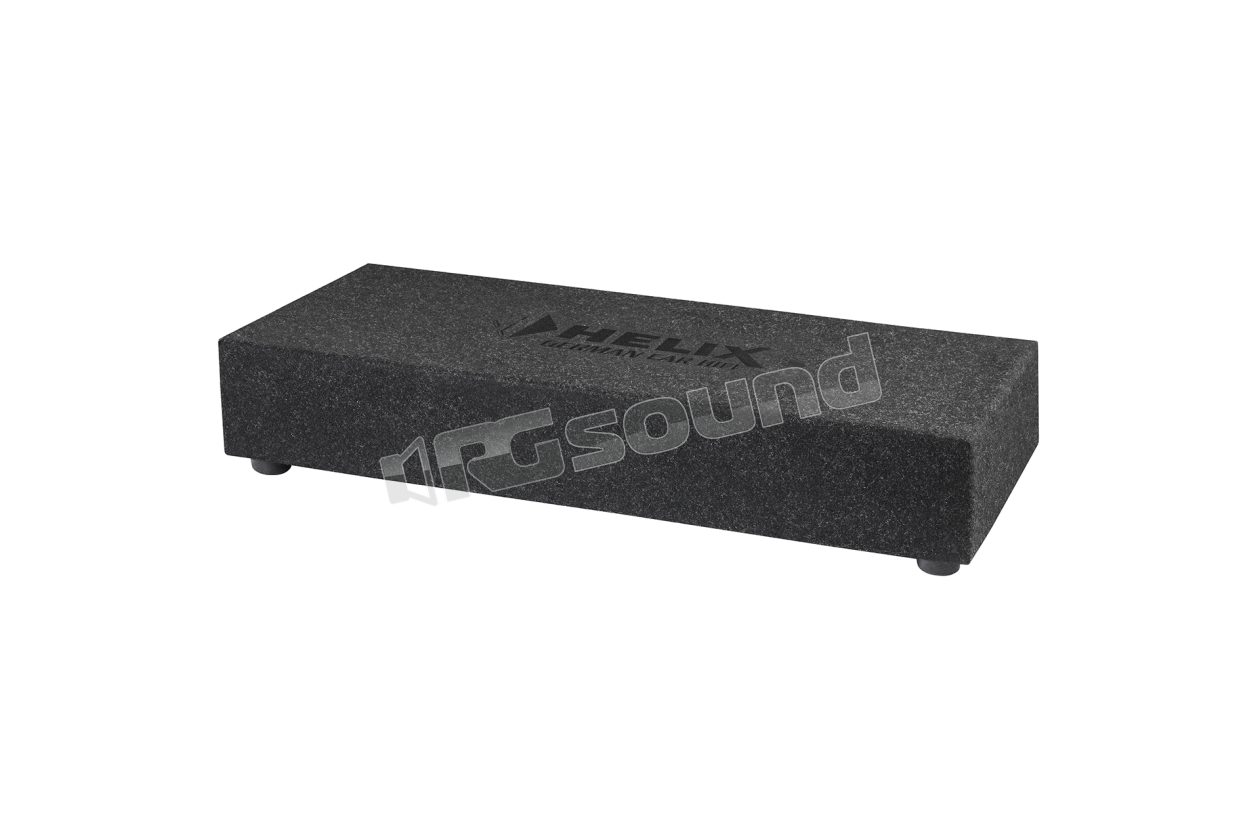

K 10SE.2 25 cm / 10" downfire enclosure Subwoofer 2 x 2 Ohm

Helix

Discontinued

Your price:
€ 300,00
Price per single item (VAT included)
Type
Subwoofer in enclosure
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
88 dB
Impedance
2 + 2 Ohm
Enclosure Size
132 x 725 x 350 mm
Enclosure Type
Sealed Enclosure

HELIX K 10SE.2 Downfire enclosure 25 cm / 10" Subwoofer 2 x 2 Ohm


Despite its extraordinarily low and compact design, this representative of our K series of subwoofers naturally also offers bass performance that can easily compete with conventional and larger "congeners". Thanks to its special design, this woofer is particularly suitable for hidden and space-saving installation concepts, such as in the double load floor of the vehicle.

Extremely flat cabinets require sophisticated design details to avoid unwanted cabinet vibrations. In the case of the K 10SE.2, the magnet system is screwed to the rear panel of the cabinet as additional reinforcement. The extraordinarily rigid and torsion-free sandwich paper cone, connected to the heavy-duty dual voice coil, not only easily and without compression effects converts amplifier power into sound pressure loads, but also stands out sonically for its subtle impact.

The feet of the K 10SE.2 enclosure have a dual purpose. On the one hand, they are part of the construction of a downfire subwoofer and create a defined distance from the floor of the mounting surface, which is then cleverly used for reflection. At the same time, thanks to their velcro inserts, they reliably secure the subwoofer on carpets to prevent it from slipping, so that in many cases no additional fastening is necessary.

K 10SE.2 Features

  • Particularly flat 10" / 250 mm high-excursion woofer with extraordinarily rigid sandwich paper cone
  • Voice coil impedance configurable via connection terminal - 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
  • Downfire enclosure technology for perfect speaker protection and ideal bass dispersion in the vehicle
  • Screw terminal plug connector for quick and secure installation or removal
  • Extremely shallow and space-saving vented enclosure

1 x subwoofer with HELIX K 10SE.2 Downfire enclosure

HELIX K 10SE.2 Technical Specifications

  • RMS / max. Power P 300 / 600 Watt
  • Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
  • Maximum linear excursion Xmax +/- 6.0 mm
  • Port tuning frequency Fb 37 Hz
  • Sensitivity 1 W / 1 m SPL 88 dB
  • Dimensions (H x W x D) 132 x 725 x 350 mm / 5.2 x 28.5 x 13.8"
  • Recommended DSP settings high-pass filter "auto-defined" with cutoff frequency of 37 Hz and Q = 1.2 additional EQ filter 95 Hz / Q = 0.7 / -3 dB
Discontinued
