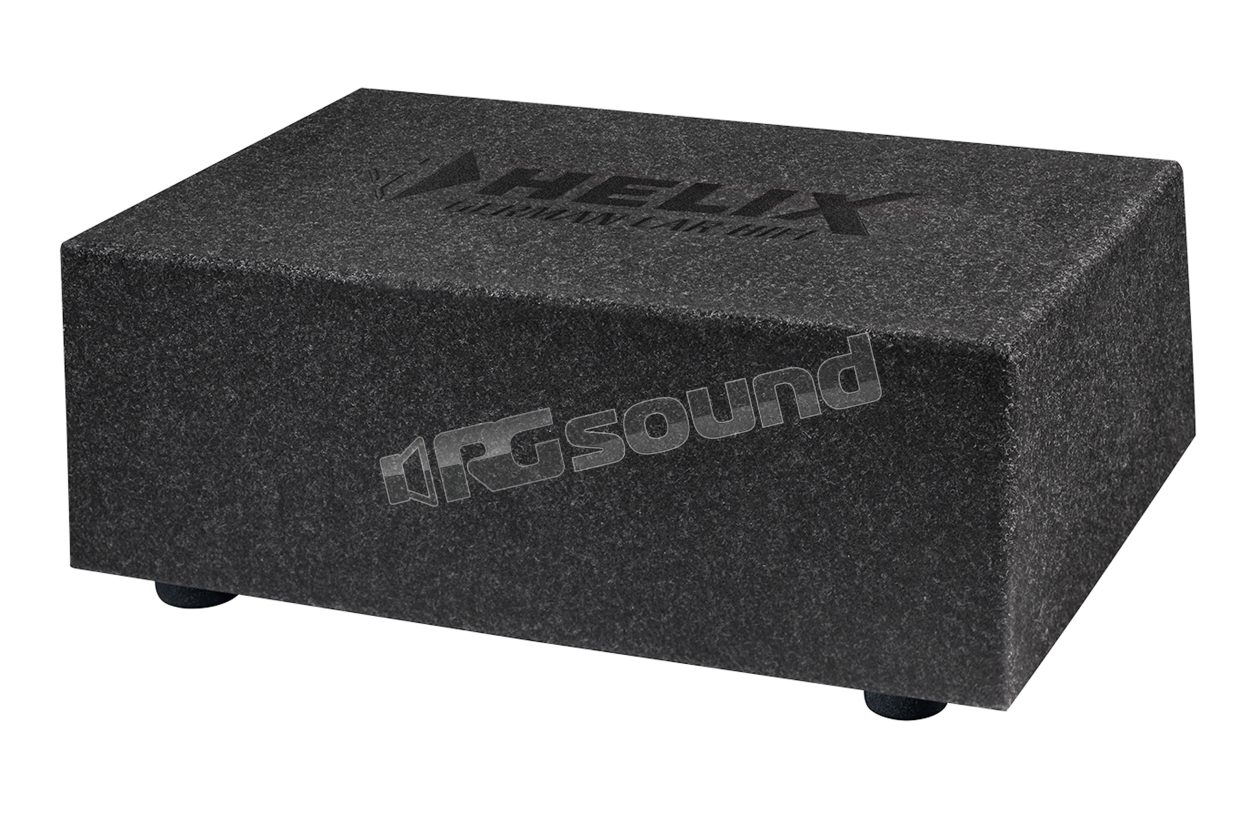

K 10E.2 25cm high-excursion subwoofer in a vented enclosure

Helix
Your price:
€ 300,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
89 dB
Impedance
2 + 2 Ohm
Enclosure Size
470 x 375 x 187 mm
Enclosure Type
Reflex Enclosure

Helix K 10E.2 Subwoofer 25cm high excursion in vented enclosure covered with carpet and embroidered logo

Compact in size but enormous in sound. The K 10E.2 subwoofer design is aimed at using the floor as a reflecting surface. It also allows a flatter design so the woofer can be easily stored in the trunk to save space.

Solid cone like a rock made with hand-crafted paper combined with heavy-duty voice coils that easily transform your amplifier's power into sound pressure loads without neglecting either acoustic detail or sound precision. The dual voice coil design offers greater flexibility in choosing an appropriate power amplifier. It makes any configuration easily possible: 1 x 4 Ohm, 2 x 2 Ohm, or 1 x 1 Ohm.

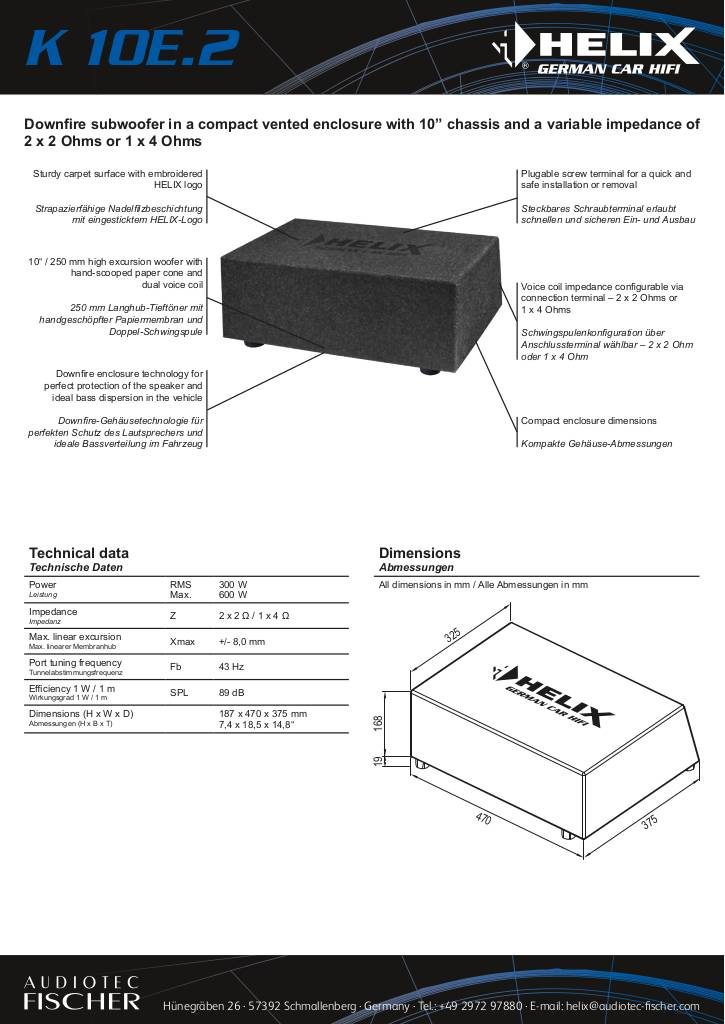

Scheda tecnica

n-20221118151732-db-helix-k-10e-2-210x297mm-02-03-2021-web.pdf

Helix K 10E.2 Technical Specifications

  • RMS / max. Power 300 / 600 Watt
  • Impedance 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
  • Maximum linear excursion Xmax +/- 8.0 mm
  • Port tuning frequency Fb 43 Hz
  • Sensitivity 1 W/1 m SPL 89 dB
  • Dimensions (H x W x D) 187 x 470 x 375 mm / 7.4 x 18.5 x 14.8"

Recommended DSP Settings

  • High-pass filter "self-defined" recommended with cutoff frequency of 37 Hz and Q = 1.5; additional EQ filter 115 Hz / Q = 0.7 / -2 dB
€ 300,00 Price incl. VAT
