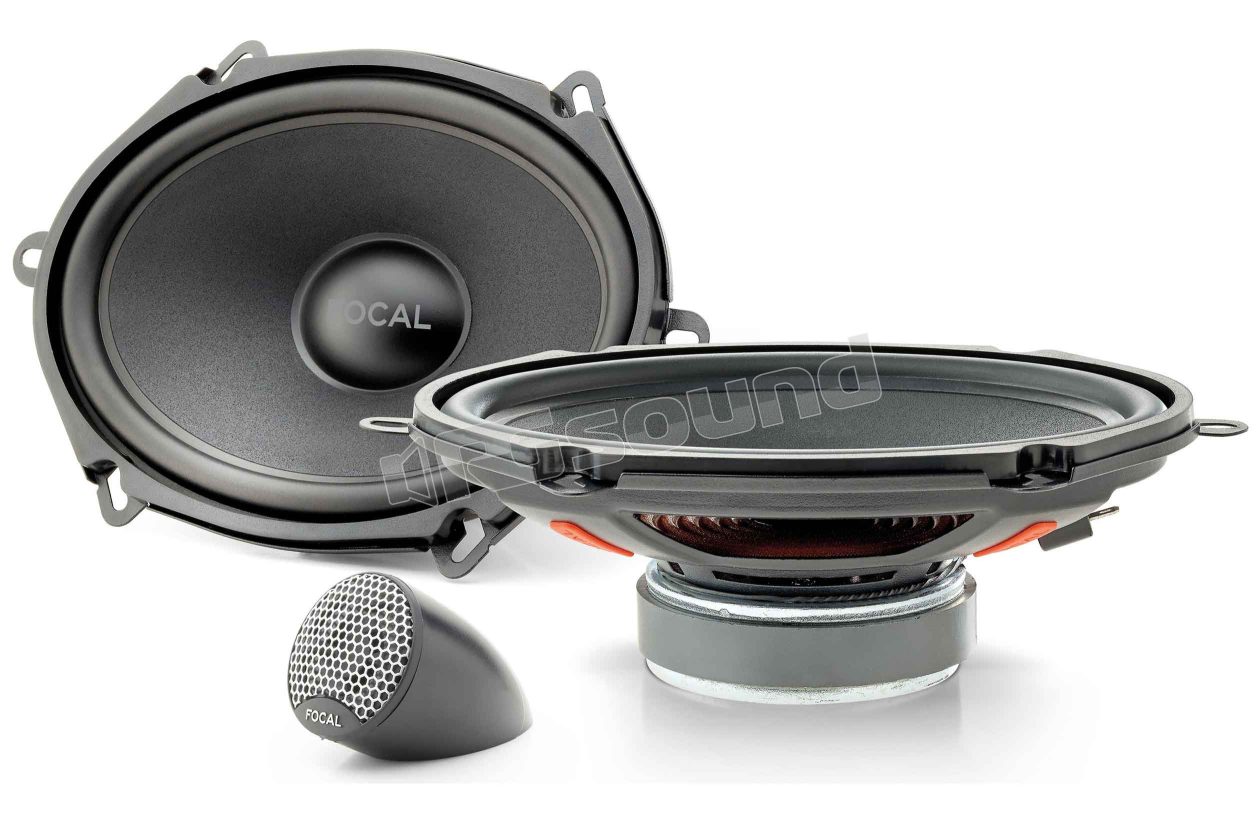

ISU 570 2-way speaker system with 5x7'' woofer

Focal

Discontinued

Type
2-way separate kit
Frequency Response
60 - 21.000 Hertz
Woofer Size
130x180 mm
Tweeter Size
40 millimetri
MAX Power
140 Watt
RMS Power
70 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Tweeter Material
Cupola in Alluminio e Magnesio

Focal ISU 570 two-way kit with 5x7" woofer compact dimensions and reduced installation depth

ISU 570 is an easy-to-mount kit from the new Universal Series and equipped with technical innovations and new features, including the new inverted dome tweeter in aluminum and magnesium for even more detailed treble reproduction (two types of support included). New external design designed for optimal integration and a more elegant look.

Thanks to high sensitivity, dynamics and sound neutrality, you get excellent improvement over the car's original speakers. Reduced mounting depth (2-21/64″ - 59.3 mm), speaker grilles excluded.

Focal ISU 570 technical specifications

Woofer diameter: 5"x7" (130 x 180mm)

Voice coil diameter: 1" (25mm)

Max. power: 140W

Nom. power: 70W RMS

Sensitivity (2.83V/1m): 94 dB

Frequency response: 60Hz-21kHz

Integrated crossover: 6dB/oct

Caratteristiche generali

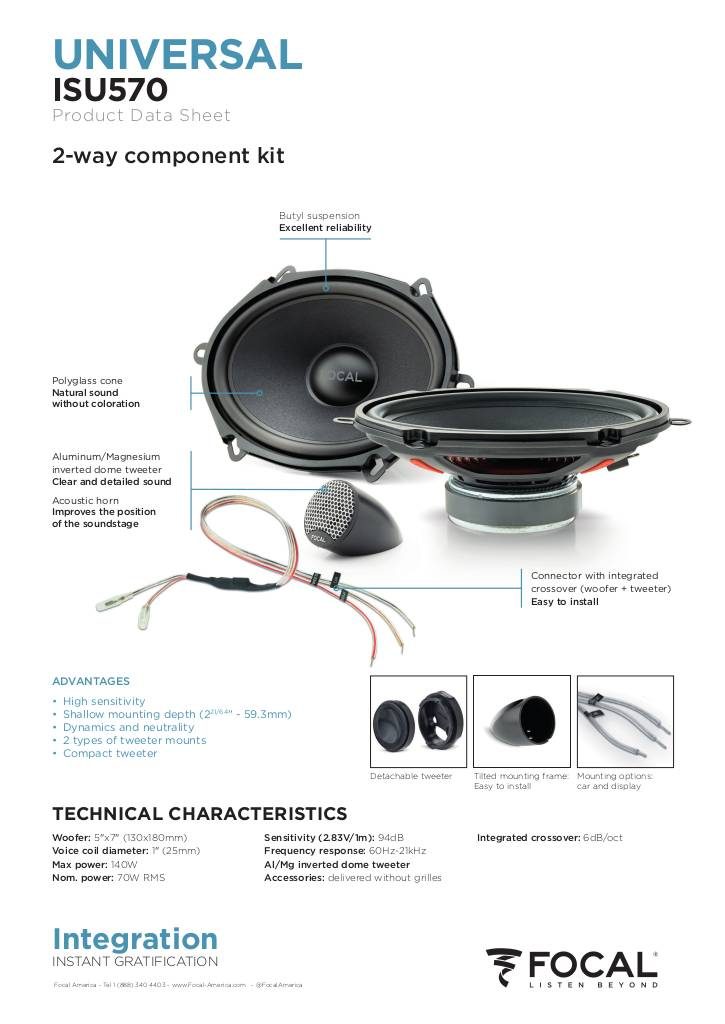

n-20171220144148-fp-universal-isu570-en.pdf

Scheda tecnica

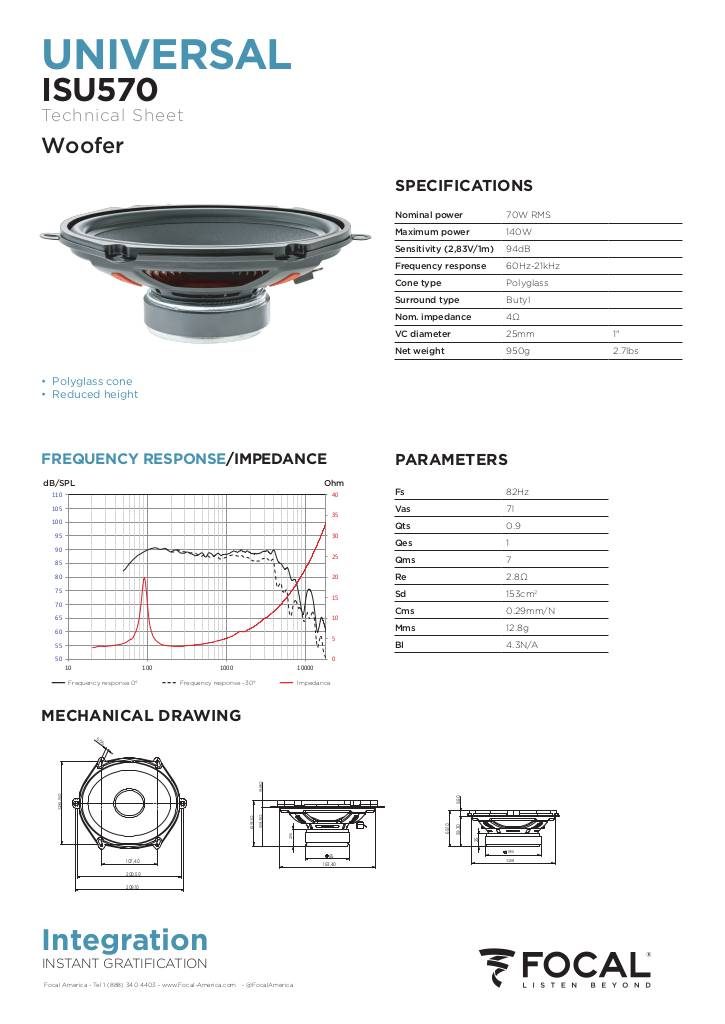

n-20171220144148-ft-universal-isu570.pdf
Discontinued
