ISC 690

Focal

Discontinued

Your price:
€ 119,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
2-way
Frequency Response
55 - 20.000 Hertz
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
93.6 dB
Impedance
4 Ohm
Woofer Material
Polyglass
Tweeter Material
Alluminio

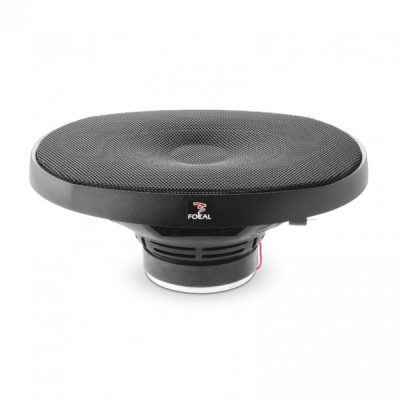

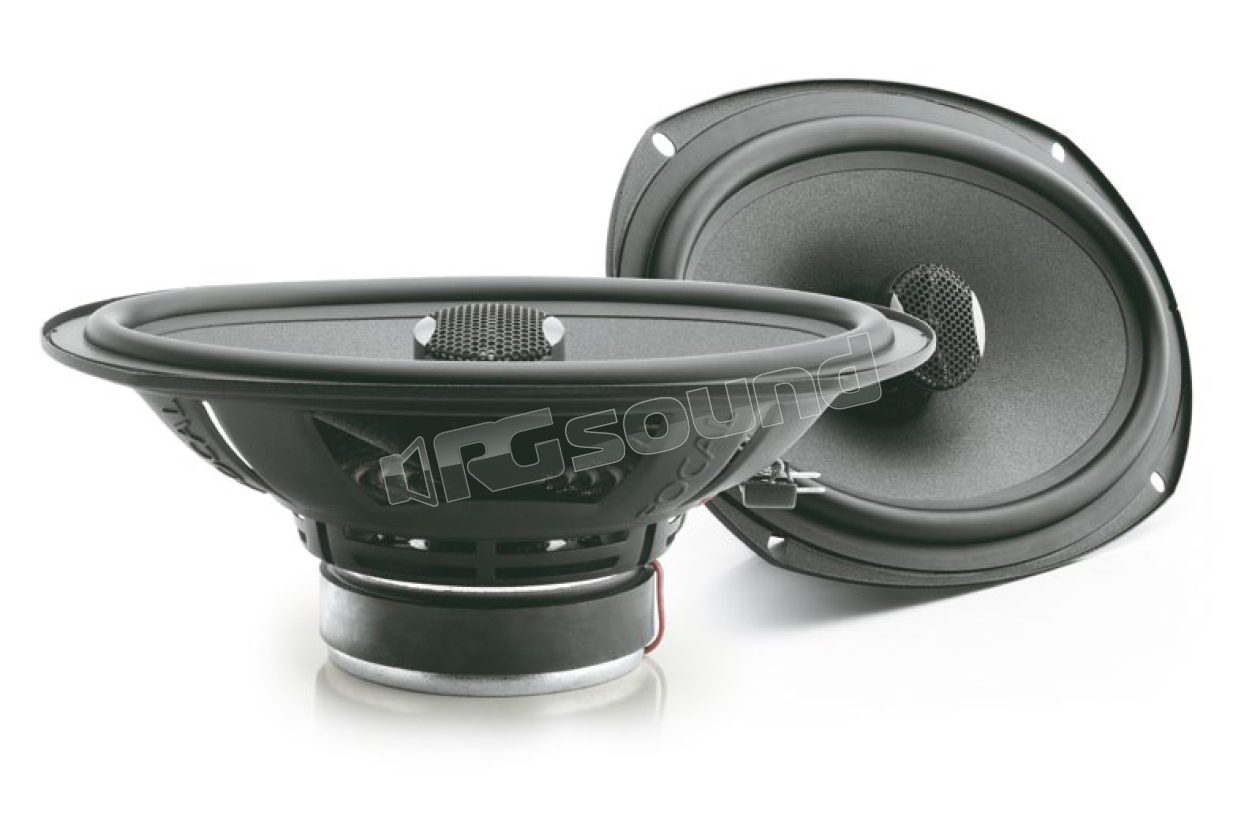

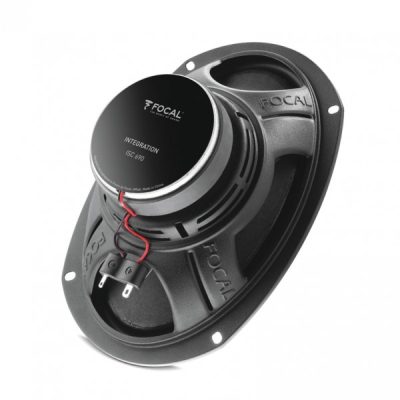

ISC 690 - 6x9" (165x237mm) coaxial set - Integration / Universal Series
  • High sensitivity
  • High harmonic richness
  • Significantly improves sound compared to standard car audio system
  • Dynamics and neutrality
  • Mounting depth: 82.5 mm

ISC 690 Specifications

Cone: Polyglass
Voice-coil diameter: 13/16" (30mm)
Voice-coil height: 07/16" (10.5mm)
Magnet: 39/16" (90mm)
Aluminum inverted dome rotating tweeter
Integrated crossover: 6dB/oct
Max. power: 160W
Nom. power: 80W
Sensitivity (2.83 V/1m): 93.6dB
Impedance: 4Ω
Frequency response: 55Hz-20kHz
Impedance: 4Ω
Supplied with grille

Manuale d'uso

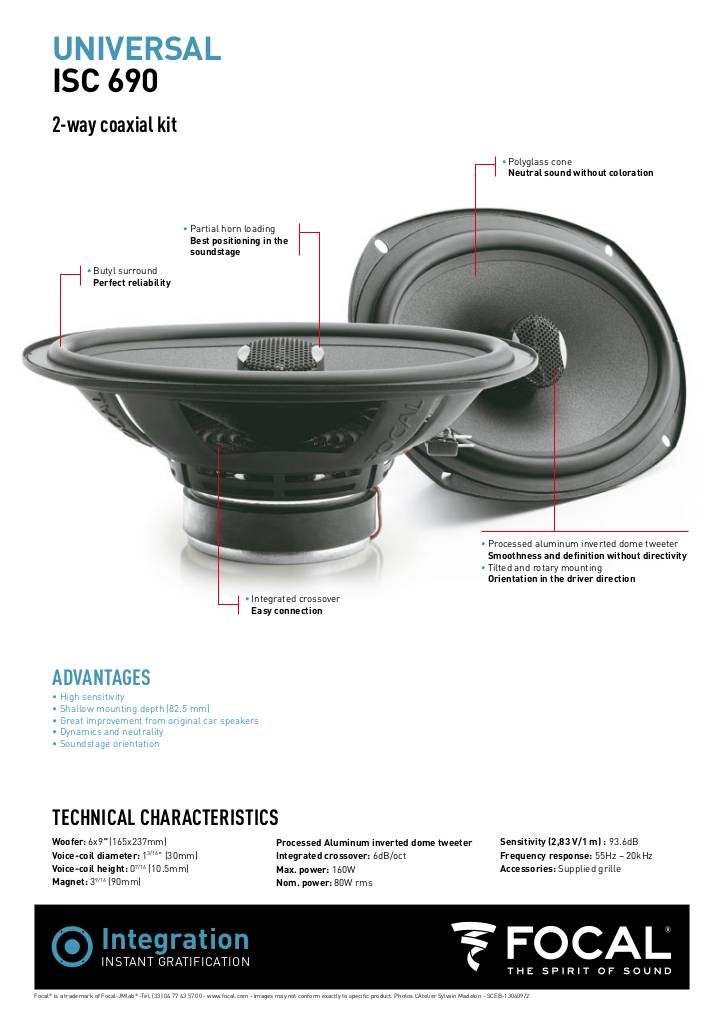

20130611103120-isc690-specification-sheet.pdf

Scheda tecnica

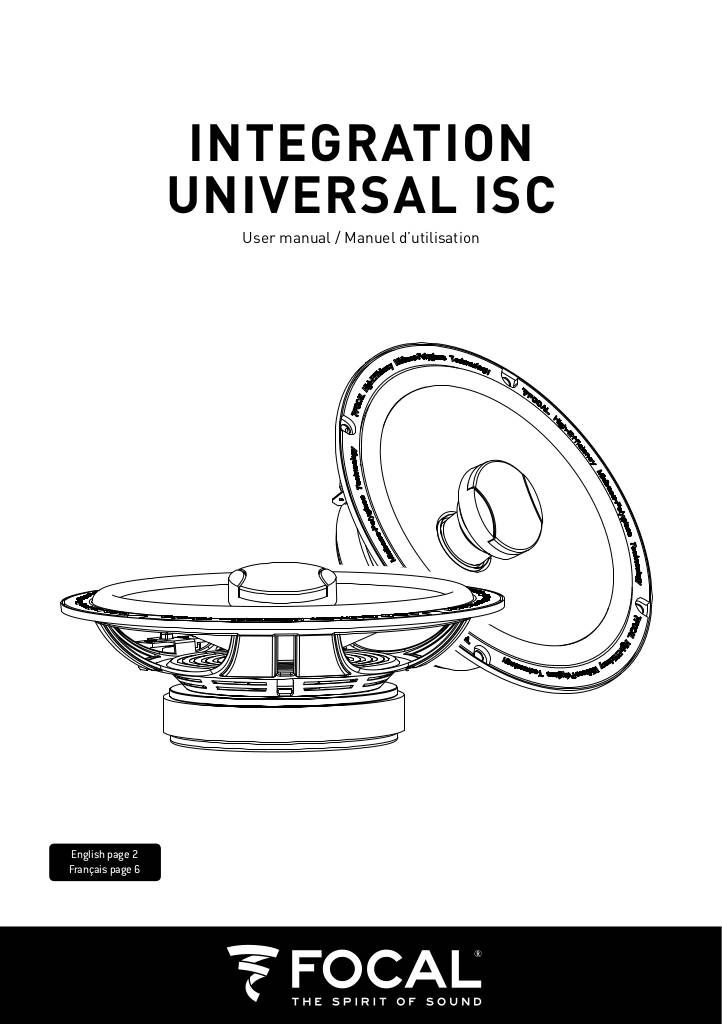

20130610171520-isc-notice-user-manual.pdf
