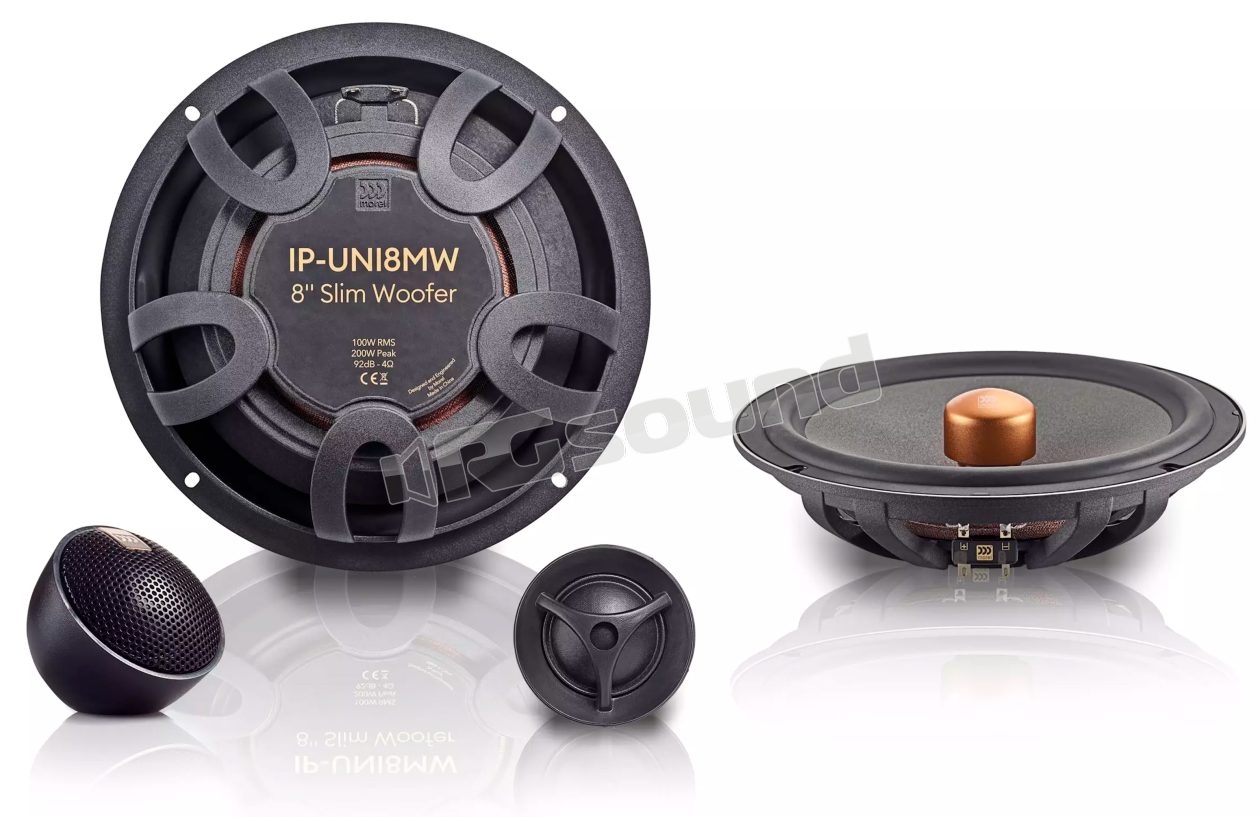

IP-UNI82 Integration UNIVERSAL series 2-way kit

Morel
Your price:
€ 390,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
40 - 20000 Hertz
Woofer Size
200 mm
Tweeter Size
25 millimetri
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

Morel IP-UNI82 is a universal 2-way system built to deliver the dynamic and natural sound Morel is known for

Equipped with a pair of ultra-thin 8-inch (200 mm) woofers, this system is compact and powerful and allows you to improve your audio system's performance without major modifications.

Installation is a key element of all Morel Integration Performance systems. Our engineers design each system with this in mind, keeping woofer sizes orderly without sacrificing performance, with compact high-performance tweeters and in-line crossovers to simplify installation. And most importantly, integration systems can be powered with factory power or with aftermarket amplification.


The slim form factor of the IP-UNI82 200 mm woofer is the result of Morel's innovative inverted neodymium magnet motor design. This design places the motor in front of the cone, allowing our engineers to design a proprietary chassis with a compact form factor and minimal mounting depth, which allows it to fit where other 8-inch woofers cannot.


High frequencies are reproduced by our superb 1-inch (25 mm) soft dome tweeters, whose compact size makes them easy to fit into most factory locations. Protected by an easy-to-install in-line crossover, they offer incredible clarity and detail in the high frequency range and integrate perfectly with a dynamic and bass-rich 8" (200 mm) woofer to create an accurate soundstage and image.


The IP-UNI82 promises best-in-class performance. One listen and we're sure you'll agree.

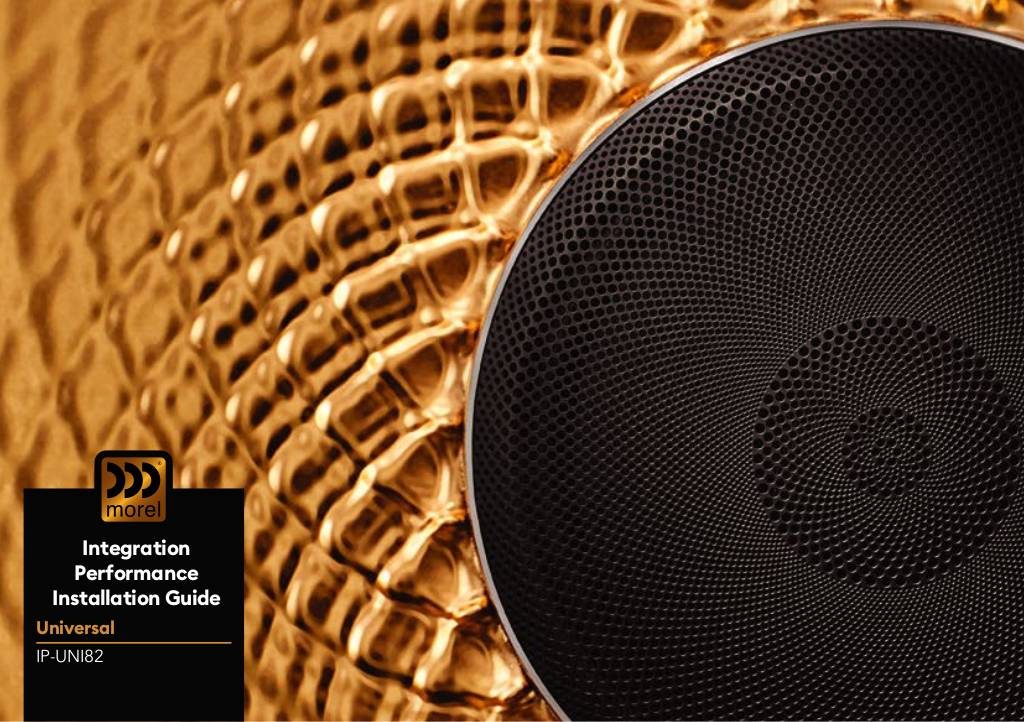

Manuale utente

n-20240715173440-6178-ip-uni82-manual-web.pdf

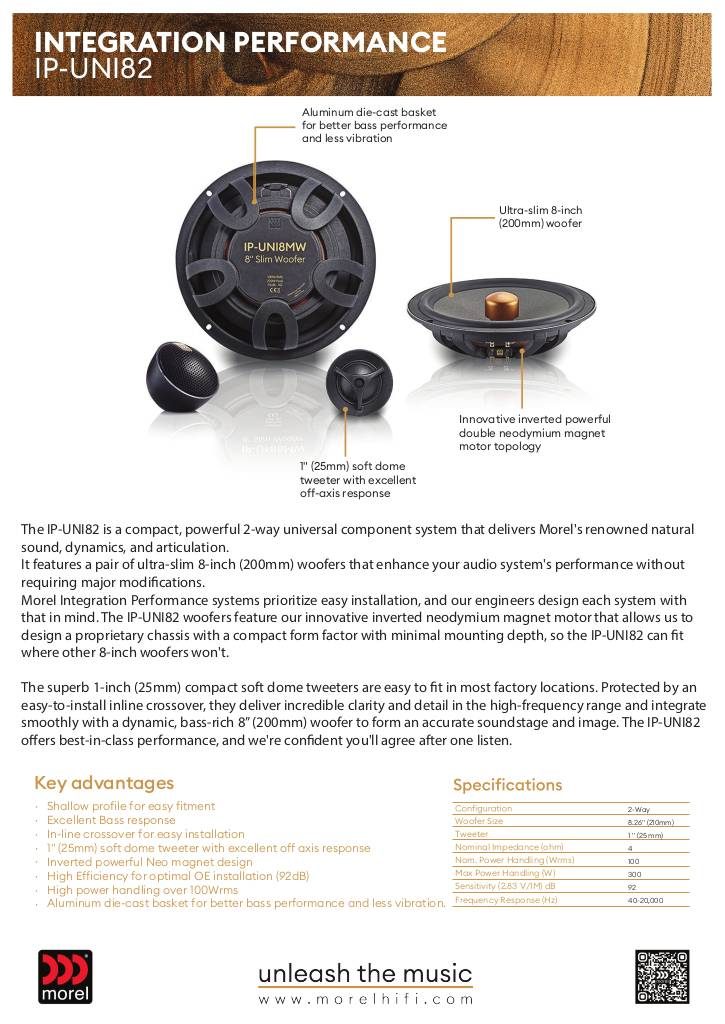

Scheda tecnica

n-20240715173440-6219-ip-uni82-product-page-web-1.pdf

Morel IP-UNI82 Technical Specifications

  • Diameter 210 mm
  • Impedance 4 Ohm
  • RMS Power 100 Watt
  • Maximum Power 200 Watt
  • Sensitivity 92 dB
  • Frequency Response 40 - 20000
  • Voice Coil 25 mm
  • Cone Treated cellulose
  • Installation Depth 48 mm
  • Tweeter MT25
  • Tweeter Power 90 Watt RMS / 160 Watt max
