IL-C8.3 BMW E-Series Front Intelligence Line semi-active 3-way custom-fit kit for BMW

Rainbow

Discontinued

Your price:
€ 469,00
Price per single item (VAT included)
Type
3-way separate kit
Woofer Size
200 mm
Midrange Size
100 millimetri
Tweeter Size
25 millimetri
MAX Power
150 Watt
RMS Power
100 Watt
Frequency Response
35 - 30.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm

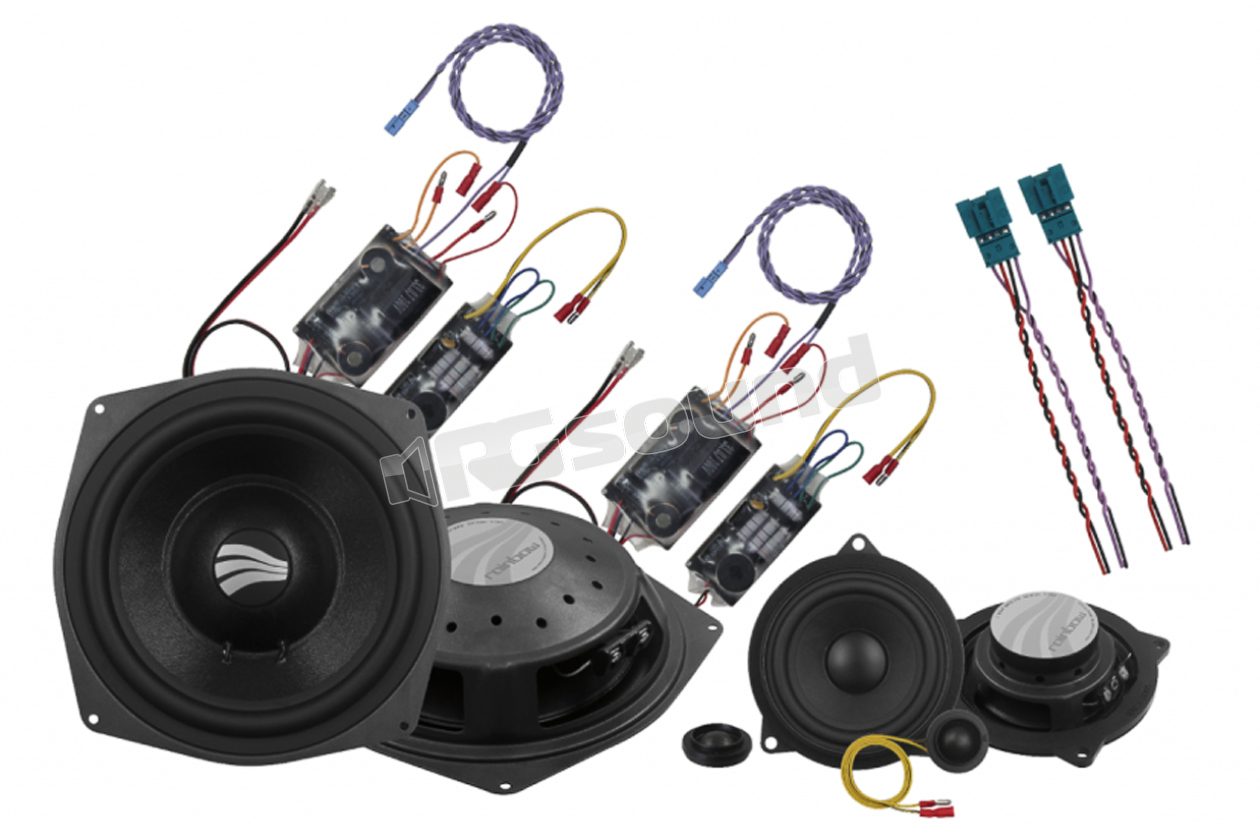

Rainbow IL-C8.3 BMW E-Series three-way semi-active kit composed of pair of 200mm underseat subwoofers, pair of 100mm midrange speakers, pair of 25mm tweeters, dedicated crossovers and accessories.

The IL-C8.3 BMW E-Series kit is compatible with the following BMW models:

  • Series 1 - (E81 Front), (E82 Front/Rear), (E87 Front), (E88 Front/Rear)
  • Series 3 - (E90 Front/Rear), (E91 Front/Rear), (E92 Front/Rear), (E93 Front/Rear)
  • Series 5 - (F07, F10, F11 Front/Rear)
  • Series 6 Gran Coupe - (F06 Front/Rear)
  • X1 - (E84 Front)
  • X3 - (E83 Front)

The Rainbow Intelligence series includes compact and powerful speakers dedicated for specific vehicles. These speaker systems are designed for installation in factory pre-wiring, improving on-board acoustics. The included accessories facilitate installation, while all connections and installation procedures are described in detail in the documentation inside the package.

IL-C8.3 BMW E-Series kit features

Peak power 150 Watt

Power rating 100 Watt

Minimum amplifier power 75 Watt

Sensitivity 90 dB 1W/1m

Frequency response 35 - 30.000 Hz

Impedance 4 Ohm

Slope 2 x 12 dB/Okt.

Crossover frequency 180 / 4.500 Hz

Tweeter Attenuation 2x

Thermal protection PTC

Sub IL-S8F BMW E/F Serie

Mounting depth w/o / w. ring 50 mm

External Ø with edges 207 mm

Installation Ø180 mm

Fastening 228 mm

Midrange IL-MR4F BMW E-Serie

Mounting depth w/o / w. ring 36 / 27 mm

External Ø with edges 100 / 138 mm

External Ø with edges 119 / 138 mm

Installation Ø 103 mm

Fastening 138 mm

Tweeter IL-T25 BMW

Mounting depth w/o / w. ring 11 mm

External Ø with edges 44 mm

Installation Ø 44 mm
