IL-C8.2F 20cm two-way kit

Rainbow

Discontinued

Your price:
€ 259,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
40 -21.000 Hertz
Woofer Size
200 mm
Tweeter Size
36 millimetri
MAX Power
150 Watt
RMS Power
100 Watt
Sensitivity
90 dB
Impedance
4 Ohm

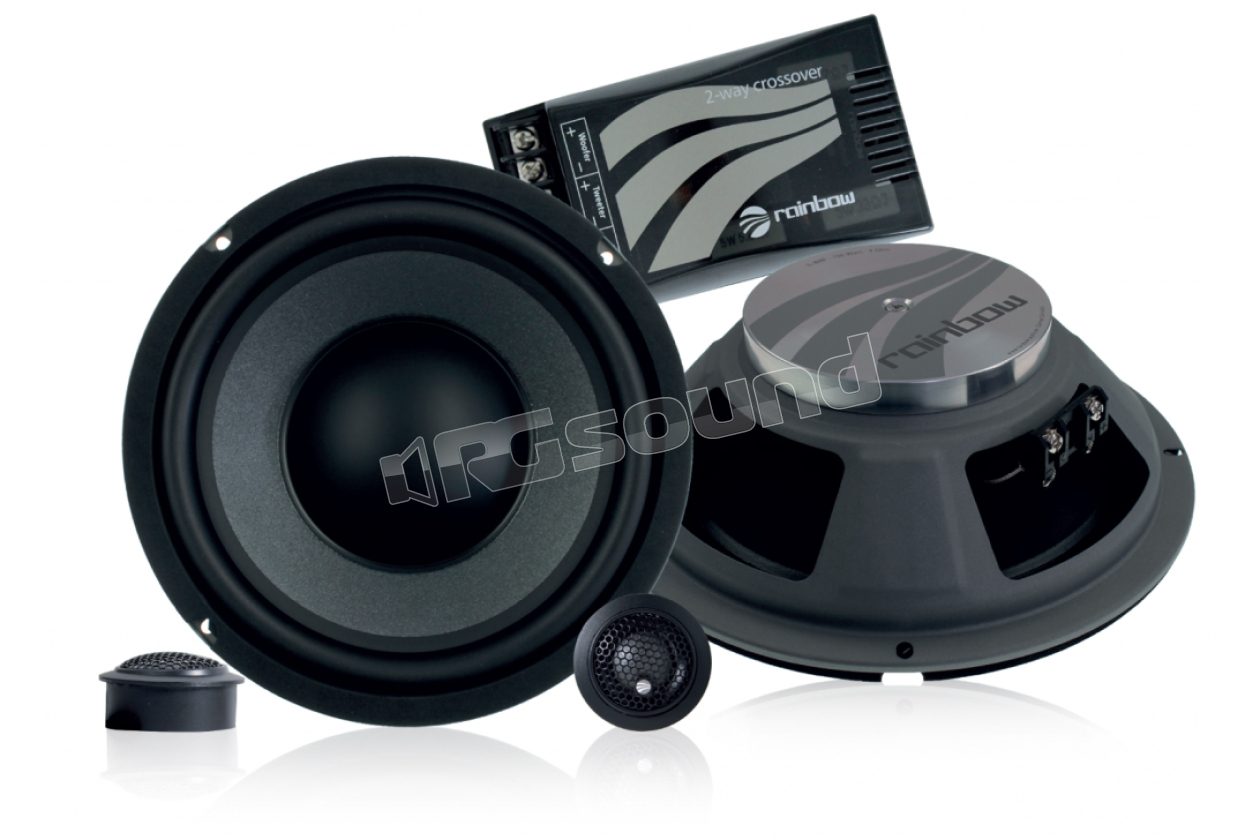

Rainbow IL-C8.2F two-way kit composed of a pair of IL-W8F 200mm woofers, a pair of DL-T20 36mm tweeters and a pair of dedicated crossovers.

The speakers in this kit are designed for installation in factory positions for upgrading standard systems.

Connection and installation are described in detail in the documents included in the package to ensure easy installation.

IL-C8.2F kit features

Maximum power 150 Watt

RMS power 100 Watt

Minimum amplifier power 75 Watt

Sensitivity 90 dB 1W/1m

Frequency response 40 - 21,000 Hz

Impedance 4 Ohm

Slope 2 x 12 dB/Oct.

Crossover frequency 4,200 Hz

Tweeter attenuation 3x

HALO thermal protection

IL-W8F woofer

Installation depth 59 mm

Diameter 205 mm

Installation hole Ø 182 mm

DL-T20 tweeter

Installation depth 14 mm

Diameter Ø 36 mm

Outer diameter Ø 45 mm

Installation hole Ø 33 / 41 mm

Discontinued
