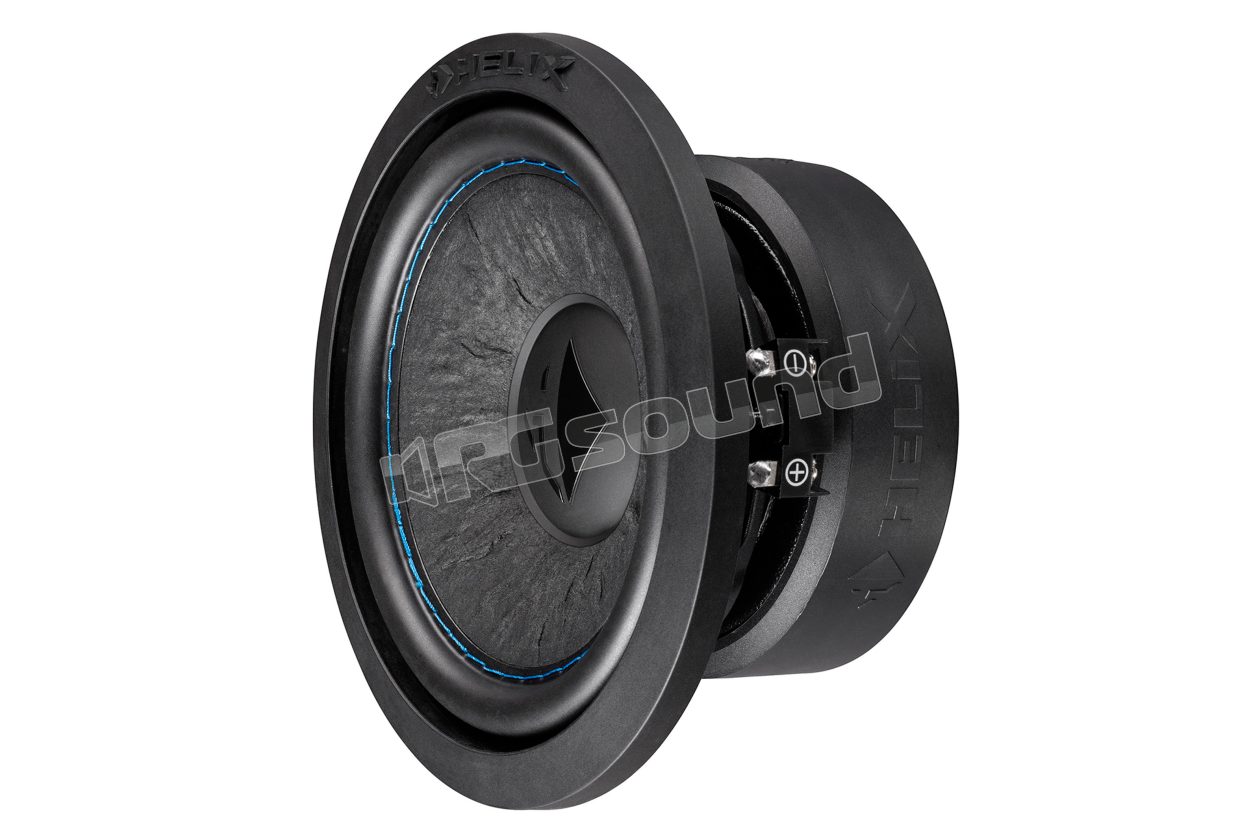

IK W6 DVC2 6" subwoofer with dual 2 Ohm voice coils

Helix
Your price:
€ 93,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
150 Watt
Sensitivity
93 dB
Installation Depth
74 mm
Woofer Material
Cellulosa trattata

HELIX IK W6 DVC2 6" Subwoofer with Dual 2 Ohm Voice Coil

Rich bass in compact dimensions
The chassis of the K series subwoofers can all be used in very compact enclosures where they perform magnificently with exceptional bass performance. Extremely rigid cone in hand-cut paper. Furthermore, the solid protective grille and gasket are also included in the package.

IK W6 VC2 Features

  • Dual 2 Ohm voice coil
  • Powerful magnet system for compact vented enclosures
  • Extremely rigid paper cone with hand-worked finish
  • Dual vented mobile voice coil to minimize compression effects and ensure high power handling
  • Long-excursion rubber dome for maximum mechanical resistance
  • Gold-plated terminals for maximum conductivity
  • Robust magnet cover with HELIX lettering and perfect magnet protection
  • Grille and gasket included

1 x HELIX IK W6-DVC2 Subwoofer 1 x Grille 1 x Gasket 1 x Technical sheet

Helix IK W6 DVC2 Technical Specifications

  • Power handling RMS / max. 150 / 300 Watt
  • Impedance Z 2 x 2 Ω
  • DC resistance Re 2.0 Ω
  • Resonance frequency Fs 48 Hz
  • Mechanical Q factor Qms 3.85
  • Electrical Q factor Qes 0.33
  • Total Q factor Qts 0.30
  • Compliance Cms 544 μm/N
  • Equivalent air volume Vas 11.4 L
  • Force factor B*I 6.4 Tm
  • Sensitivity SPL 93.0 dB @ 2.83V / 1m
  • 87.0 dB @ 1W / 1m
  • Cone area Sd 129 cm²
  • Moving mass Mms 23 g
  • Cone material Hand-carved paper cone
  • Mechanical resistance Rms 1.66 kg/s
  • Voice coil diameter ø 37 mm
  • Voice coil winding height 18 mm
  • Maximum linear excursion Xmax +/- 6.0 mm
  • Outer diameter ø 164.2 mm / 6.46"
  • Installation diameter ø 132.5 mm / 5.22"
  • Installation depth 74.3 mm

Recommended box

  • Vented enclosure
  • Net volume 7 L
  • Port diameter ø 50 mm
  • Port area 20 cm²
  • Port length 34 cm (angled port)
  • Port tuning frequency Fb 45 Hz
  • Lower limit frequency (-3dB) 43 Hz

Recommended DSP settings

  • High-pass filter "self-defined" with cutoff frequency of 45 Hz and Q = 1.2;
  • additional EQ filter 80 Hz / Q = 1.0 / +1.0 dB
