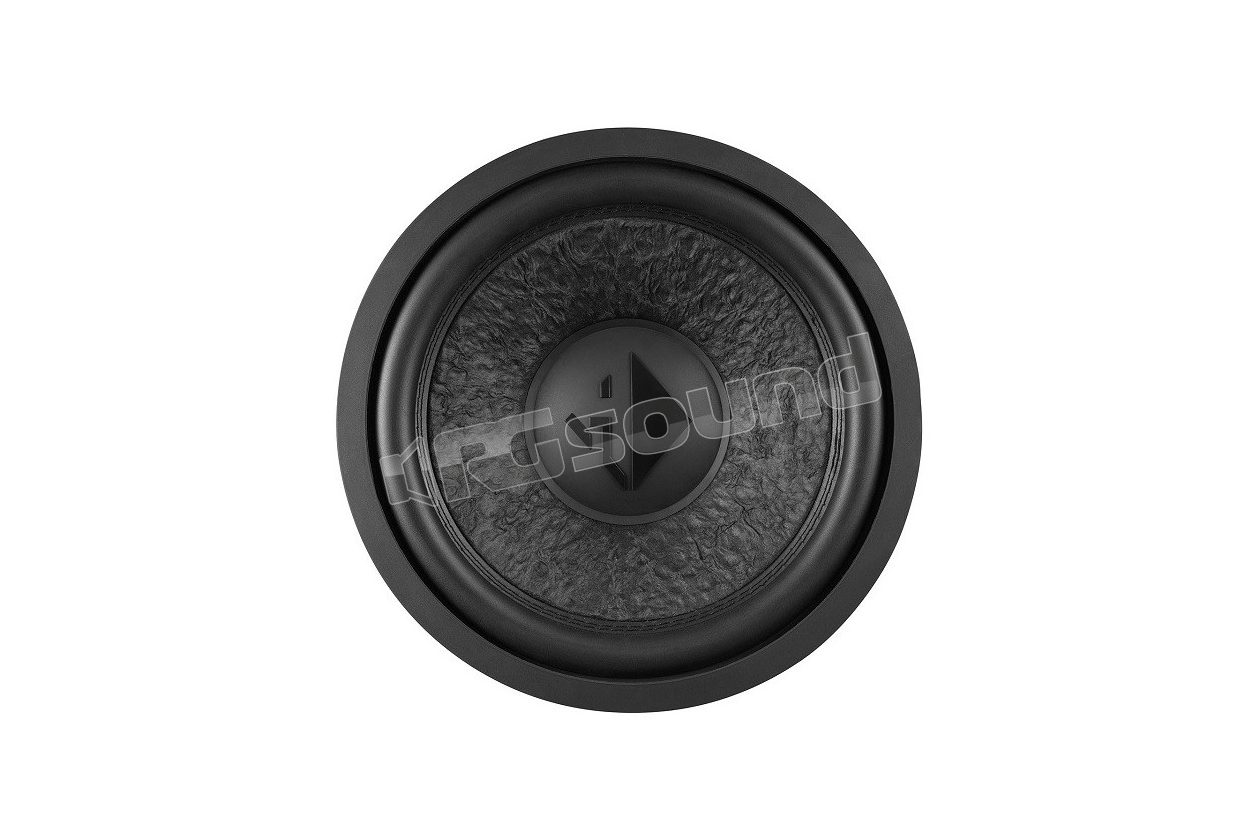

IK W12 SVC2 30cm single voice coil 2 Ohm subwoofer

Helix
Your price:
€ 206,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
95 dB
Impedance
2 Ohm
Installation Depth
144 mm
Woofer Material
Cellulosa trattata

Helix IK W12 SVC2 subwoofer 30cm (12") with single voice coil 2 Ohm

Stunning bass performance in compact dimensions.
With the new KW frame, we are expanding our IMPACT subwoofer line, offering powerful drivers to be used in very compact enclosures. Especially with regard to the most efficient use of available space in the vehicle, these woofers create new installation possibilities without ever compromising acoustic performance.

The extremely rigid cone made of hand-cut paper fibers and the heavy-duty speaker system not only convert the amplifier's power into sound pressure loads simply and without compression effects, but also stand out for their subtle rhythms.

Available in 1 x 2 Ohm (SVC2) or 2 x 2 Ohm (DVC2) version. In this way, these subwoofers always offer the right solution for any amplifier configuration, to achieve maximum performance, whether it is mono, 2-channel or even multichannel amplifiers.

Additionally, the solid protective grille and seal are also included. For optimal bass performance in DIY installations, our technical data sheet contains recommendations for sealed and vented enclosures, with all parameters such as net volume, port tuning frequency and DSP settings.

Helix IK W12 SVC2 Technical Specifications

  • Power handling RMS / max. 300 / 600 Watt
  • Impedance 1 x 2 Ω
  • DC resistance Re 1 x 2.0 Ω
  • Resonance frequency Fs 31 Hz
  • Mechanical Q factor Qms 4.03
  • Electrical Q factor Qes 0.54
  • Total Q factor Qts 0.47
  • Compliance Cms 142 μm/N
  • Equivalent air volume Vas 53 L
  • Force factor B*I 11.9 Tm
  • SPL Sensitivity
  • 95.0 dB @ 2.83V / 1m
  • 89.0 dB @ 1W / 1m
  • Cone area Sd 515 cm²
  • Moving mass Mms 146 g
  • Cone material Hand-carved paper cone
  • Mechanical resistance Rms 9.20 kg/s
  • Voice coil diameter ø 50.8 mm
  • Voice coil winding height 24 mm
  • Maximum linear excursion Xmax +/- 8.0 mm
  • Outer diameter ø 316 mm / 12.44
  • Installation diameter ø 286 mm / 11.26
  • Installation depth 144 mm
€ 206,00 Price incl. VAT
