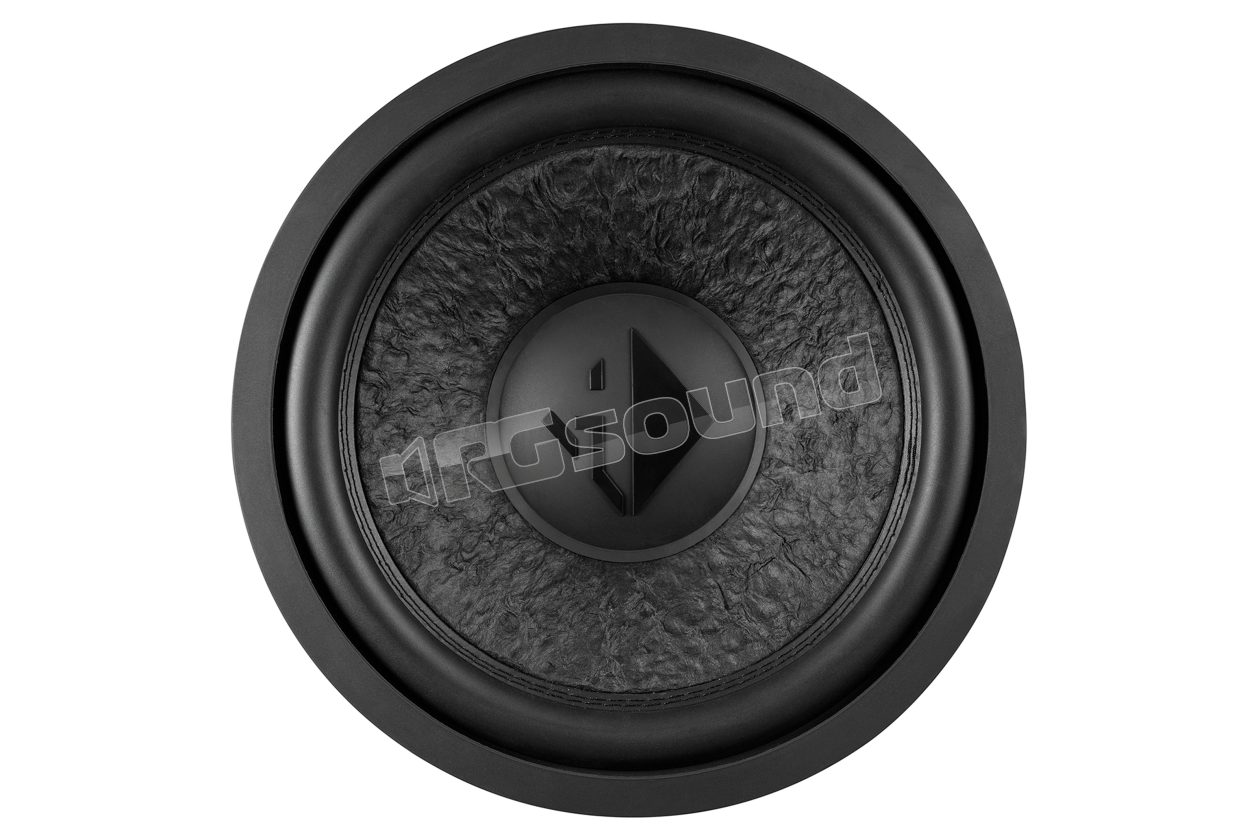

IK W12 DVC2 30cm Dual Voice Coil 2 Ohm Subwoofer

Helix
Your price:
€ 206,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
93 dB
Impedance
2 + 2 Ohm
Installation Depth
144 mm
Woofer Material
Cellulosa trattata

Helix IK W12 DVC2 Subwoofer 30cm with Dual Coil 2 Ohm

Astounding bass performance in compact dimensions.
With the new KW frame, we are expanding our IMPACT subwoofer line, offering powerful drivers for use in very compact enclosures. Especially with regard to the most efficient use of available space in the vehicle, these woofers create new installation possibilities without ever compromising acoustic performance. The extremely rigid cone made of hand-cut paper fibers and the heavy-duty speaker system not only convert amplifier power into sound pressure loads in a simple and compression-free manner, but also stand out for subtle rhythms.

Available in 1 x 2 Ohm (SVC2) or 2 x 2 Ohm (DVC2) version. In this way, these subwoofers always offer the right solution for every amplifier configuration, to achieve maximum performance, whether it is mono, 2-channel or even multichannel amplifiers. Additionally, the solid protective grille and gasket are also included. For optimal bass performance in do-it-yourself installations, our technical sheet provides recommendations for sealed and ported enclosures, with all parameters such as net volume, port tuning frequency and DSP settings.

Helix IK W12 DVC2 Technical Specifications

  • RMS / max power handling P 300 / 600 Watt
  • Impedance 2 x 2 Ω
  • DC resistance Re 2 x 1.6 Ω
  • Resonance frequency Fs 32 Hz
  • Mechanical Q factor Qms 3.70
  • Electrical Q factor Qes 0.46
  • Total Q factor Qts 0.41
  • Compliance Cms 179 μm/N
  • Equivalent air volume Vas 66 L
  • Force factor B*I 13.7 Tm
  • Sensitivity SPL
  • 93.0 dB @ 2.83V / 1m
  • 90.0 dB @ 1W / 1m
  • Cone area Sd 515 cm²
  • Moving mass Mms 134 g
  • Cone material Hand-cut paper cone
  • Mechanical resistance Rms 7.33 kg/s
  • Voice coil diameter ø 50.8 mm
  • Voice coil winding height 24 mm
  • Maximum linear excursion Xmax +/- 8.0 mm
  • Outer diameter ø 316 mm / 12.44
  • Installation diameter ø 286 mm / 11.26
  • Installation depth 144 mm
€ 206,00 Price incl. VAT
