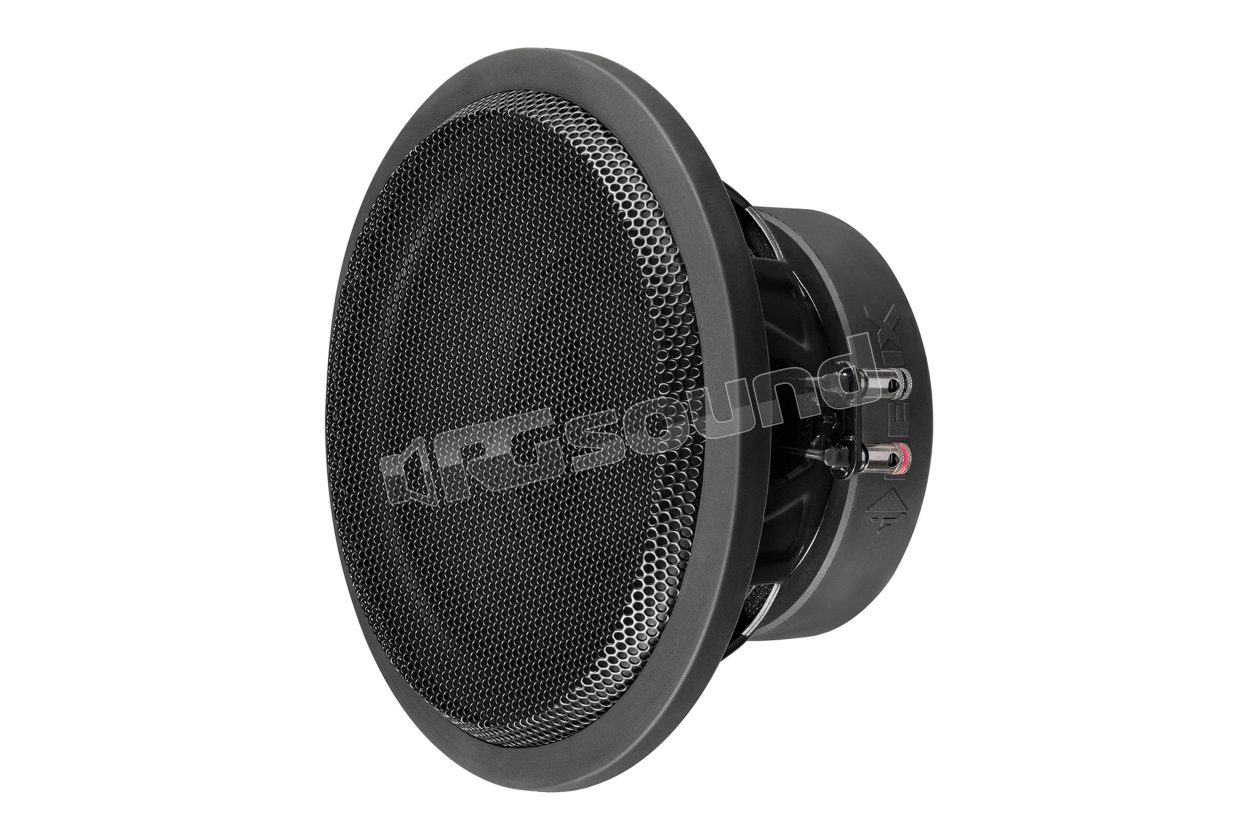

IK W10 SVC2 (K331006) 25cm subwoofer with 2 Ohm voice coil

Helix
Your price:
€ 168,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
93 dB
Impedance
2 Ohm
Installation Depth
126 mm
Woofer Material
Cellulosa trattata

Helix IK W10 SVC2 (K331006) Subwoofer 10 inch with 2 Ohm voice coil

With the new KW chassis, we are expanding our IMPACT subwoofer line, offering powerful drivers to be used in very compact enclosures. Especially with regard to the most efficient use of available space in the vehicle, these woofers create new installation possibilities without ever compromising acoustic performance. The extremely rigid cone made of hand-cut paper fibers and the heavy-duty speaker system not only easily and without compression effects convert amplifier power into sound pressure loads, but also stand out for their subtle rhythms.

Helix IK W10 VC is available in two versions: with single voice coil 1 x 2 Ohm (SVC2), or dual voice coil 2 x 2 Ohm (DVC2). In this way, these subwoofers always offer the right solution for every amplifier configuration, to achieve maximum performance, whether it's mono, 2-channel or even multichannel amplifiers. In addition, the solid protective grille and gasket are also included. To achieve optimal bass performance in DIY installations, our technical sheet contains recommendations for sealed and vented enclosures, with all parameters such as net volume, port tuning frequency and DSP settings.

IK W10 SVC2 Features

  • 1 single mobile voice coil 2 Ohm
  • Extremely rigid hand-crafted paper cone for exceptional impulse response
  • Dual ventilated mobile voice coil to minimize compression effects and ensure high power handling
  • Long-travel rubber sphere for maximum mechanical resistance
  • Solid push terminals
  • Powerful magnet system for compact enclosures
  • Robust magnet cover with HELIX lettering for perfect magnet protection
  • Grille and gasket included

Helix IK W10-SVC2 Technical specifications

  • RMS / max power handling P 300 / 600 Watt
  • Impedance Z 1 x 2 Ω
  • DC resistance Re 1 x 2.0 Ω
  • Resonance frequency Fs 32 Hz
  • Mechanical Q factor Qms 5.09
  • Electrical Q factor Qes 0.45
  • Total Q factor Qts 0.41
  • Compliance Cms 159 μm/N
  • Equivalent air volume Vas 25 L
  • Force factor B*I 12.1 Tm
  • SPL sensitivity
  • 93.0 dB @ 2.83V / 1m
  • 87.0 dB @ 1W / 1m
  • Cone area Sd 333 cm²
  • Moving mass Mms 126 g
  • Cone material Hand-carved paper cone
  • Mechanical resistance Rms 6.25 kg/s
  • Voice coil diameter ø 50.8 mm
  • Voice coil winding height 24 mm
  • Maximum linear excursion Xmax +/- 8.0 mm
  • Outside diameter ø 262 mm / 10.31
  • Installation diameter ø 232 mm
  • Installation depth 126 mm

Recommended enclosure volumes

  • Sealed box
    • Net volume 15 L
    • Lower limit frequency (-3dB) 50 Hz
    • Recommended DSP settings "Auto-definition" High-pass: 38 Hz / Q = 1.4;
    • EQ filter: 95 Hz / Q = 1.0 / -3 dB
  • Vented enclosure
    • Net volume 21 L
    • Port diameter ø 70 mm / 2.76
    • Port area 38 cm²
    • Port length 32 cm
    • Port tuning frequency Fb 36 Hz
    • Lower limit frequency (-3dB) 36 Hz
    • Recommended DSP settings "Auto-definition" High-pass: 35 Hz / Q = 1.0;
    • EQ filter: 100 Hz / Q = 0.7 / -2 dB
€ 168,00 Price incl. VAT
