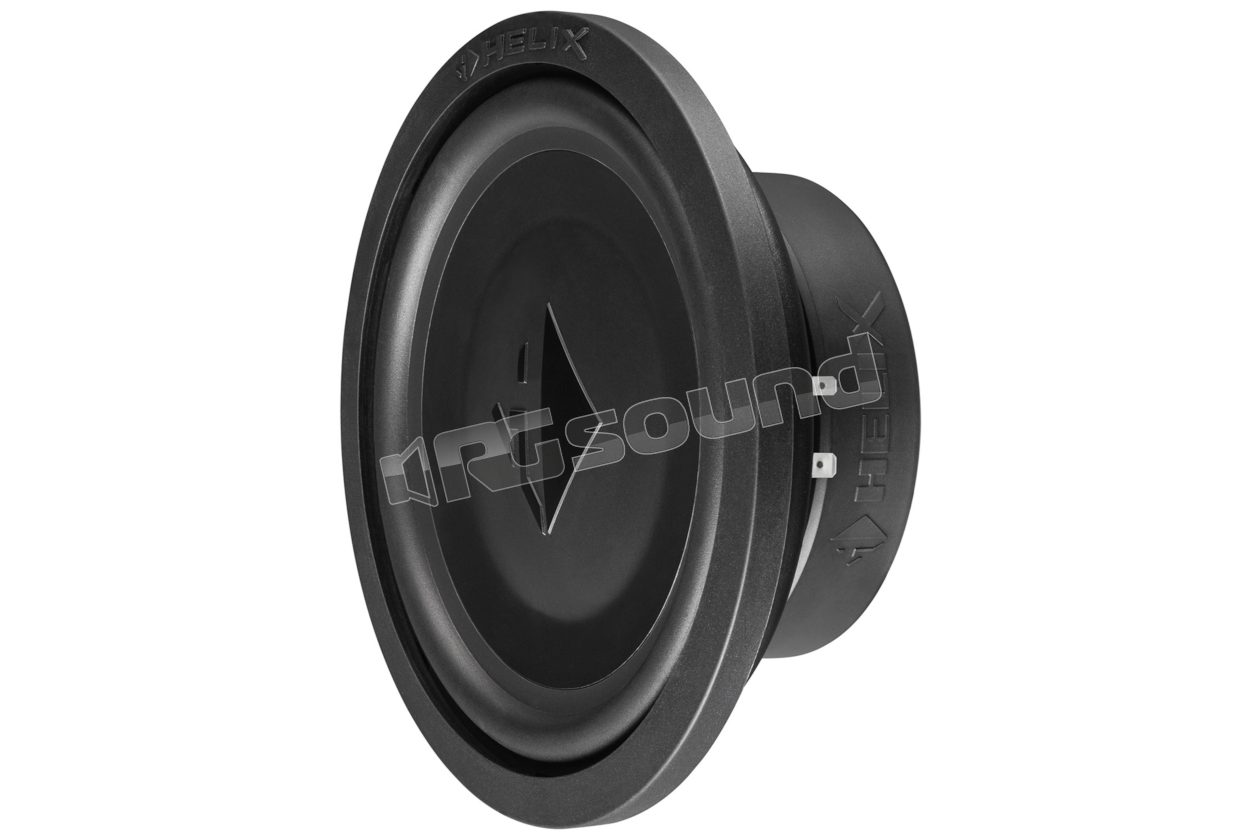

IK S8 SVC2 Subwoofer 1 x 2 Ohm

Helix
Your price:
€ 149,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

HELIX IK S8 SVC2 8" Single Coil 2 Ohm Subwoofer for Compact Enclosures

With HELIX IK S subwoofers, creating particularly flat and compact structures will no longer be a problem. The extremely reduced installation depth opens up new installation possibilities that do not require any acoustic compromise. Furthermore, thanks to the use of large mobile coils and low resonance frequency, the HELIX IK S series offers absolutely extraordinary bass performance that has nothing to envy from larger woofers.

The extremely rigid sandwich paper cone, combined with our heavy-duty driving system, easily converts amplifier power into powerful sound pressure without compression effects, while demonstrating refinement when it comes to finer beats. A special feature: the magnet system is equipped with a threaded hole on the back that allows the woofer to be fixed to the rear panel of the enclosure. Since in flat constructions every millimeter of depth counts, cabinet vibrations are effectively reduced, even with thin walls.

IK S8 VC1 Features

  • Frame with particularly reduced installation depth - optimized for compact and shallow constructions
  • Single mobile coil 1 x 2 Ohm
  • Magnet system with threaded hole on the back - allows screwing to the rear panel of the enclosure for stabilization and reduction of cabinet vibrations
  • Extremely rigid sandwich paper cone
  • Long-throw rubber surround for maximum mechanical resistance
  • Robust magnet cover with HELIX lettering for perfect magnet protection
  • Enclosure connection terminal, grille and gasket included in the supply

1 x HELIX IK S8 SVC2 Subwoofer 1 grille 1 gasket 1 x Enclosure connection terminal 1 x Technical data sheet

Helix IK S8 SVC2 Technical Specifications

  • Power handling RMS / max. P 300 / 600 Watt
  • Impedance Z 1 x 2 Ω
  • DC Resistance Re 2.0 Ω
  • Resonance frequency Fs 43 Hz
  • Mechanical Q factor Qms 7.79
  • Electrical Q factor Qes 0.53
  • Total Q factor Qts 0.50
  • Compliance Cms 170 μm/N
  • Equivalent air volume Vas 11 L
  • Force factor B*I 9.1 Tm
  • SPL Sensitivity
    • 91.0 dB @ 2.83V / 1m
    • 85.0 dB @ 1W / 1m
  • Cone area Sd 222 cm²
  • Moving mass Mms 81 g
  • Cone material Sandwich paper cone
  • Mechanical resistance Rms 2.8 kg/s
  • Voice coil diameter ø 50.8 mm
  • Voice coil winding height 19 mm
  • Maximum linear excursion Xmax +/- 6.0 mm
  • External diameter ø 213.4 mm / 8.40
  • Installation diameter ø 180.4 mm
  • Installation depth 79.5 mm

Recommended enclosure volumes

  • Sealed box
  • Net volume 10 L
  • Lower limit frequency (-3dB) 46 Hz
  • Recommended DSP settings High-pass filter "user-defined" with cutoff frequency of 46 Hz and Q = 1.5; additional EQ filter 100 Hz / Q = 1.0 / -2.5 dB
  • Vented box
  • Net volume 10 L
  • Port diameter ø 60 mm / 2.36
  • Port area 28 cm²
  • Port length 42 cm (angled port)
  • Port tuning frequency Fb 39 Hz
  • Lower limit frequency (-3dB) 45 Hz
  • Recommended DSP settings High-pass filter "user-defined" with cutoff frequency of 40 Hz and Q = 1.2; additional EQ filter 100 Hz / Q = 0.9 / -2 dB
