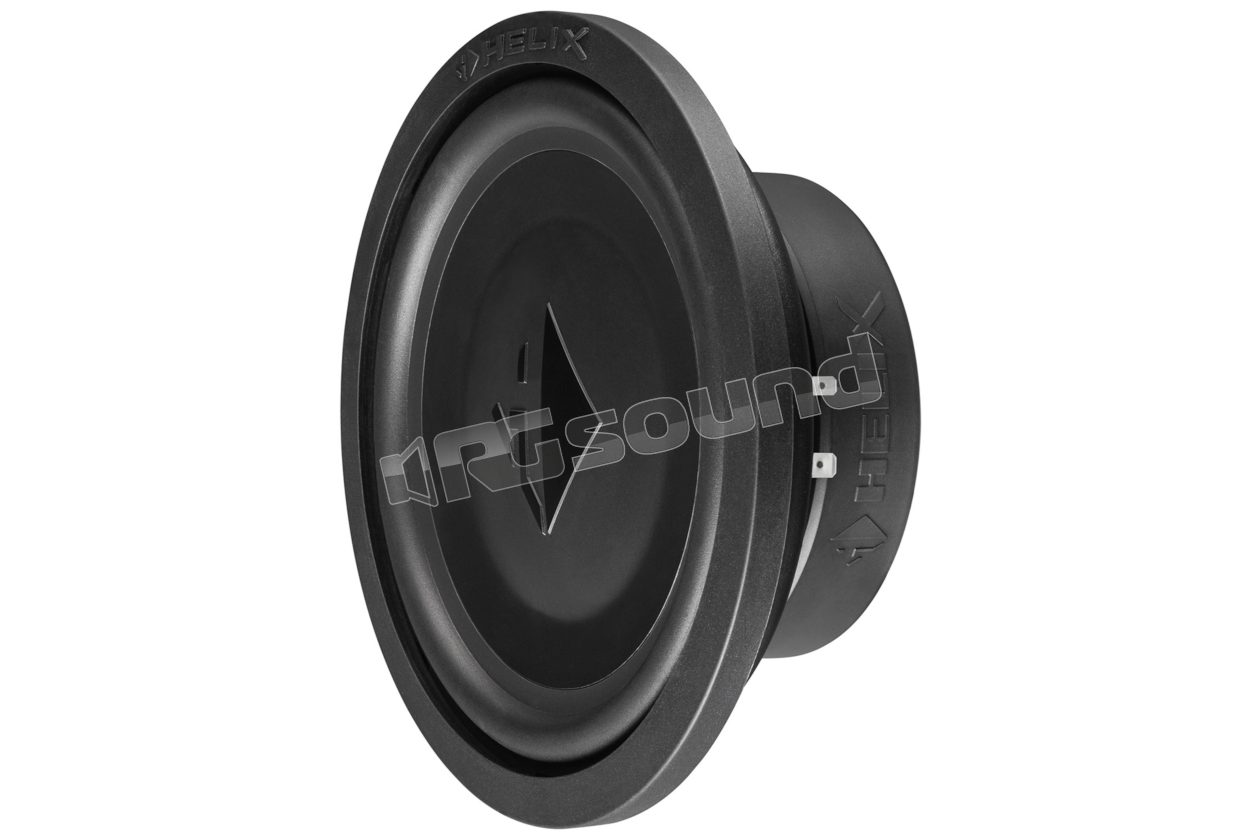

IK S8 DVC2 Subwoofer 2 x 2 Ohm

Helix
Your price:
€ 149,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
88 dB
Impedance
2 + 2 Ohm
Installation Depth
79,5 mm
Woofer Material
Cono sandwich di carta

HELIX IK S8 DVC2 8" Shallow Mount Subwoofer with 2 Ohm Dual Voice Coil for Compact Structures

With HELIX IK S subwoofers, creating particularly flat and compact structures will no longer be a problem. The extremely reduced installation depth opens up new installation possibilities that require no acoustic compromise. Furthermore, thanks to the use of large moving coils and low resonance frequency, the HELIX IK S series offers absolutely extraordinary bass performance that has nothing to envy compared to larger woofers.

The extremely rigid sandwich paper cone, combined with our heavy-duty drive system, easily converts amplifier power into powerful sound pressure without compression effects, while at the same time demonstrating finesse when it comes to finer beats. A special feature: the magnet system is equipped with a threaded hole on the back that allows you to fasten the woofer to the rear panel of the enclosure. Since in flat constructions every millimeter of depth counts, cabinet vibrations are effectively reduced, even with thin walls.

In addition to the high-quality connection terminal with gold-plated screw terminals, a sturdy protective grille and gasket are also included. For optimal bass performance in DIY installations, in our technical sheet you will find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency or DSP settings.

IK S8 VC2 Features

  • Frame with particularly reduced installation depth, optimized for compact and shallow constructions
  • Dual moving coil 2 x 2 Ohm for flexible system configuration
  • Magnet system with threaded hole on the back - allows screwing to the rear panel of the enclosure for stabilization and reduction of enclosure vibrations
  • Extremely rigid sandwich paper cone
  • Long-throw rubber surround for maximum mechanical resistance
  • Robust magnet cover with HELIX lettering for perfect magnet protection
  • Connection terminal to enclosure, grille and gasket included in the package

1 x Subwoofer HELIX IK S8 DVC2 1 grille 1 gasket 1 connection terminal 1 x Technical sheet

HELIX IK S8 DVC2 Technical Specifications

  • Power handling RMS / max. P 300 / 600 Watts
  • Impedance Z 2 x 2 Ω
  • DC Resistance Re 2 x 1.8 Ω
  • Resonance frequency Fs 43 Hz
  • Mechanical Q factor Qms 4.79
  • Electrical Q factor Qes 0.57
  • Total Q factor Qts 0.51
  • Compliance Cms 160 μm/N
  • Equivalent air volume Vas 11 L
  • Force factor B*I 11.9 Tm
  • SPL Sensitivity
    • 88.0 dB @ 2.83V / 1m
    • 85.0 dB @ 1W / 1m
  • Cone area Sd 222 cm²
  • Moving mass Mms 82 g
  • Cone material Sandwich paper cone
  • Mechanical resistance Rms 4.7 kg/s
  • Moving coil diameter ø 50.8 mm
  • Voice coil winding height 19 mm
  • Maximum linear excursion Xmax +/- 6.0 mm
  • External diameter ø 213 mm / 8.40
  • Installation diameter ø 180.4 mm
  • Installation depth 79.5 mm

Recommended enclosure volumes

  • Sealed enclosure
  • Net volume 10 L
  • Lower limiting frequency (-3dB) 46 Hz
  • Recommended DSP settings High-pass filter "self-defined" with cutoff frequency of 46 Hz and Q = 1.5
  • Additional EQ filter 100 Hz / Q = 1.0 / -2.5 dB

Vented enclosure

  • Net volume 10 L
  • Port diameter ø 60 mm / 2.36
  • Port area 28 cm²
  • Port length 42 cm (angled port)
  • Port tuning frequency Fb 39 Hz
  • Lower limiting frequency (-3dB) 45 Hz
  • Recommended DSP settings High-pass filter "self-defined" with cutoff frequency of 40 Hz and Q = 1.2 additional EQ filter 100 Hz / Q = 0.9 / -2 dB
