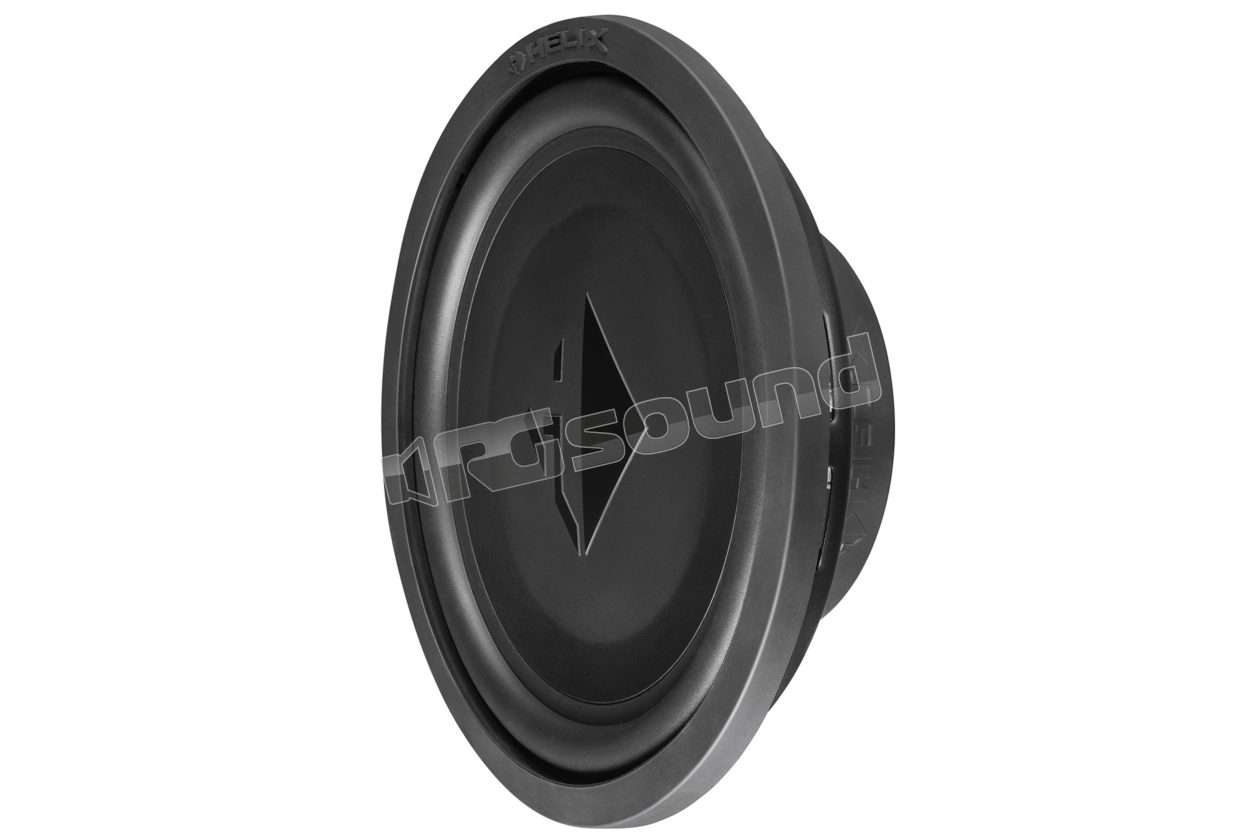

IK S12 SVC2 Subwoofer 1 x 2 Ohm

Helix
Your price:
€ 225,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
94 dB
Impedance
2 Ohm
Installation Depth
95,5 mm
Woofer Material
Cellulosa trattata

HELIX IK S12 SVC2 Subwoofer 1 x 2 Ohm

With HELIX IK S subwoofers, creating particularly flat and compact structures will no longer be a problem. The extremely reduced installation depth opens up new installation possibilities that require no acoustic compromise. Moreover, thanks to the use of large mobile coils and low resonance frequency, the HELIX IK S series offers absolutely extraordinary bass performance that has nothing to envy from larger woofers.

The extremely rigid sandwich paper cone, combined with our heavy-duty drive system, easily converts amplifier power into powerful sound pressure without compression effects, while at the same time showing refinement when it comes to more subtle beats. A special feature: the magnet system is equipped with a threaded hole on the back that allows you to attach the woofer to the rear panel of the enclosure. Since in flat constructions every millimeter of depth counts, cabinet vibrations are effectively reduced, even with thin walls.

1 x HELIX IK S12 SVC2 Subwoofer 1 grille 1 x gasket 1 x Enclosure connection terminal 1 x Technical data sheet

HELIX IK S12 VC1 Technical Specifications

  • RMS / max power handling P 300 / 600 Watt
  • Impedance Z 1 x 2 Ω
  • DC resistance Re 2.0 Ω
  • Resonance frequency Fs 34 Hz
  • Mechanical Q factor Qms 5.37
  • Electrical Q factor Qes 0.50
  • Total Q factor Qts 0.46
  • Compliance Cms 95 μm/N
  • Equivalent air volume Vas 37 L
  • Force factor B*I 14.1 Tm
  • SPL sensitivity
    • 94.0 dB @ 2.83V / 1m
    • 88.0 dB @ 1W / 1m
  • Cone area Sd 523 cm²
  • Mobile mass Mms 229 g
  • Cone material Sandwich paper cone
  • Mechanical resistance Rms 9.2 kg/s
  • Voice coil diameter ø 50.8 mm
  • Voice coil winding height 24 mm
  • Maximum linear excursion Xmax +/- 8.0 mm
  • Outer diameter ø 316 mm / 12.44
  • Installation diameter ø 276.8 mm
  • Installation depth 95.5 mm

Recommended enclosure volumes

  • Sealed box
  • Net volume 22 L
  • Lower limit frequency (-3dB) 39 Hz
  • Recommended DSP settings High-pass filter "self-defined" with cut-off frequency of 35 Hz and Q = 1.5;
  • additional EQ filter 75 Hz / Q = 1.5 / -3 dB

Vented box

  • Net volume 40 L
  • Port diameter ø 100 mm / 3.94
  • Port area 78 cm²
  • Port length 32 cm / 12.6
  • Port tuning frequency Fb 36 Hz
  • Lower limit frequency (-3dB) 37 Hz
  • Recommended DSP settings High-pass filter "self-defined" with cut-off frequency of 36 Hz and Q = 1.0; additional EQ filter 75 Hz / Q = 0.7/ -2dB
€ 225,00 Price incl. VAT
