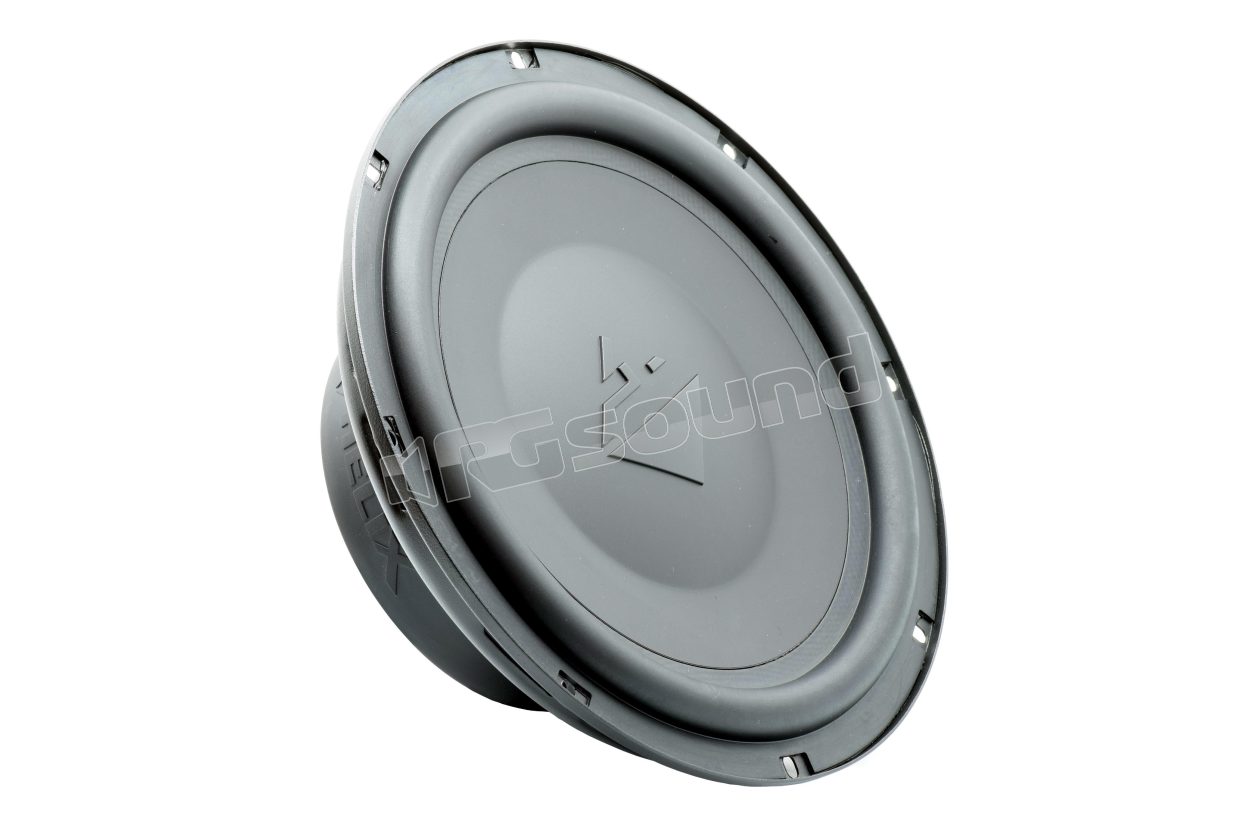

IK S10 SVC2 25cm single voice coil 2 Ohm subwoofer

Helix
Your price:
€ 187,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
93 dB
Impedance
2 Ohm
Installation Depth
84,5 mm
Woofer Material
Cono sandwich di carta

HELIX IK S10 SVC2 Subwoofer 25cm with single voice coil 2 Ohm for compact structures

With HELIX IK S subwoofers, creating particularly flat and compact structures will no longer be a problem. The extremely reduced installation depth opens up new installation possibilities that require no acoustic compromises. Additionally, thanks to the use of large moving coils and low resonance frequency, the HELIX IK S series offers absolutely extraordinary bass performance that has nothing to envy from larger woofers.
The extremely rigid sandwich paper cone, combined with our heavy-duty drive system, easily converts amplifier power into powerful sound pressure without compression effects, while demonstrating refinement when it comes to subtler beats. A special feature: the magnet system is equipped with a threaded hole on the back that allows you to attach the woofer to the rear panel of the enclosure. Since in flat constructions every millimeter of depth counts, cabinet vibrations are effectively reduced, even with thin walls.
In addition to the high-quality connection terminal with gold-plated screw terminals, a sturdy protective grille and a gasket are also included. To achieve optimal bass performance in DIY installations, recommendations for sealed and vented enclosures are available.
IK S10 VC1 Features
  • Frame with particularly reduced installation depth - optimized for compact and shallow constructions
  • Single moving coil 1 x 2 Ohm
  • Magnet system with threaded hole on the back - allows screwing to the rear panel of the enclosure for stabilization and reduction of cabinet vibrations
  • Extremely rigid sandwich paper cone
  • Long-travel rubber surround for maximum mechanical resistance
  • Robust magnet cap with HELIX lettering for perfect magnet protection
  • Enclosure connection terminal, grille and gasket included in the package

1 x Subwoofer HELIX IK S10 SVC2 1 grille 1 x gasket 1x Enclosure connection terminal 1 x Technical data sheet

HELIX IK S10 SVC2 Technical Specifications

  • Power handling RMS / max. P 300 / 600 Watt
  • Impedance Z 1 x 2 Ω
  • DC resistance Re 2.0 Ω
  • Resonance frequency Fs 37 Hz
  • Mechanical Q factor Qms 7.61
  • Electrical Q factor Qes 0.54
  • Total Q factor Qts 0.51
  • Compliance Cms 150 μm/N
  • Equivalent air volume Vas 26 L
  • Force factor B*I 10.1 Tm
  • SPL sensitivity
    • 93.0 dB @ 2.83V / 1m
    • 87.0 dB @ 1W / 1m
  • Cone area Sd 353 cm²
  • Moving mass Mms 119 g
  • Cone material Sandwich paper cone
  • Mechanical resistance Rms 3.7 kg/s
  • Moving coil diameter ø 50.8 mm
  • Moving coil winding height 18 mm
  • Maximum linear excursion Xmax +/- 6.0 mm
  • Outer diameter ø 262 mm / 10.31
  • Installation diameter ø 229 mm
  • Installation depth 84.5 mm


Recommended enclosure volumes

  • Sealed enclosure
  • Net volume 14 L
  • Lower limit frequency (-3dB) 46 Hz
  • Recommended DSP settings High-pass filter "self-defined" with cutoff frequency of 45 Hz and Q = 1.3;
  • Additional EQ filter 100 Hz / Q = 1.0 / -3 dB


Vented enclosure

  • Net volume 16 L
  • Port diameter ø 70 mm / 2.76
  • Port area 38 cm²
  • Port length 38 cm / 14.96
  • Port tuning frequency Fb 37 Hz
  • Lower limit frequency (-3dB) 39 Hz
  • Recommended DSP settings High-pass filter "self-defined" with cutoff frequency of 37 Hz and Q = 1.2; additional EQ filter 95 Hz / Q = 0.7 / -3 dB
€ 187,00 Price incl. VAT
