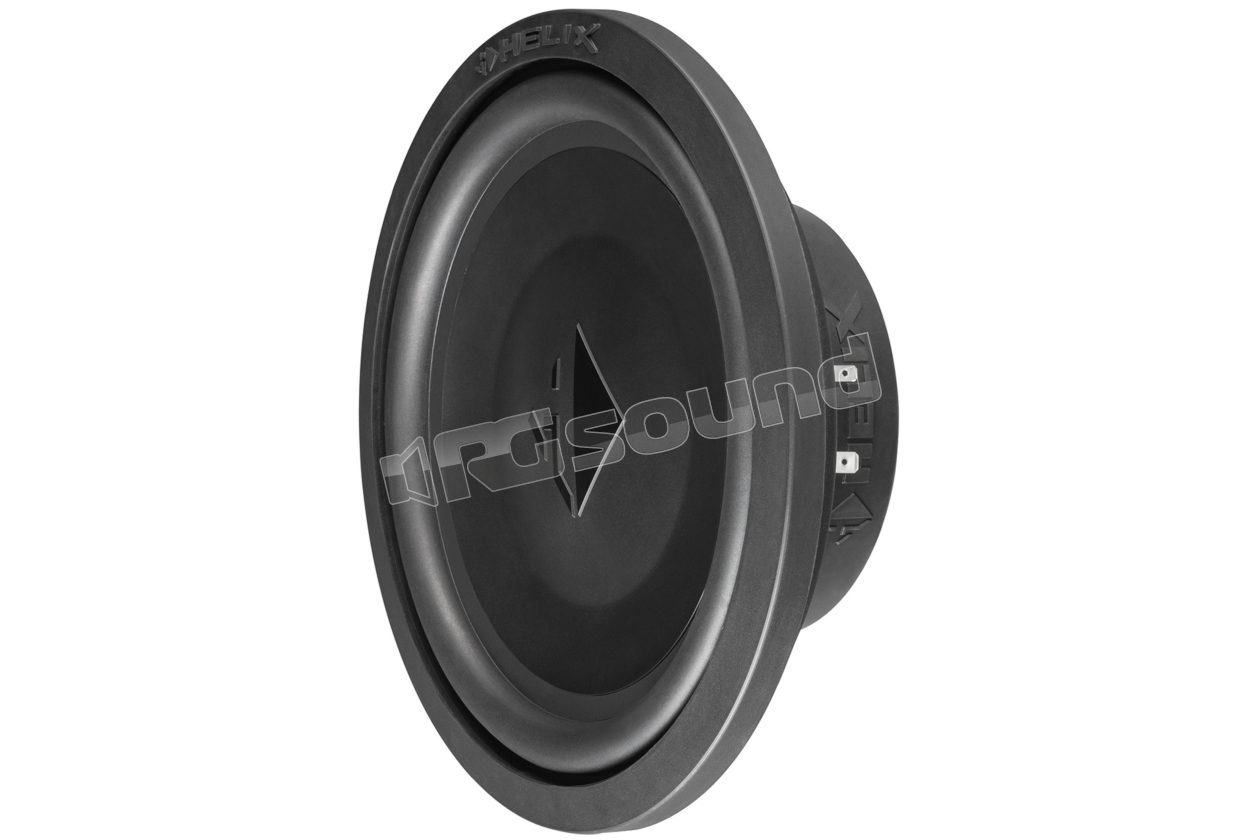

IK S10 DVC2 25cm Subwoofer with dual 2 Ohm voice coil

Helix
Your price:
€ 187,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
90 dB
Impedance
2 + 2 Ohm
Installation Depth
84,5 mm
Woofer Material
Cono sandwich di carta

HELIX IK S10 DVC2 Subwoofer 25cm with dual 2 Ohm voice coil for compact installations

With HELIX IK S subwoofers, creating particularly flat and compact installations will no longer be a problem. The extremely reduced installation depth opens up new installation possibilities that require no acoustic compromise. Moreover, thanks to the use of large moving coil voice coils and low resonance frequency, the HELIX IK S series offers absolutely extraordinary bass performance that has nothing to envy in larger woofers.
The extremely rigid sandwich paper cone, combined with our heavy-duty drive system, easily converts amplifier power into powerful sound pressure without compression effects, while at the same time demonstrating finesse when it comes to finer beats. A special feature: the magnet system is equipped with a threaded hole on the back that allows the woofer to be fastened to the rear panel of the enclosure. Since in flat constructions every millimeter of depth counts, cabinet vibrations are effectively reduced, even with thin walls.
In addition to the high-quality connection terminal with gold-plated screw terminals, a solid protective grille and a seal are also included. To achieve optimal bass performance in DIY installations, recommendations for sealed and vented enclosures are available.
IK S10 DVC2 Features
  • Frame with particularly reduced installation depth - optimized for compact and shallow constructions
  • Single moving coil voice coil 2 x 2 Ohm
  • Magnet system with threaded hole on the back - allows screwing to the rear panel of the enclosure for stabilization and reduction of cabinet vibrations
  • Extremely rigid sandwich paper cone
  • Long-throw rubber dome for maximum mechanical resistance
  • Robust magnet cover with HELIX lettering for perfect magnet protection
  • Enclosure connection terminal, grille and seal included in the delivery

1 x HELIX IK S10 DVC2 Subwoofer 1 x grille 1 x seal 1 x Enclosure connection terminal 1 x Technical data sheet

HELIX IK S10 DVC2 Technical Specifications

  • Power handling RMS / max. 300 / 600 Watt
  • Impedance Z 2 x 2 Ω
  • DC resistance Re 2 x 1.6 Ω
  • Resonance frequency Fs 34 Hz
  • Mechanical Q factor Qms 6.37
  • Electrical Q factor Qes 0.49
  • Total Q factor Qts 0.45
  • Compliance Cms 198 μm/N
  • Equivalent air volume Vas 34 L
  • Force factor B*I 12.7 Tm
  • Sensitivity SPL 90.0 dB @ 2.83V / 1m
  • 87.0 dB @ 1W / 1m
  • Cone area Sd 353 cm²
  • Moving mass Mms 112 g
  • Cone material Sandwich paper cone
  • Mechanical resistance Rms 3.73 kg/s
  • Voice coil diameter ø 50.8 mm
  • Voice coil winding height 18 mm
  • Maximum linear excursion Xmax +/- 6.0 mm
  • Outer diameter ø 262 mm / 10.31
  • Installation diameter ø 229 mm
  • Installation depth 84.5 mm


Recommended enclosure volumes

Sealed enclosure

  • Net volume 14 L
  • Lower cutoff frequency (-3dB) 46 Hz
  • Recommended DSP settings High-pass filter "self-defined" with cutoff frequency 45 Hz and Q = 1.3;
  • additional EQ filter 100 Hz / Q = 1.0 / -3 dB


Vented enclosure

  • Net volume 16 L
  • Port diameter ø 70 mm / 2.76
  • Port area 38 cm²
  • Port length 38 cm / 14.96
  • Port tuning frequency Fb 37 Hz
  • Lower cutoff frequency (-3dB) 39 Hz
  • Recommended DSP settings High-pass filter "self-defined" with cutoff frequency 37 Hz and Q = 1.2;
  • additional EQ filter 95 Hz / Q = 0.7 / -3 dB
€ 187,00 Price incl. VAT
