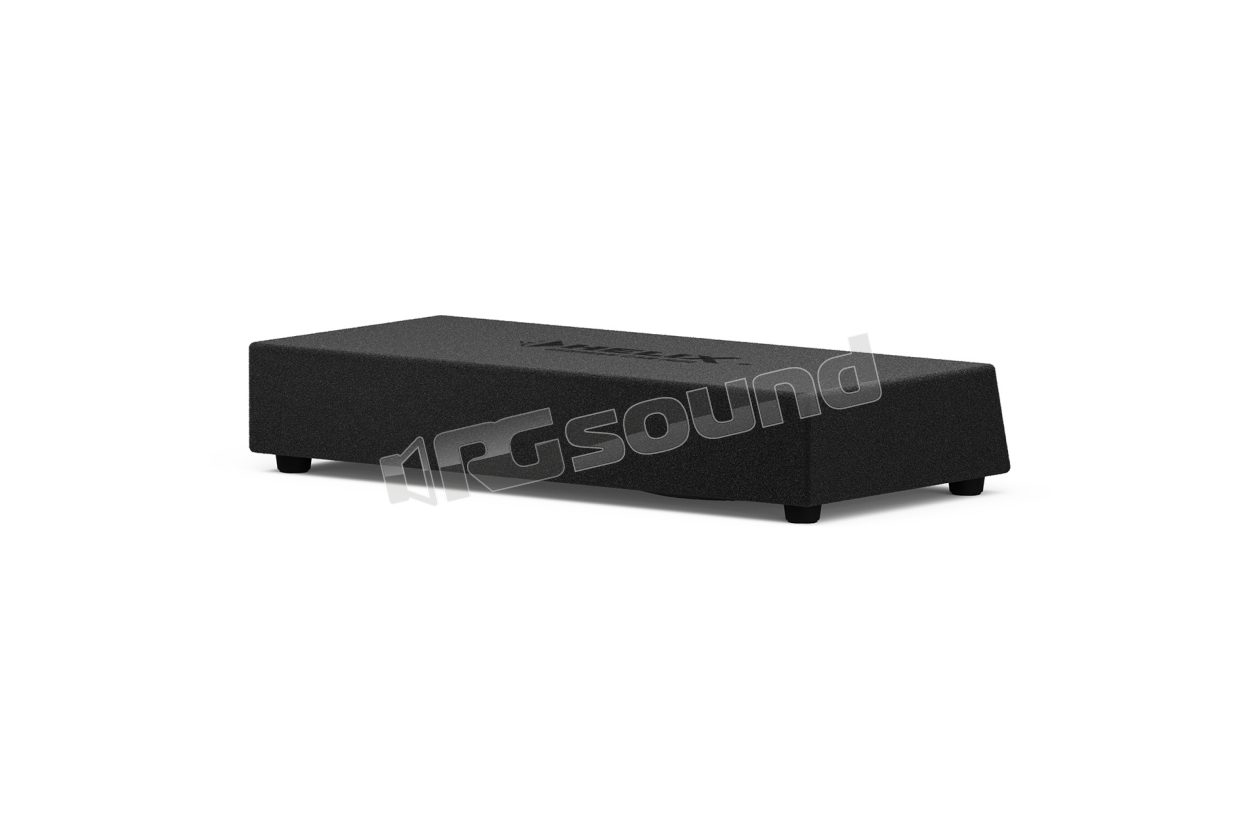

Helix IK ES10.1-DVC2 MK2 10" Vented Subwoofer with 300 W RMS Power - 2x2 Ω

HELIX IK ES10.1-DVC2 combines powerful bass performance with an exceptionally flat enclosure design. Developed specifically for hidden installation concepts, such as in the vehicle's dual load floor, it delivers rich bass and dynamic sound, even in places where traditional subwoofers simply cannot be installed.

The intelligent downfire structure ensures optimal bass dispersion in the vehicle. It uses the vehicle floor as an acoustic reflection surface to intensify low-frequency output, provides optimal protection for the speaker, and enables a slimmer design. In combination with bass-reflex technology and a powerful 250 mm frame, it delivers a dynamic bass experience with impressive sound pressure, while efficiently utilizing available space.


Extremely flat enclosures require sophisticated design details to avoid unwanted vibrations. In the case of the IK ES10.1-DVC2, the subwoofer's magnetic system is mounted directly to the enclosure's rear panel for additional reinforcement.
The IK ES10.1-DVC2 is equipped with the 250 mm surface-mount subwoofer IK S10-DVC2. It features a dual voice coil for heavy-duty use and an extremely rigid sandwich paper cone. This configuration effortlessly converts amplifier power into massive sound pressure, while delivering accurate and detailed bass reproduction.

The dual voice coil design offers greater flexibility in choosing the appropriate power amplifier. Whether it's an impedance of 1 x 4 Ohm, 2 x 2 Ohm, or 1 x 1 Ohm, this deep bass specialist makes any configuration easily possible.

Robust, practical and easy to install
The cabinet is lined with a robust carpet featuring an embroidered HELIX logo, making it not only aesthetically pleasing but also durable enough for everyday use. The feet, equipped with velcro tape, ensure secure and stable support inside the vehicle. Additionally, the plug-in screw terminal significantly simplifies installation and facilitates subwoofer removal when extra space is needed, while the detachable connector prevents short circuits by ensuring no exposed cables remain in the vehicle.

IK ES10.1-DVC2 Features

  • Downfire enclosure for ideal bass dispersion in the vehicle and perfect speaker protection.
  • Extremely thin enclosure design with port delivers high sound pressures and allows space-saving integration in the vehicle.
  • Equipped with a powerful 250 mm / 10" woofer with sandwich paper cone for rich and deep bass.
  • Magnetic system screwed to the enclosure's rear panel as additional reinforcement for stabilization and enclosure vibration reduction.
  • Plug-in screw terminal for quick and secure installation and removal
  • Voice coil impedance configurable via connection terminal allows flexible system configuration: 2 x 2 Ohm, 1 x 4 Ohm, or 1 x 1 Ohm
  • Feet with velcro tape for secure positioning in the vehicle
  • Robust carpet surface with embroidered HELIX logo

Scheda tecnica

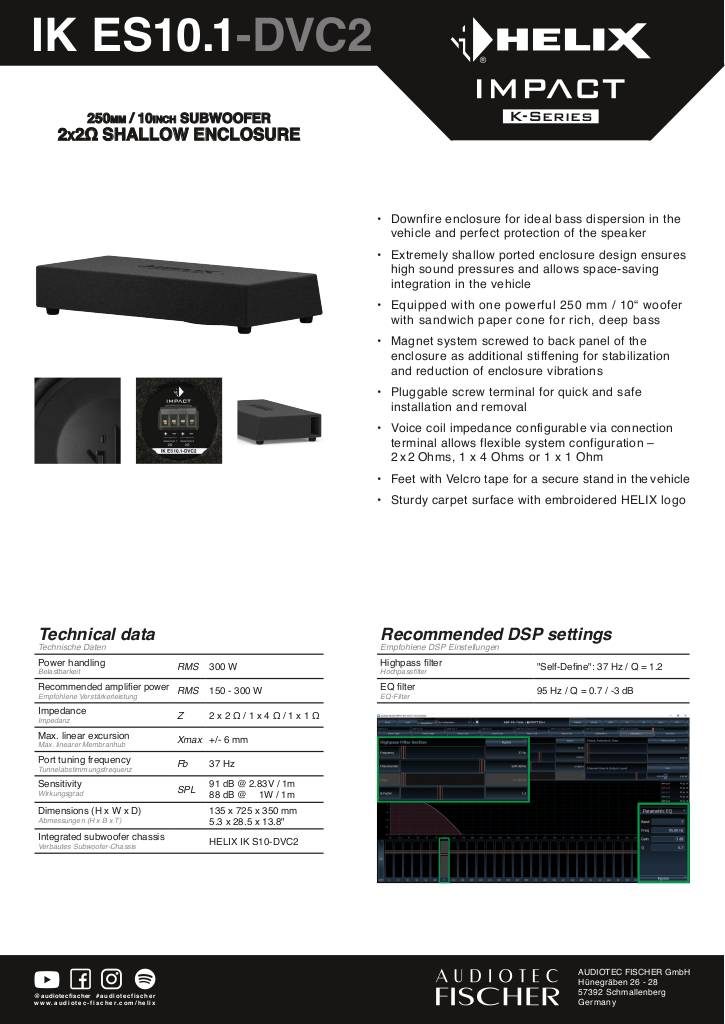

n-20251010105357-ik-es10-1-dvc2.pdf

Helix IK ES10.1-DVC2 MK2 Technical Specifications

  • Nominal RMS Power P 300 Watt
  • Recommended Amplifier RMS Power 150 - 300 Watt
  • Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
  • Maximum Linear Excursion Xmax +/- 6.0 mm
  • Port Tuning Frequency Fb 37 Hz
  • SPL Sensitivity
    • 91 dB @ 2.83 V / 1 m
    • 88 dB @ 1 W / 1 m
  • Dimensions (H x W x D)
  • 135 x 725 x 350 mm
  • 5.3 x 28.5 x 13.8"
  • Integrated Subwoofer Chassis HELIX IK S10-DVC2
  • Recommended DSP Settings
    • "Auto-defined" high-pass 37 Hz / Q = 1.2
    • EQ Filter: 95 Hz / Q = 0.7 / -3 dB
