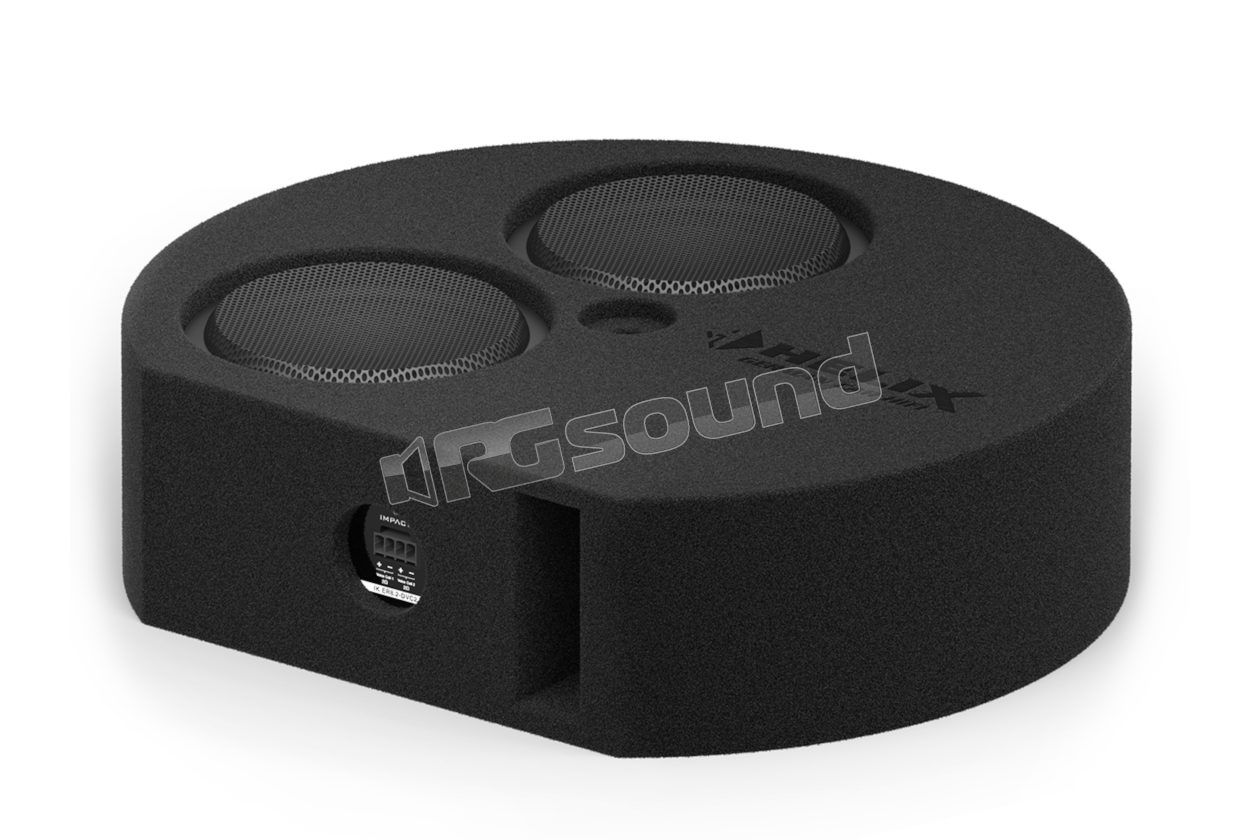

IK ER8.2-DVCD Dual subwoofer in vented enclosure for spare wheel well

Helix
Your price:
€ 375,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
150 Watt
Sensitivity
92 dB
Impedance
2+2 Ohm
Enclosure Type
Sealed Enclosure

Helix IK ER8.2-DVC2 Subwoofer in vented enclosure for spare wheel cavity

The HELIX IK ER8.2-DVC2 is the definitive choice for bass enthusiasts looking for a space-efficient subwoofer capable of delivering low-frequency performance without compromise. Thanks to its round and shallow enclosure, it can be integrated into spare wheel cavities, maximizing the available space in the vehicle.

The sophisticated vented structure of the IK ER8.2-DVC2 not only ensures excellent sound quality, but also delivers bass performance that sets new standards. Equipped with two powerful 200 mm drivers with hand-carved paper cones (2 x HELIX IK W8), this subwoofer generates low frequencies that are not only audible but also tangible. Even in tight spaces, it delivers bass dynamics that impress in terms of impact and precision: a must for those who want to experience maximum deep bass. Thanks to the connectable screw terminal, installation and removal of the subwoofer are quick and secure. Moreover, the configurable voice coil impedance (2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm) allows flexible system integration with various amplifiers, adapting seamlessly to different configurations.

The subwoofer baskets are flush-mounted, to ensure an elegant and compact design while providing increased protection. The enclosure features a robust carpeted surface with embroidered HELIX logo, which adds style and durability to the unit. For added security, the included mounting kit ensures reliable fastening inside the spare wheel cavity.

IK ER8.2-DVC2 Features

  • Round and compact enclosure designed for optimized space integration in spare wheel cavities
  • The sophisticated vented structure design offers exceptional sound quality and ideal bass dispersion inside the vehicle
  • Equipped with two powerful 200 mm / 8" high-excursion woofers with hand-carved paper cones for high-performance bass
  • Connectable screw terminal for quick and secure installation and removal
  • Configurable impedance via connection terminal allows flexible system configuration - 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
  • Subwoofer basket flush-mounted for a space-saving design and increased protection
  • Robust carpeted surface with embroidered HELIX logo
  • Included mounting kit to securely fasten the enclosure in spare wheel cavities

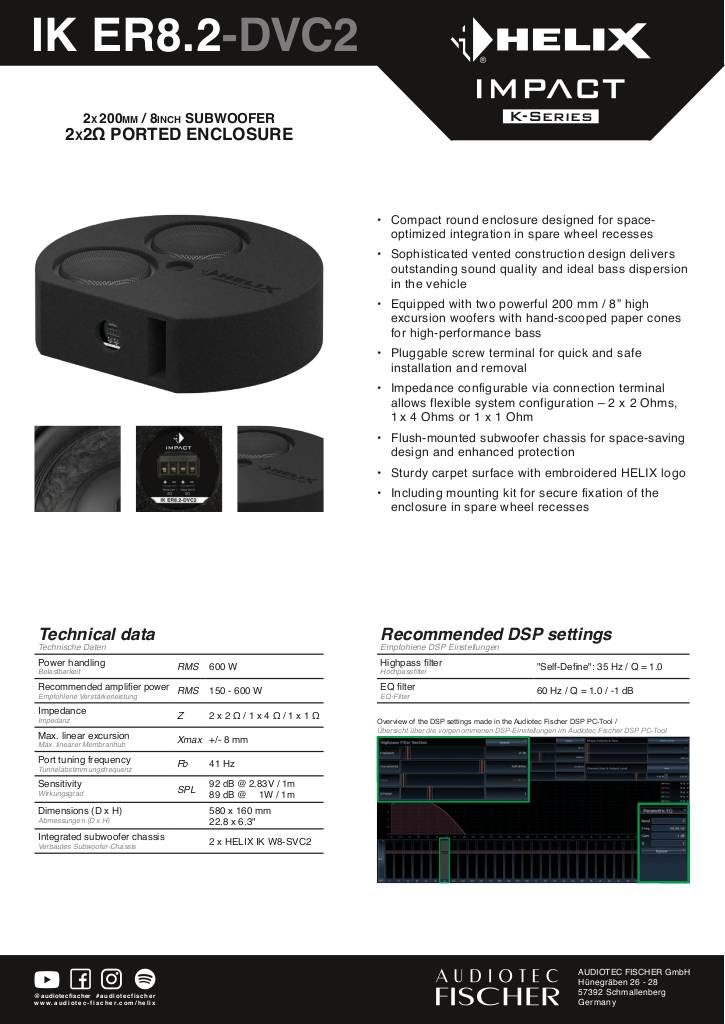

Scheda tecnica

n-20241021180236-ik-er8-2-dvc2-scheda-tecnica.pdf

Round ported subwoofer IK ER8.2-DVC2 1 x mounting kit 1 x Technical datasheet

Helix IK ER8.2-DVC2 Technical Specifications

  • RMS power handling P 600 Watt
  • Recommended amplifier RMS power 150 - 600 Watt
  • Impedance z
    • 2 x 2 Ω
    • 1 x 4 Ω
    • 1 x 1 Ω
  • Maximum linear excursion Xmax +/- 8.0 mm
  • Port tuning frequency Fb 41 Hz
  • SPL sensitivity
    • 92 dB @ 2.83V / 1m
    • 89 dB at 1W / 1m
  • Dimensions (D x H) 580 x 160 mm 22.8 x 6.3"
  • Integrated subwoofer basket HELIX IK W8-SVC2
  • Recommended DSP settings "User-defined" high-pass 35 Hz / Q = 1.0;
  • EQ filter: 60 Hz / Q = 1.0 / -1 dB
