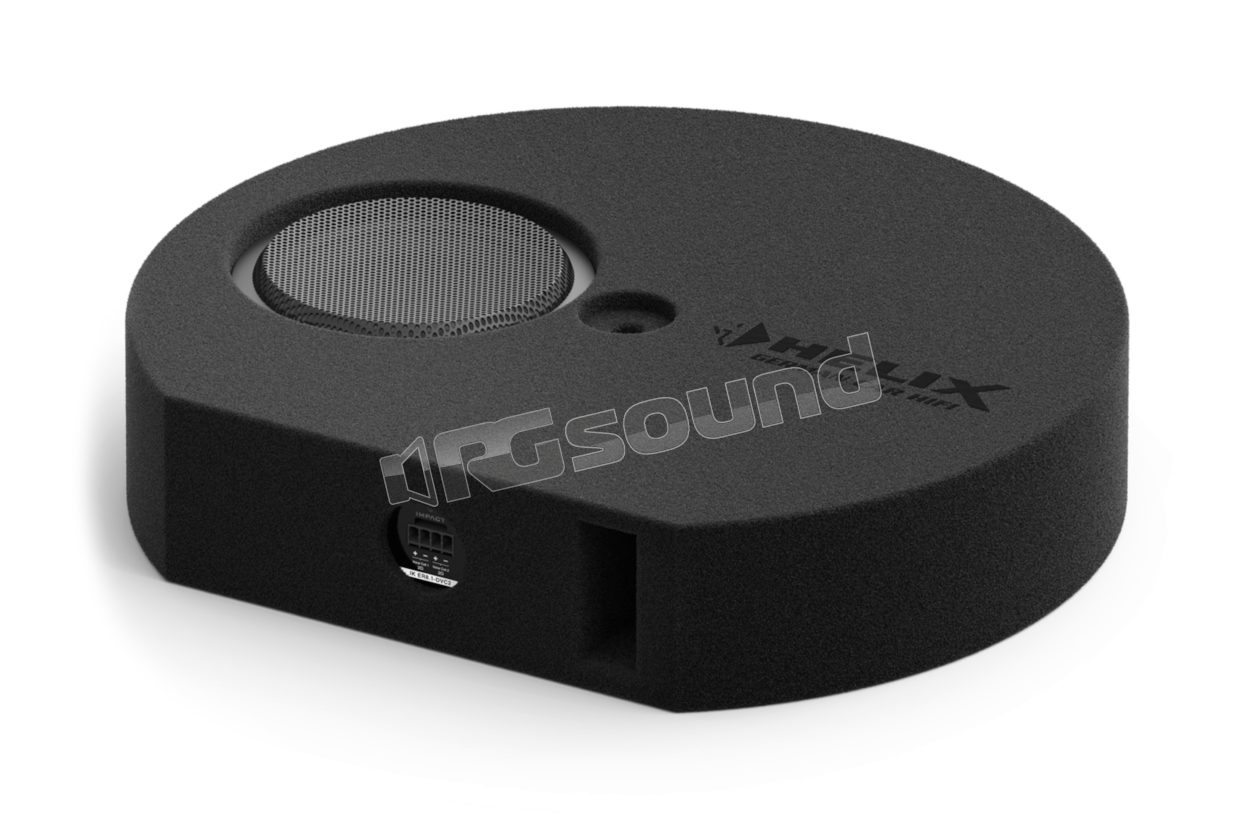

IK ER8.1-DVCD Subwoofer in a ported enclosure for the spare wheel well

Helix
Your price:
€ 281,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
150 Watt
Sensitivity
88 dB
Impedance
2+2 Ohm
Enclosure Type
Sealed Enclosure

Helix IK ER8.1-DVC2 Subwoofer in vented enclosure for spare wheel cavity

The HELIX IK ER8.1-DVC2 is the perfect subwoofer to be integrated into spare wheel cavities. Its exceptional round shallow enclosure makes it the ideal choice for an installation optimized in terms of space, without compromising proper reproduction of low frequencies.


The sophisticated vented structure of the IK ER8.1-DVC2 ensures exceptional sound quality and superior bass dispersion, offering rich and powerful low frequencies throughout the vehicle. Equipped with a 200 mm (8") woofer with sandwich paper cone, this subwoofer delivers deep and impressive bass even in the most confined spaces.

Thanks to the screw terminal connection, installation and removal of the subwoofer are quick and secure. Furthermore, the configurable voice coil impedance (2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm) allows flexible system integration with various amplifiers, adapting seamlessly to different configurations.


The subwoofer frame is mounted flush to ensure an elegant and compact design while providing greater protection. The enclosure features a robust carpet surface with embroidered HELIX logo, which adds style and durability to the unit. For added security, the included mounting kit ensures reliable fastening inside the spare wheel cavity.

IK ER8.1-DVC2 Features

  • Compact round and shallow enclosure, designed to optimize space in flat spare wheel cavities.
  • The sophisticated vented structure design offers exceptional sound quality and ideal bass dispersion inside the vehicle
  • Equipped with a powerful 200 mm / 8" woofer with sandwich paper cone for rich and deep bass
  • Screw terminal connector for quick and secure installation and removal
  • The voice coil impedance, configurable via the connection terminal, allows flexible system configuration: 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm.
  • Subwoofer frame mounted flush for a space-saving design and enhanced protection
  • Robust carpet surface with embroidered HELIX logo
  • Included mounting kit to securely fasten the enclosure in spare wheel cavities

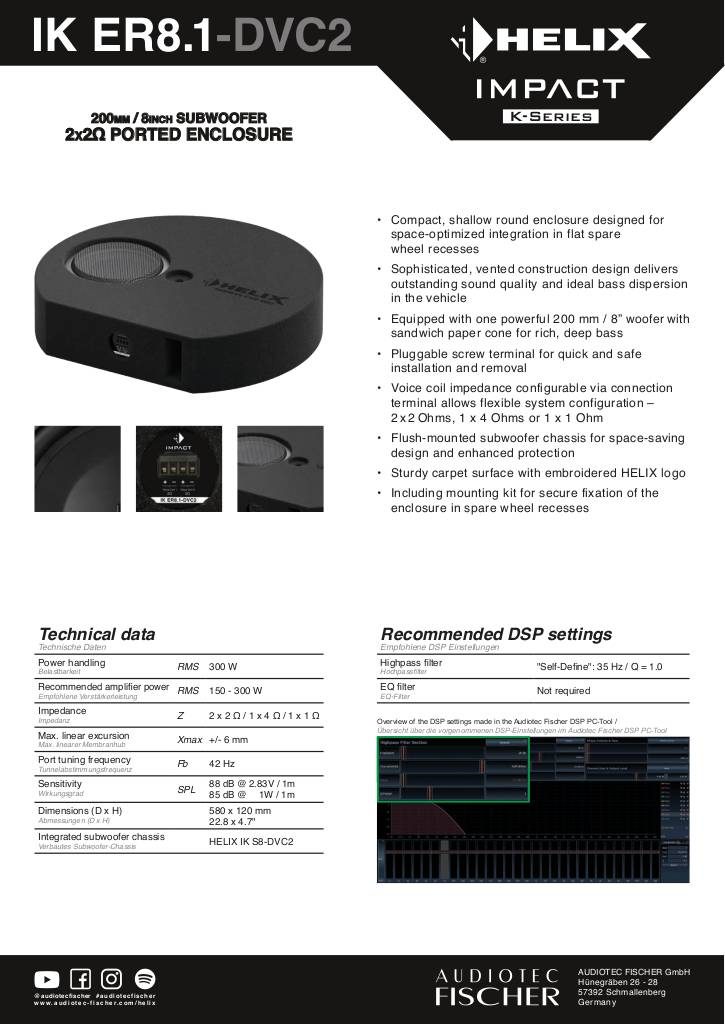

Scheda tecnica

n-20241021174820-ik-er8-1-dvc2-scheda-tecnica.pdf

x Round ported subwoofer IK ER8.1-DVC2 1 x mounting kit 1 x technical sheet

Helix IK ER8.1-DVC2 Technical Specifications

  • RMS Power Handling P 300 Watt
  • Recommended Amplifier Power RMS 150 - 300 Watt
  • Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
  • Maximum Linear Excursion Xmax +/- 6.0 mm
  • Port Tuning Frequency Fb 42 Hz
  • Sensitivity SPL
    • 88 dB @ 2.83V / 1m
    • 85 dB at 1W / 1m
  • Dimensions (D x H) 580 x 120 mm / 22.8 x 4.7"
  • Integrated Subwoofer Frame HELIX IK S8-DVC2
  • Recommended DSP Settings "Self-defined" high-pass 35 Hz / Q = 1.0;
  • EQ Filter: not necessary
