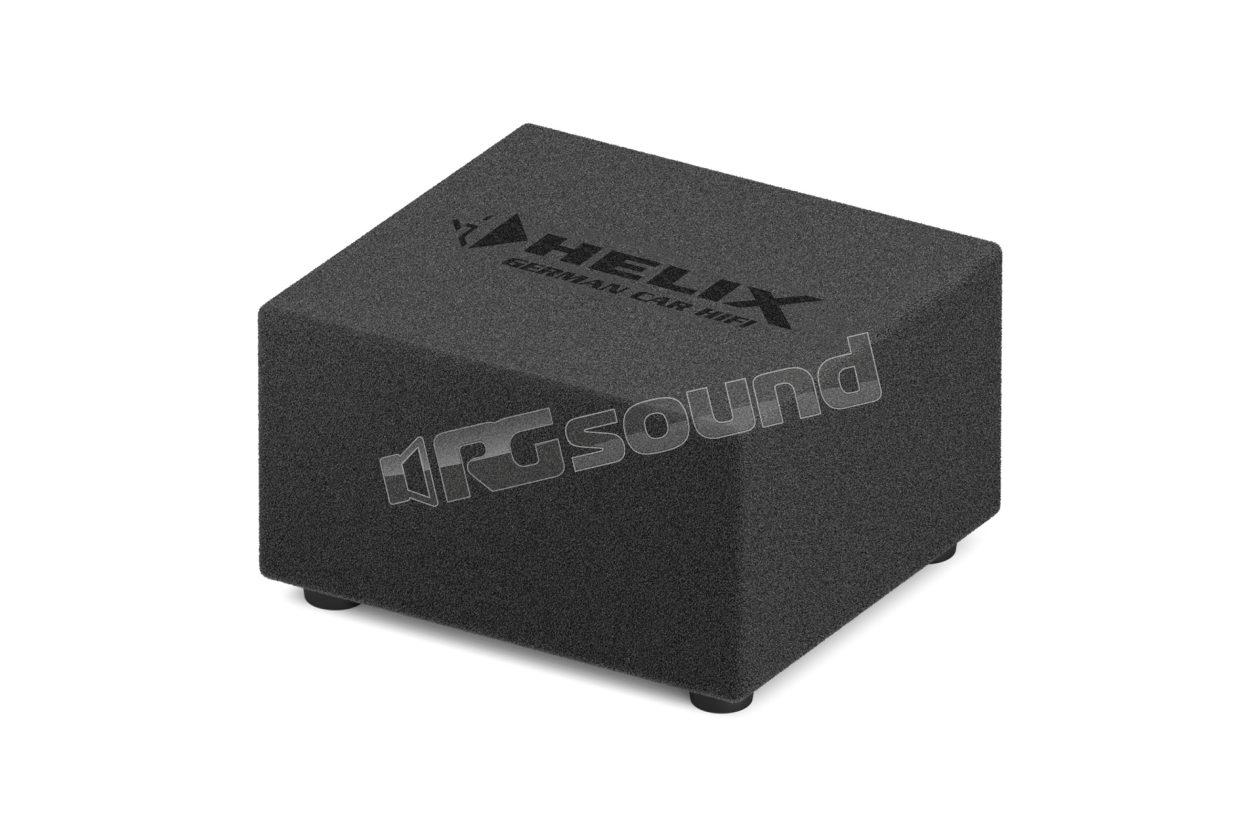

Helix IK E8.1 DVC2 MK2 Compact 8-inch downfiring subwoofer, 300 W RMS

HELIX IK E8.1 combines compactness and power in the low frequencies. Its downfire enclosure guarantees optimal bass dispersion and offers robust protection for the speaker, making it an intelligent solution for tight spaces without compromising sound quality.

The sophisticated and compact design of the ported enclosure of the IK E8.1 delivers impressive sound pressure and deep bass, even in the tightest spaces. Equipped with an 8" (200 mm) subwoofer with hand-crafted paper cone, this subwoofer guarantees rich and powerful performance in the low frequencies throughout the vehicle.

Thanks to the plug-in screw terminal, installation or removal of the subwoofer is quick and secure. With the option to choose between a 1 x 2 Ohm (SVC2) or 2 x 2 Ohm (DVC2) configuration, a perfect deep bass specialist is available for every amplifier configuration, so as to maximize output power.

The enclosure is covered with a robust carpet with the embroidered HELIX logo, which guarantees both style and durability. Additionally, the feet, equipped with velcro tape, ensure safe and stable support inside the vehicle.

IK E8.1 DVC2 MK2 Features

  • Downfire enclosure for ideal bass dispersion in the vehicle and perfect speaker protection.
  • The compact design of the ported enclosure guarantees high sound pressures and allows space-saving integration in the vehicle.
  • Equipped with a powerful 200 mm / 8" subwoofer with hand-crafted paper cone for rich and deep bass.
  • Mobile coil impedance configurable via connection terminal for flexible system configuration: 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
  • Plug-in screw terminal for quick and secure installation and removal
  • Feet with velcro tape for secure fastening inside the vehicle
  • Robust carpet surface with embroidered HELIX logo

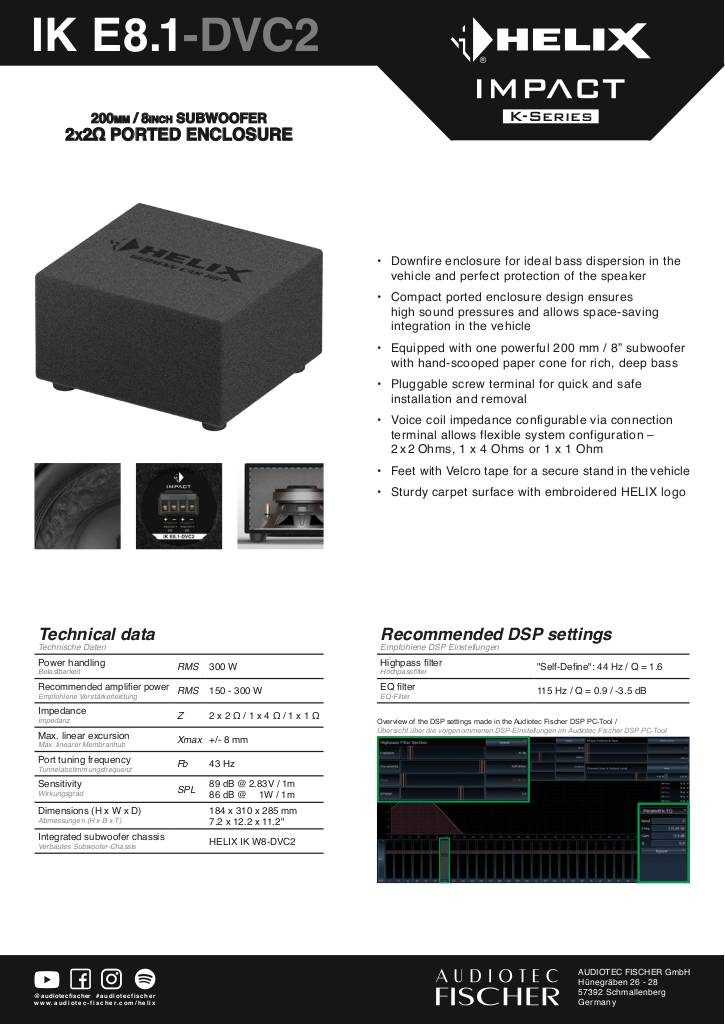

Scheda tecnica

n-20251010114500-ik-e8-1-dvc2.pdf

Helix IK E8.1 DVC2 MK2 Technical Specifications

  • RMS Power P 300 Watt
  • Recommended amplifier power RMS 150 - 300 Watt
  • Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
  • Maximum linear excursion Xmax +/- 8.0 mm
  • Port tuning frequency Fb 43 Hz
  • SensitivitySPL
    • 89 dB @ 2.83 V / 1 m
    • 86 dB @ 1 W / 1 m
  • Dimensions (H x W x D)
    • 184 x 310 x 285 mm
    • 7.2 x 12.2 x 11.2"
  • Integrated subwoofer chassis HELIX IK W8-DVC2
  • Recommended DSP settings
    • "Auto-defined" high-pass 44 Hz / Q = 1.6
    • EQ filter: 115 Hz / Q = 0.9 / -3.5 dB
