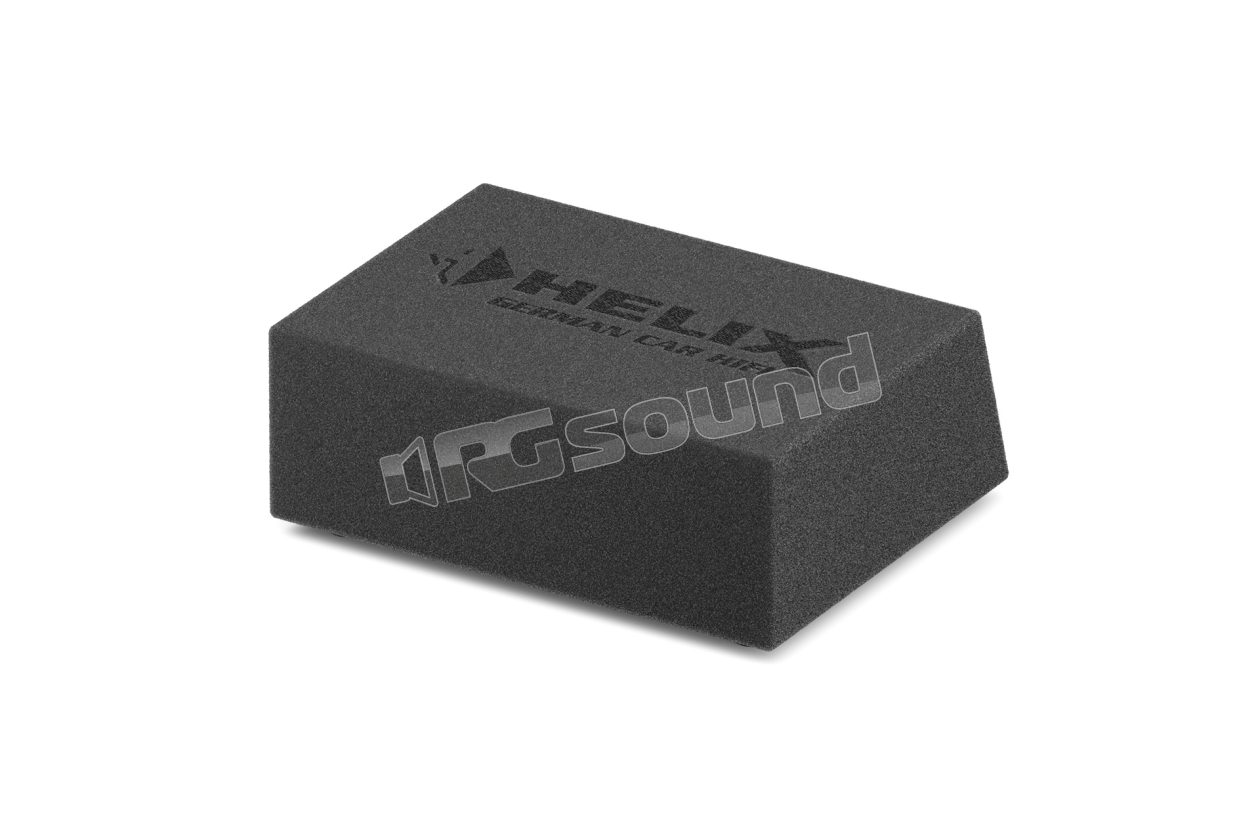

IK E10.1 DVC2 25 cm Enclosed Subwoofer

Helix
Your price:
€ 328,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Helix IK E10.1 DVC2 10" Downfire Compact Subwoofer - 300w RMS

HELIX IK E10.1 delivers deep and powerful bass in a space-saving design, ideal for those who desire rich low-frequency performance without the bulk of a traditional subwoofer.

The intelligent downfire structure ensures optimal bass dispersion within the vehicle. It uses the vehicle floor as an acoustic reflection surface to intensify low-frequency output, provides optimal protection for the speaker, and enables a slimmer design. Combined with bass-reflex technology and a powerful 250 mm chassis, it delivers dynamic bass experience with impressive sound pressure, while efficiently utilizing available space.

The IK E10.1 is equipped with the 250 mm IK W10 chassis. Its extremely rigid cone made from hand-collected paper fibers, combined with a heavy-duty driver system, easily converts amplifier power into great sound pressure without compression effects, achieving excellent sound results even with subtle beats.

The enclosure is lined with a robust carpet featuring an embroidered HELIX logo, making it not only visually appealing, but also durable enough for daily use. The feet, equipped with velcro tape, ensure safe and stable support inside the vehicle. Additionally, the snap-in screw terminal greatly simplifies installation and facilitates subwoofer removal when extra space is needed, while the detachable connector prevents short circuits, ensuring no exposed cables remain in the vehicle.

IK E10.1 DVC2 Features

  • Downfire enclosure for ideal bass dispersion in the vehicle and perfect speaker protection.
  • Compact enclosure design with port ensures high sound pressures and allows space-saving integration in the vehicle.
  • Equipped with a powerful 250 mm / 10" subwoofer with hand-crafted paper cone for rich and deep bass.
  • Voice coil impedance configurable via connection terminal for flexible system configuration: 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
  • Snap-in screw terminal for quick and safe installation and removal
  • Velcro tape feet for secure fastening inside the vehicle
  • Robust carpet surface with embroidered HELIX logo

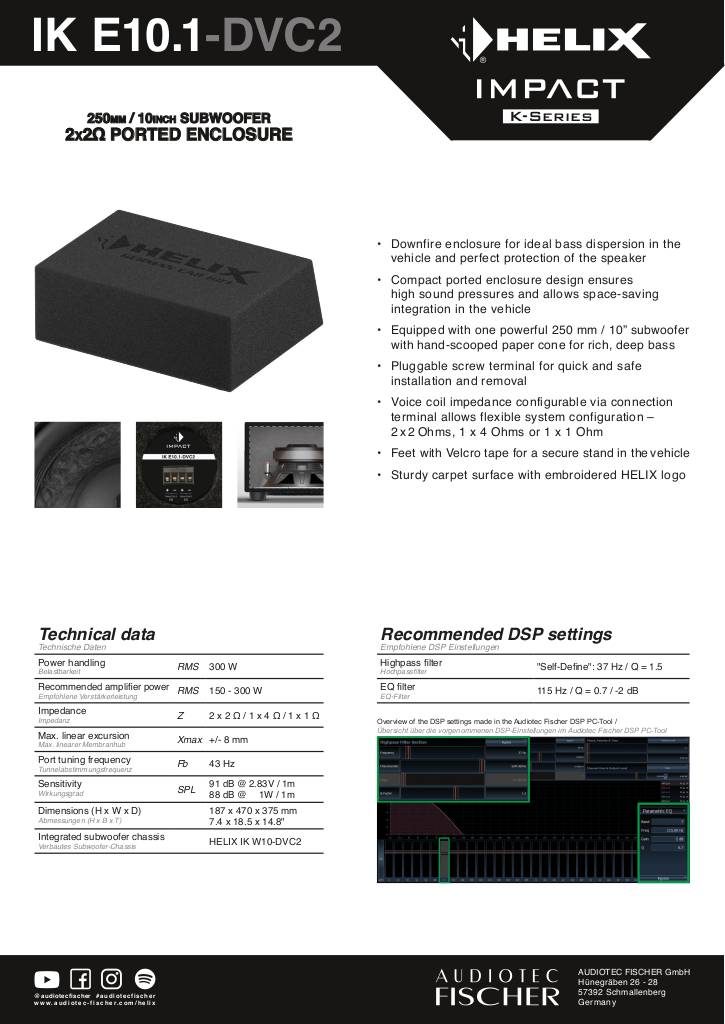

Scheda tecnica

n-20251010111731-ik-e10-1-dvc2.pdf

Helix IK E10.1 DVC2 Technical Specifications

  • RMS Power P 300 Watt
  • Recommended amplifier power RMS 150 - 300 Watt
  • Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
  • Maximum linear excursion Xmax +/- 8.0 mm
  • Port tuning frequency Fb 43 Hz
  • SPL Sensitivity
    • 91 dB @ 2.83 V / 1 m
    • 88 dB @ 1 W / 1 m
  • Dimensions (H x W x D)
    • 187 x 470 x 375 mm
    • 7.4 x 18.5 x 14.8"
  • Integrated subwoofer chassis HELIX IK W10-DVC2
  • Recommended DSP settings
    • "Auto-defined" high-pass 37 Hz / Q = 1.5
    • EQ filter: 115 Hz / Q = 0.7 / -2 dB
€ 328,00 Price incl. VAT
