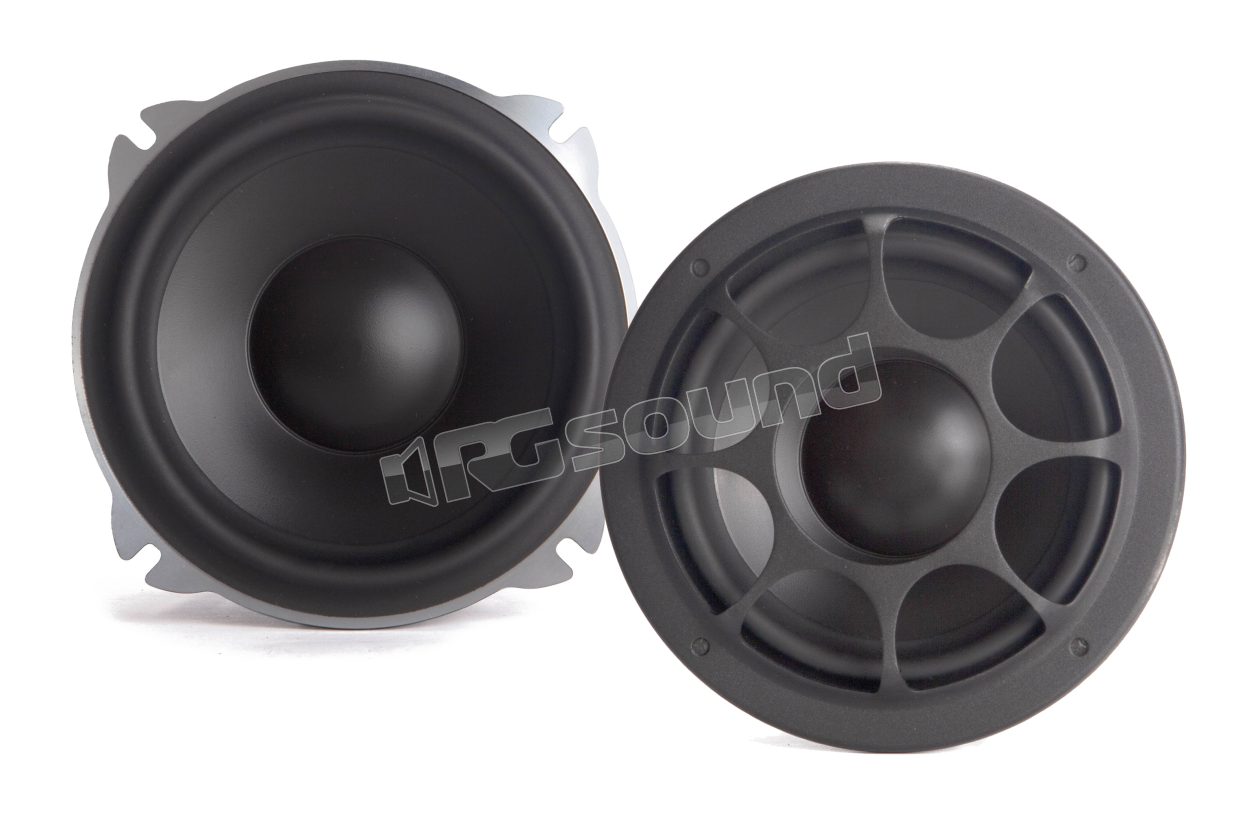

HYBRID MW5 MKII Pair of 13cm woofers with dedicated grilles

Morel
Your price:
€ 509,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
500 Watt
RMS Power
120 Watt
Frequency Response
45 - 3.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
0,6 Kg
Installation Depth
60 mm

Morel HYBRID MW5 MKII Pair of 13cm woofers with dedicated grilles

All Hybrid MW models incorporate Morel's core technologies. A 2" Hexatech aluminum external voice coil wound on an aluminum former allows stable, efficient and linear piston-like movement that significantly reduces distortion levels. Morel's optimized DPC cone forms a flat geometric plane that improves sound dispersion and dynamics, creating a realistic and three-dimensional sound presentation.


The new HYBRID woofer suspensions improve mechanical movement and membrane stability, giving it a very low distortion level at high power and improved dynamic range at low frequencies. The innovative design of the Hybrid MW woofer is the key to the powerful transient sound quality it delivers.

Morel HYBRID MW5 MKII Technical specifications

  • Nominal impedance 4 Ohm
  • Power handling 120 Watt rms
  • Maximum power (10ms) 500 Watt
  • Sensitivity (2.83 V/1 M) dB 90
  • Frequency response Hz 45-3,000
  • FS Hz 56
  • Voice coil diameter 54 mm (2.125")
  • Voice Coil Ex aluminum
  • Voice coil wire Hexatech aluminum
  • DC resistance ohm 3
  • Neodymium magnetic system with rear venting
  • Diameter 135 mm (5.25")
  • Mounting depth 60.00 (2.36)
  • Mounting hole diameter 120 mm (4.72)
  • Net weight Kg 0.60
€ 509,00 Price incl. VAT
