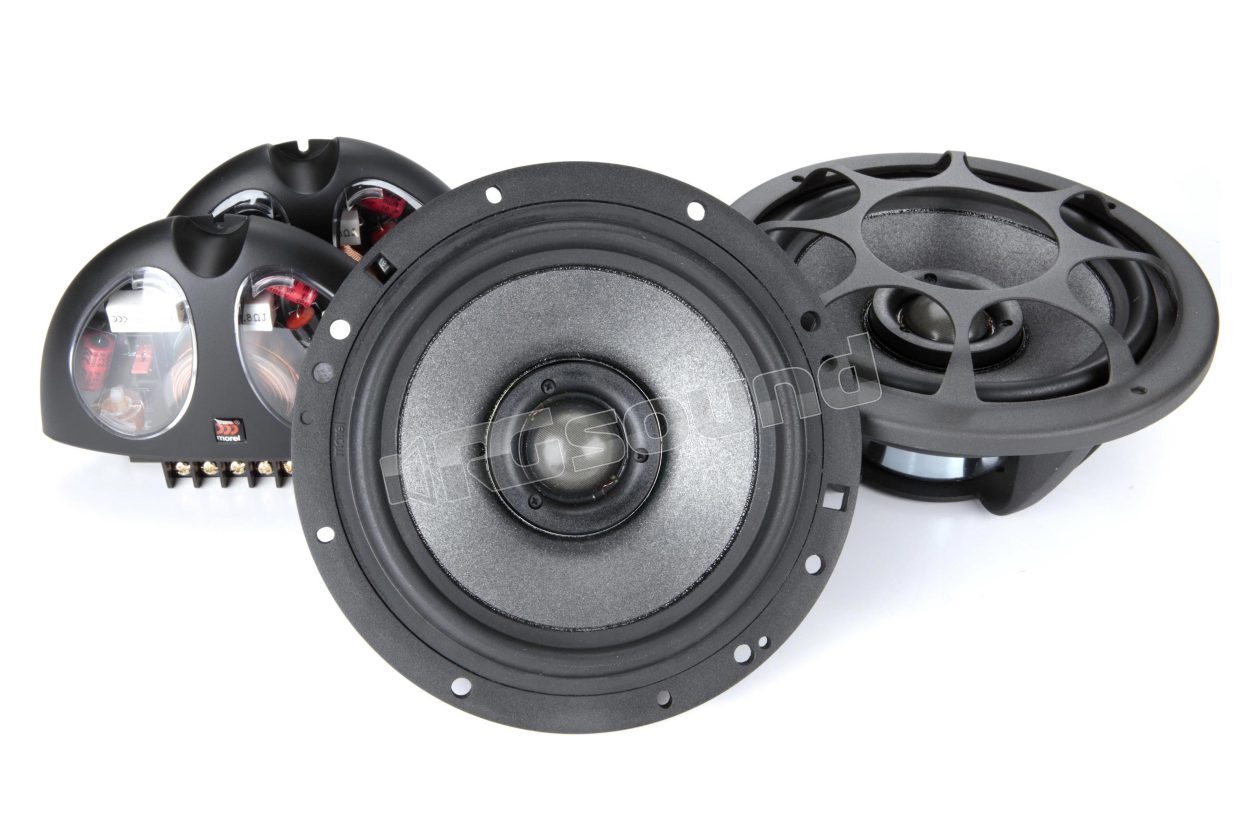

HYBRID INTEGRA 602 Hybrid Integra series 165mm coaxial speaker system

Morel

Discontinued

Your price:
€ 518,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
65 - 25000 Hertz
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Cono in carta composita
Tweeter Material
Cupola in seta

Morel HYBRID INTEGRA 602 two-way coaxial speaker kit 165mm with Hexatech technology, 2.1" (54 mm) voice coil and composite paper cone.

Awarded at CEA 2013 for its technological innovations, it expands the installation options of the Hybrid series. Morel's Integra concept minimizes phase error and allows the sound field to be constant in all directions, making it easy to achieve audiophile-level performance even when space is limited.

The driver components of Morel's Hybrid series are renowned for their reliability and distinctive sound. Every small part of that excellence is due to Morel's passion for sound and their insistence that every hand-assembled component of the Hybrid series is tested to meet their premium standards.

Their unique design allows them to fit multiple vehicles and they offer superb audio quality with excellent power handling. Morel hand-assembles its Hybrid Integra speakers and tests them to meet their rigorous standards.

The Integra Innovation
Morel's 2-way car speaker from Hybrid Integra 502 uses a dome tweeter recessed into the woofer cone to reduce phase issues and improve imaging. This "point source" design ensures a wider dispersion of high frequencies, even when off-axis. The paper composite woofer cone gives you strong and natural sound, while the soft silk dome tweeter is coated in Morel's unique Acuflex compound to improve damping, achieving cleaner highs. And the innovation doesn't stop there: External Voice Coil (EVC™) technology maximizes the voice coil size in these speakers for better heat dissipation and efficient performance.

External crossovers on a coaxial speaker? Yes, the Integra series external crossovers use hand-crafted components developed by Morel to deliver an ideal blend of highs and lows for incredible stereo imaging. Three levels of tweeter control allow you to tailor the sound in your car's environment.

Hybrid Integra kits are available in 100mm (Slim), 130mm and 165mm.

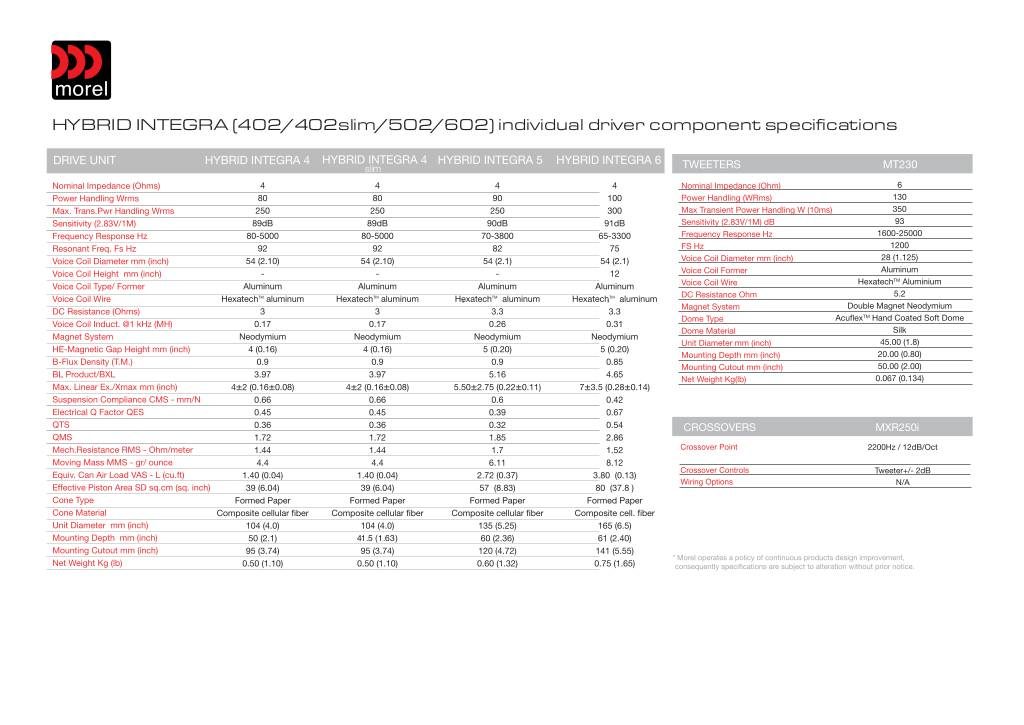

Scheda tecnica

n-20200625154858-hybrid-integra-specs-new.pdf

Morel HYBRID INTEGRA 602 technical specifications

Speaker size 165 mm (6.5")
2-way design
Dome Tweeter Design
Impedance (Ohm) 4
Tweeter composition silk
Woofer composition composite paper
Woofer surround rubber
Sensitivity at 2.83 volts 91 dB
Frequency response 65 - 25k Hz
RMS Power 100 Watt
Maximum Power 300 Watt
Mounting Depth 61 mm
Cutout Hole Diameter 141 mm

Discontinued
