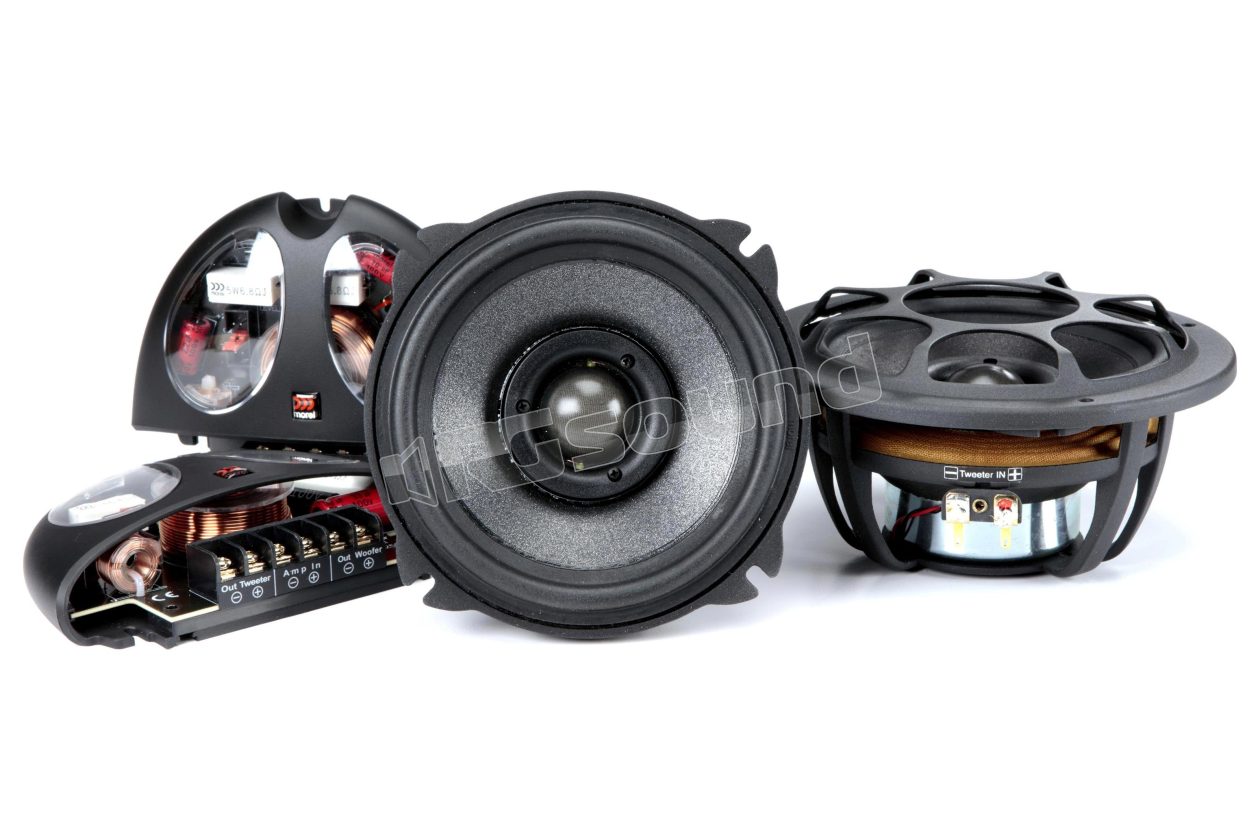

HYBRID INTEGRA 502 Hybrid Integra series 130mm coaxial speaker system

Morel

Discontinued

Your price:
€ 499,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way
Frequency Response
65 - 25000 Hertz
MAX Power
250 Watt
RMS Power
90 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cono in carta composita
Tweeter Material
Cupola in seta

Morel HYBRID INTEGRA 502 two-way 130mm coaxial speaker kit with Hexatech technology, 2.1" (54 mm) voice coil and paper composite cone.

Award winner at CEA 2013 for its technological innovations, it expands the installation options of the Hybrid series. Morel's Integra concept minimizes phase error and allows the sound field to be constant in all directions, making it easy to achieve audiophile-level performance even when space is limited.

The speakers in Morel's Hybrid series are renowned for their reliability and distinctive sound. Every small part of that excellence is due to Morel's passion for sound and their insistence that every handmade component of the Hybrid series be tested to meet their premium standards.

Their unique design allows them to fit more vehicles and they offer superb audio quality with excellent power handling. Morel handcrafts its Hybrid Integra speakers and tests them to meet their rigorous standards.

The Integra Innovation
Morel's Hybrid Integra 502 2-way car speaker uses a dome tweeter embedded in the woofer cone to reduce phase issues and improve imaging. This "point source" design ensures wider high-frequency dispersion, even when off-axis. The paper composite woofer cone gives you strong and natural sound, while the soft silk dome tweeter is coated in Morel's unique Acuflex compound to improve damping, achieving cleaner highs. And the innovation doesn't stop there: External Voice Coil (EVC™) technology maximizes the voice coil size in these speakers for better heat dissipation and efficient performance.

External crossovers on a coaxial speaker? Yes, the Integra series external crossovers use handcrafted components developed by Morel to deliver an ideal blend of highs and lows for incredible stereo imaging. Three tweeter control levels allow you to tailor the audio in your car's environment.


Hybrid Integra kits are available from 100mm (Slim), 130mm and 165mm.

Scheda tecnica

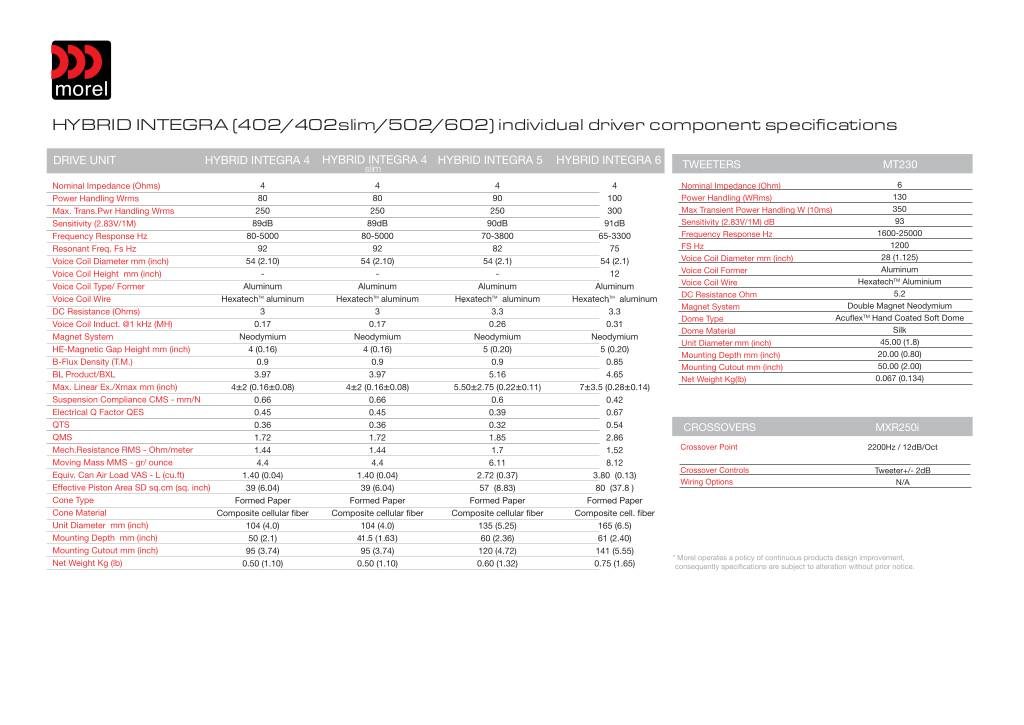

n-20200625154437-hybrid-integra-specs-new.pdf

Morel HYBRID INTEGRA 502 technical specifications

Speaker size 130 mm (5")
2-way design
Dome tweeter design
Impedance (Ohm) 4
Silk tweeter composition
Woofer composition paper composite
Woofer surround rubber
Sensitivity at 2.83 volts 90 dB
Frequency response 65 - 25k Hz
RMS power 90 Watt
Maximum power 250 Watt
Mounting depth 60 mm
Cut-out hole diameter 120 mm

Discontinued
