HYBRID INTEGRA 402 (Slim) Hybrid Integra series 100mm speaker system

Morel

Discontinued

Your price:
€ 480,00
Price per single item (VAT included)
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
80 - 25.000 Hertz
MAX Power
250 Watt
RMS Power
80 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Cono in carta composita
Tweeter Material
Cupola in seta

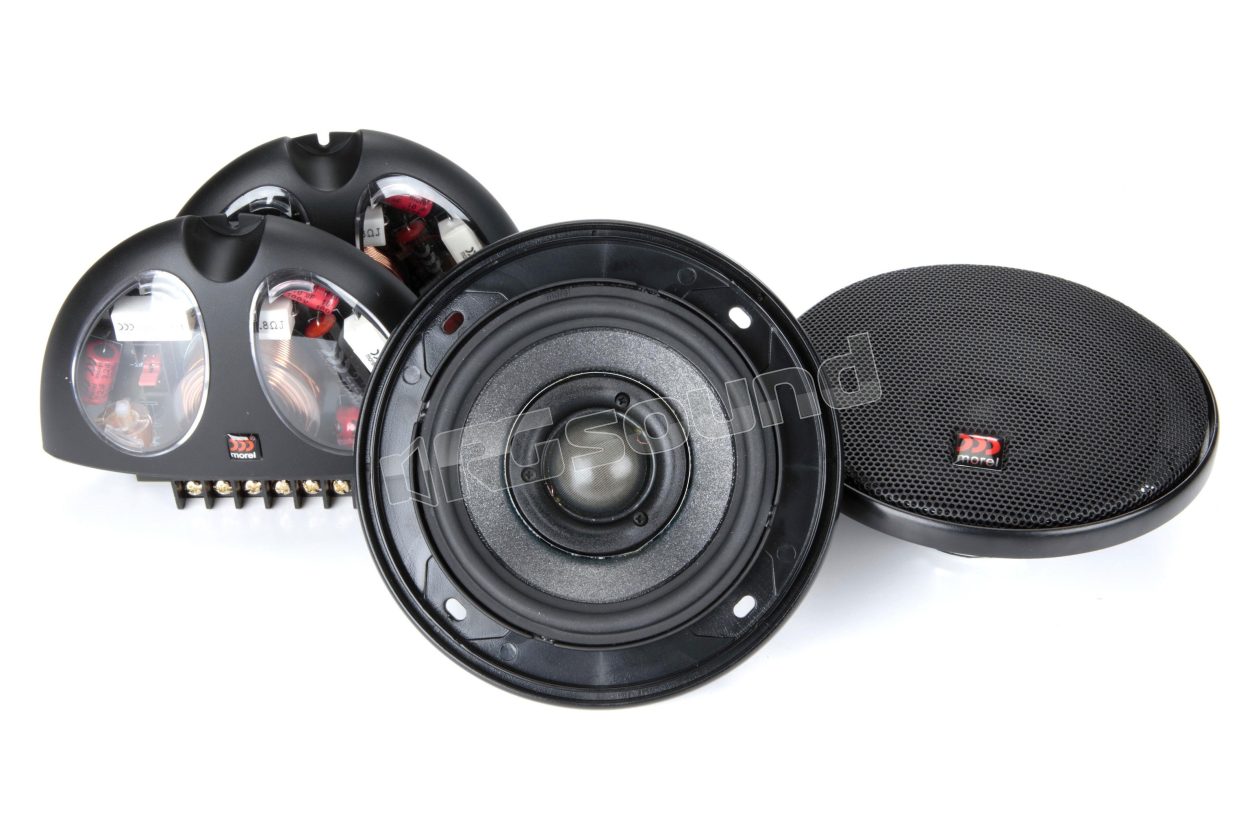

Morel HYBRID INTEGRA 402 (Slim) two-way 100mm speaker kit with Hexatech technology, 2.1" (54 mm) voice coil and composite paper cone.

Award winner at CEA 2013 for its technological innovations, it expands the installation options of the Hybrid series. Morel's Integra concept minimizes phase error and allows the sound field to be constant in all directions, making it easy to achieve audiophile-level performance even when space is limited.

The speaker components of Morel's Hybrid series are famous for their reliability and distinctive sound. Every small part of that excellence is due to Morel's passion for sound and their insistence that every hand-made Hybrid series component is tested to meet their premium standards.

Their unique design allows them to fit more vehicles and offers superb audio quality with excellent power handling. Morel hand-crafts its Hybrid Integra speakers and tests them to meet their rigorous standards.

The Integra Innovation
Morel's Hybrid Integra 402 2-way car speaker uses a dome tweeter recessed into the woofer cone to reduce phase issues and improve imaging. This "point source" design ensures wider high frequency dispersion, even when off-axis. The paper composite woofer cone gives you strong and natural sound, while the soft silk dome tweeter is coated in Morel's unique Acuflex compound to improve damping, achieving cleaner highs. And the innovation doesn't stop there: External Voice Coil (EVC™) technology maximizes the voice coil size in these speakers for better heat dissipation and efficient performance.

External crossovers on a coaxial speaker? Yes, the Integra series external crossovers use hand-crafted components developed by Morel to provide an ideal blend of highs and lows for incredible stereo imaging. Three tweeter control levels allow you to tune the audio in your car's environment.


Hybrid Integra kits are available in 100mm (Slim), 130mm and 165mm.

Scheda tecnica

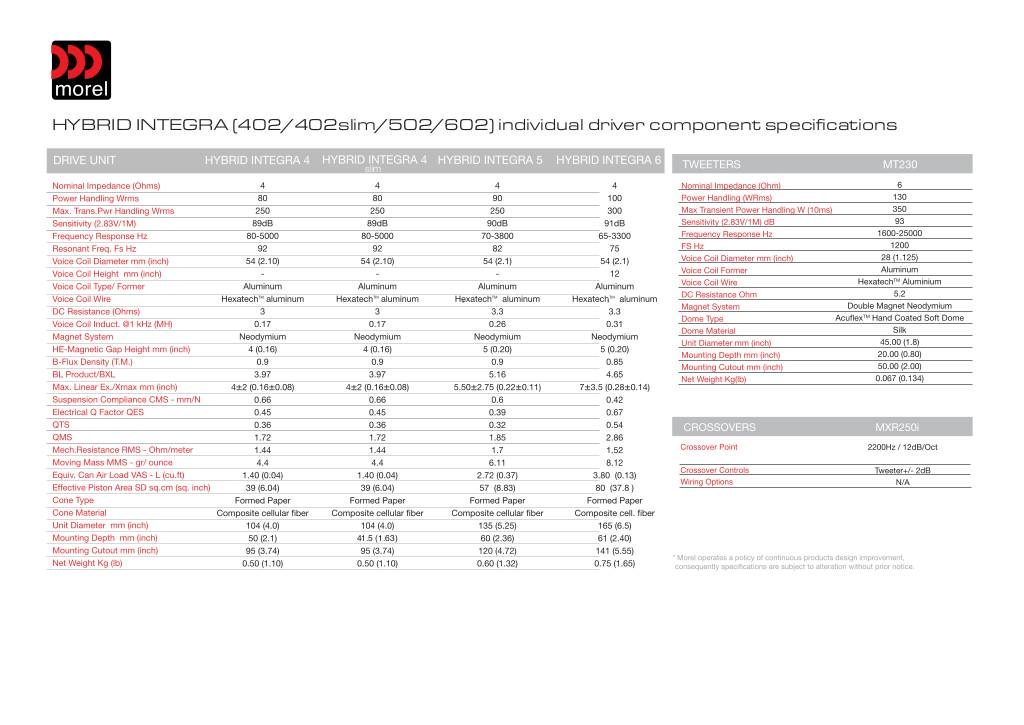

n-20200624155617-hybrid-integra-specs-new.pdf

Morel HYBRID INTEGRA 402 technical specifications

Speaker size 100 mm (4")
2-way design
Dome tweeter design
Impedance (Ohm) 4
Silk tweeter composition
Woofer composition composite paper
Woofer surround rubber
Sensitivity at 2.83 volts 89 dB
Frequency response 80 - 25k Hz
RMS Power 80 Watt
Maximum power 250 Watt
Mounting depth 41 mm
Mounting hole diameter 93 mm

Discontinued
