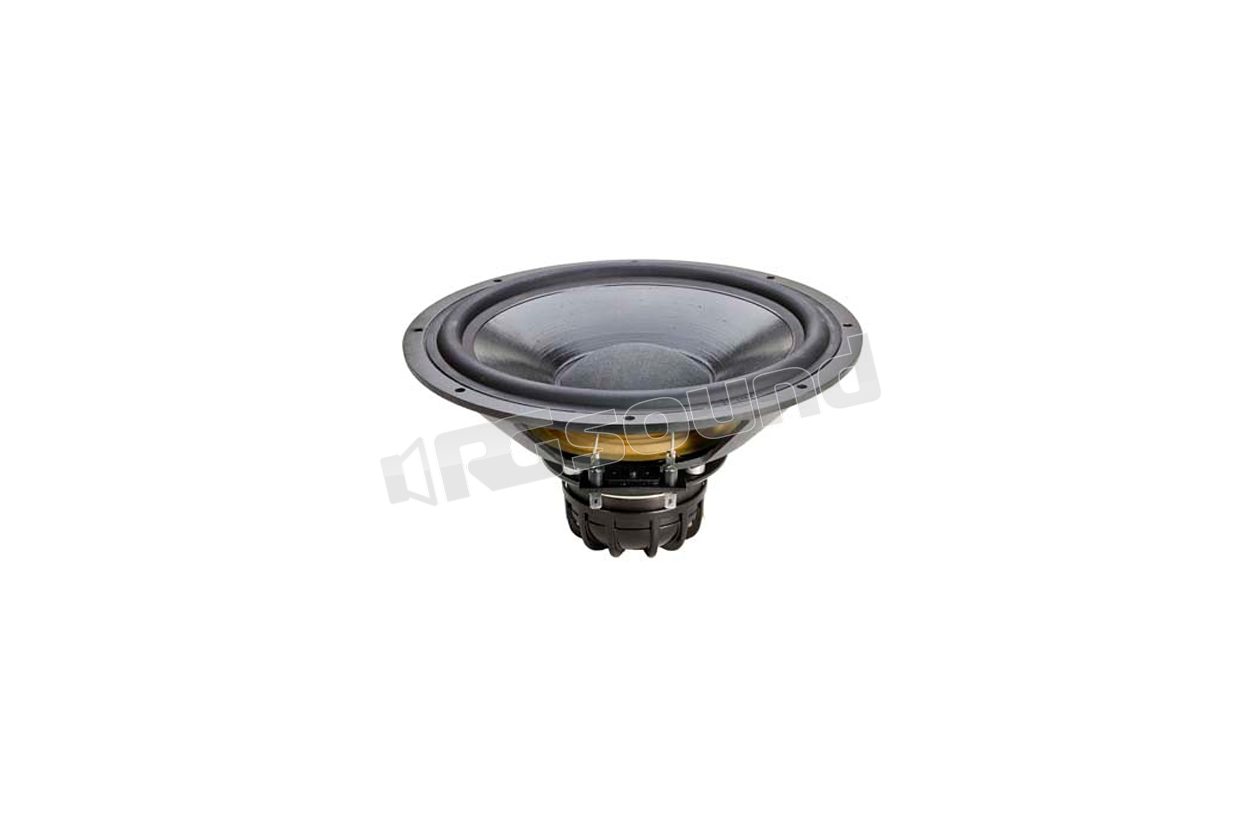

HX255 Max power 200W - Diameter 250mm

Ciare

Discontinued

Your price:
€ 294,10
Price per single item (VAT included)
Type
Coaxial
Speaker Size
250 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
45 - 20.000 Hertz
Sensitivity
92.5 dB
Impedance
8 Ohm
Weight
2,28 Kg
Installation Depth
131,5 mm
Voice Coil Diameter
50 mm

Ciare HX255 coaxial 250mm with damped cellulose membrane, rubber suspension, Kapton compression driver, monolithic neodymium magnet, flange without gasket. The coaxials of the HX series use a long-fiber cellulose pulp cone woofer and a dome driver with damped kapton membrane. The two distinct concentric voice coils are immersed in a powerful magnetic field generated by a single, thin, neodymium ring.

A complex design solution that, in addition to providing the concentricity of the two emission centers, guarantees minimal acoustic phase shift. Three truly full-range components, capable of faithful and high-dynamic reproduction of the entire sound spectrum, with a virtual reconstruction of the stage always precise, stable and independent of the listening position.

Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allow the company to achieve the highest quality standards in the realization of each component.

HX255 Features

  • Max power: 200W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 250mm
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 92.5 dB

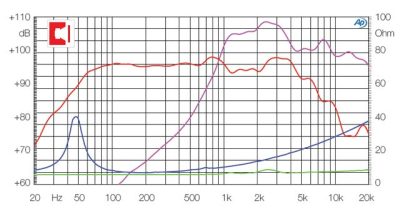

  • Frequency response 45 - 20.000 Hz
  • Recommended enclosure type: Sealed
  • Recommended sealed volume: 75 dm3

HX255 Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 8 mm

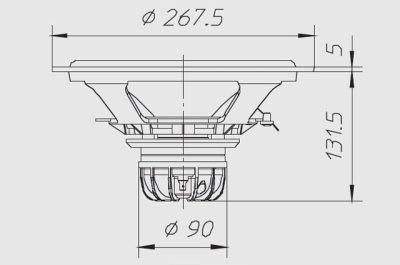

HX255 Dimensions

  • Outer diameter: 267.5 mm
  • Sub-flange depth: 131.5 mm
  • Flange thickness: 5 mm
  • Panel hole: 235 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 6 mm
  • Mounting hole position diameter: 253
  • Weight with single packing: 2.28 Kg

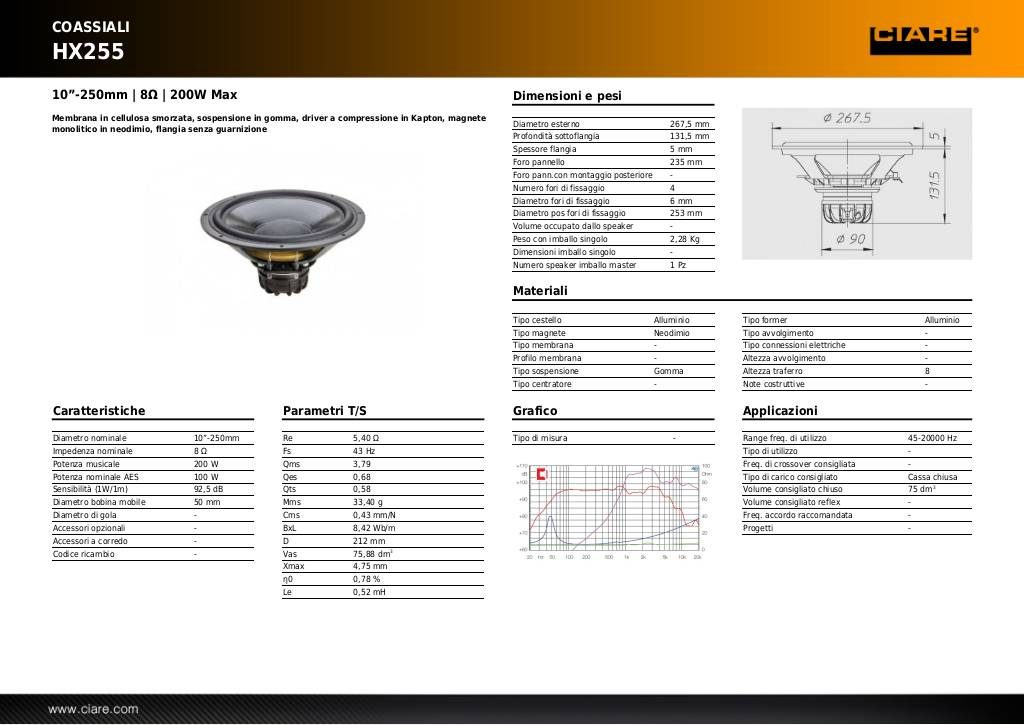

Scheda tecnica

20131104180443-hx255.pdf
