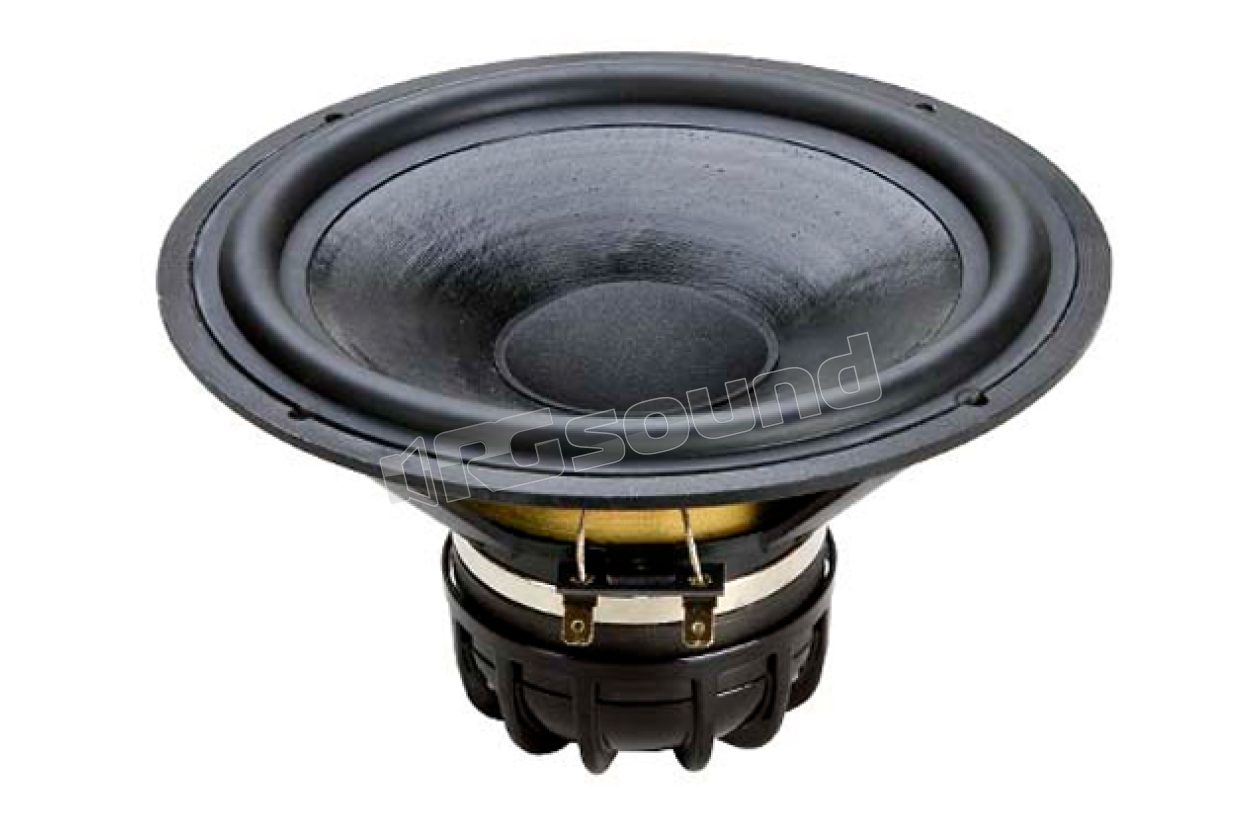

HX205 Max power 200W - Diameter 200mm

Ciare

Discontinued

Your price:
€ 261,10
Price per single item (VAT included)
Type
Coaxial
Speaker Size
165 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
55 - 20.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
1,75 Kg
Installation Depth
114 mm
Voice Coil Diameter
50 mm

Ciare HX205 200mm coaxial with damped cellulose membrane, rubber suspension, Kapton compression driver, monolithic neodymium magnet, flange without gasket. The coaxial speakers of the HX series use a long-fiber cellulose pulp cone woofer and a dome driver with damped kapton membrane. The two distinct concentric mobile coils are immersed in a powerful magnetic field generated by a single, thin, neodymium ring.

A complex design solution that, in addition to providing the concentricity of the two emission centers, guarantees minimal acoustic phase shift. Three truly full-range components, capable of faithful and highly dynamic reproduction of the entire sound spectrum, with a virtual stage reconstruction that is always precise, stable and independent of the listening position.

Ciare is a company constantly in step with technological innovations and under continuous stimulus from market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization allow the company to achieve the highest quality standards in the realization of every component.

HX205 Features

  • Max power: 200W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 200mm
  • Mobile coil diameter: 50mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency response 55 - 20,000 Hz
  • Recommended load type: Closed enclosure
  • Recommended closed volume: 38 dm3

HX205 Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 8 mm

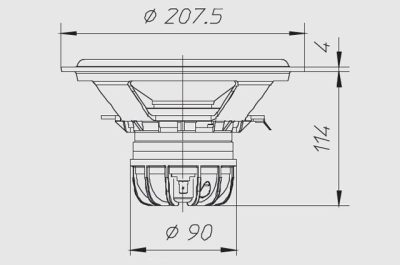

HX205 Dimensions

  • Outer diameter: 207.5 mm
  • Sub-flange depth: 114 mm
  • Flange thickness: 4 mm
  • Panel hole: 184 mm
  • Number of mounting holes: 4
  • Diameter of mounting holes: 5 mm
  • Diameter pos. mounting holes: 194
  • Weight with single packaging: 1.75 Kg

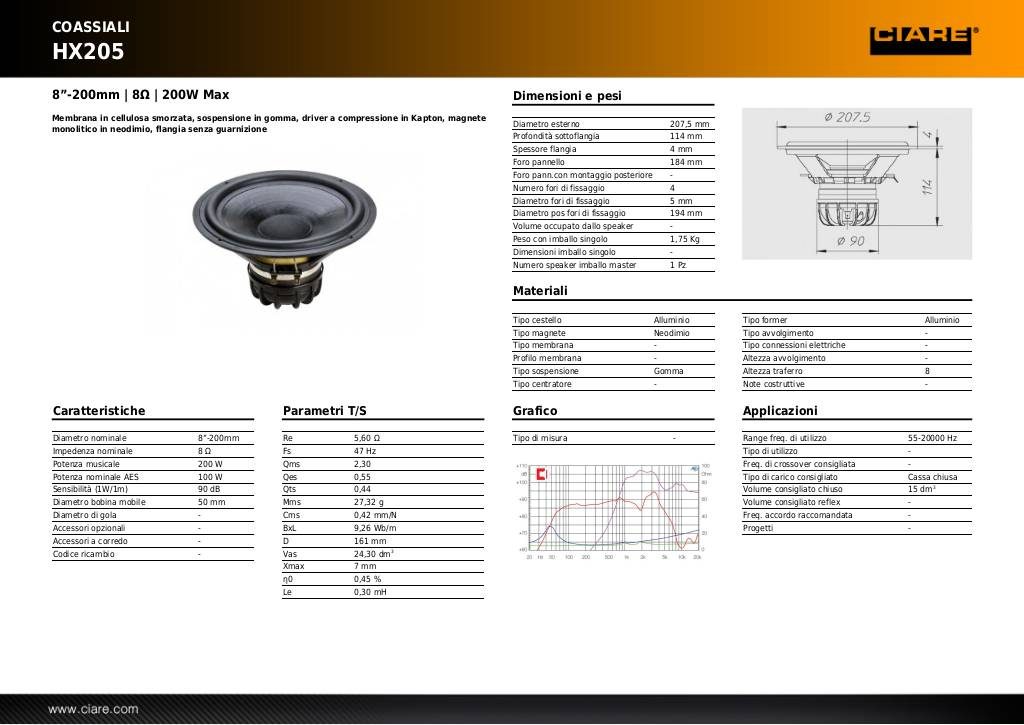

Scheda tecnica

20131104154233-hx205.pdf

1 Ciare HX205 coaxial speaker at 8 Ohm
