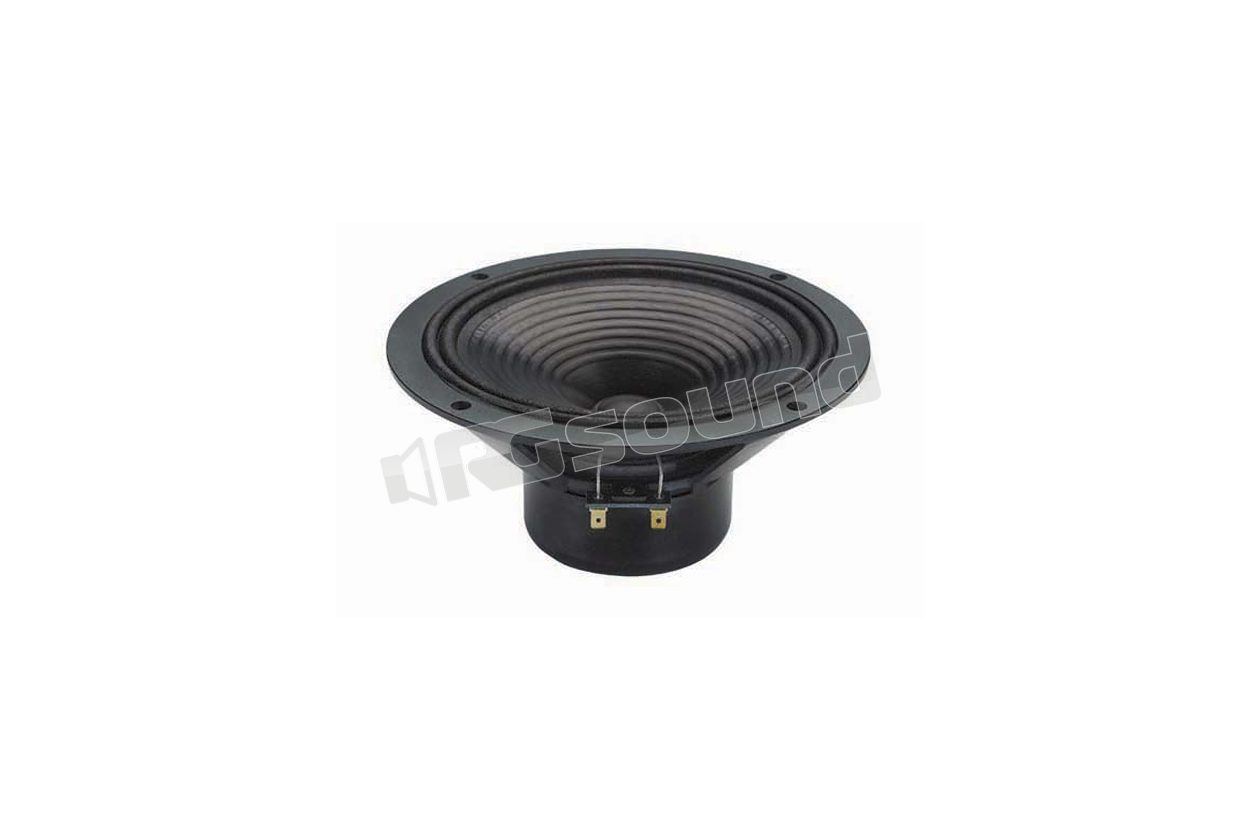

HX201 Max power 90W - Diameter 200mm

Ciare

Discontinued

Your price:
€ 194,10
Price per single item (VAT included)
Type
Midrange
Speaker Size
200 mm
MAX Power
90 Watt
RMS Power
40 Watt

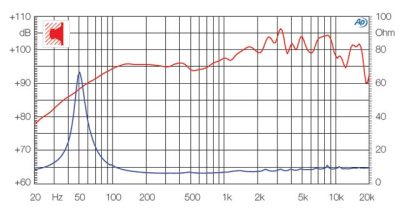

Frequency Response
50 - 18.000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
1,2 Kg
Installation Depth
89 mm
Voice Coil Diameter
25 mm

HX201 full-range 200mm with cellulose membrane, damped canvas suspension, shielded neodymium magnet. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest standards of quality in the realization of every component.

HX201 Features

  • Max power: 90W
  • Nominal power: 40W
  • Nominal impedance: 8Ω
  • Diameter: 200mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 96 dB
  • Frequency response 50-18,000 Hz
  • Recommended load type: Sealed enclosure
  • Recommended sealed volume: 38 dm3

HX201 Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Treated canvas
  • Former type: Kapton
  • Gap height: 4 mm

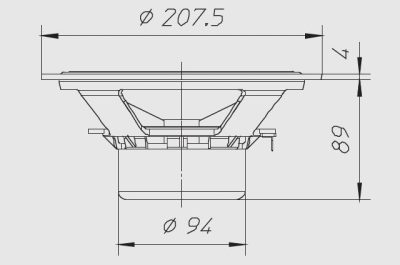

Dimensions

  • Outer diameter: 207.5 mm
  • Depth under flange: 89 mm
  • Flange thickness: 4 mm
  • Panel hole: 184 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 194
  • Weight with single packaging: 1.20 Kg

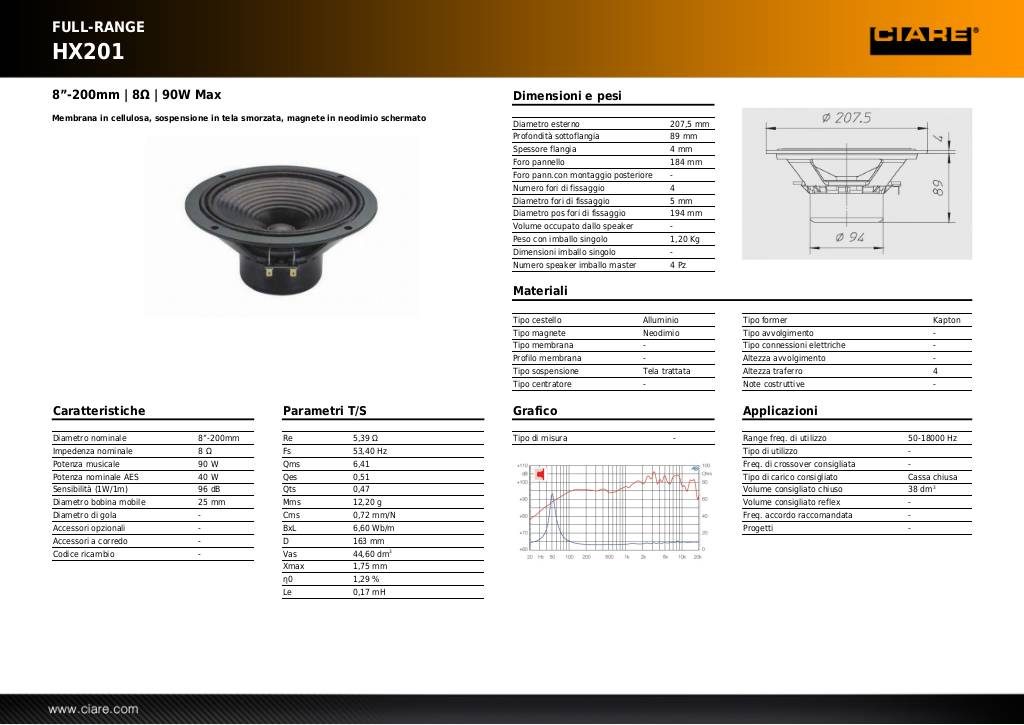

Scheda tecnica

20131104152615-hx201.pdf

1 Ciare midrange full range 8 Ohm speaker HX201
Discontinued
