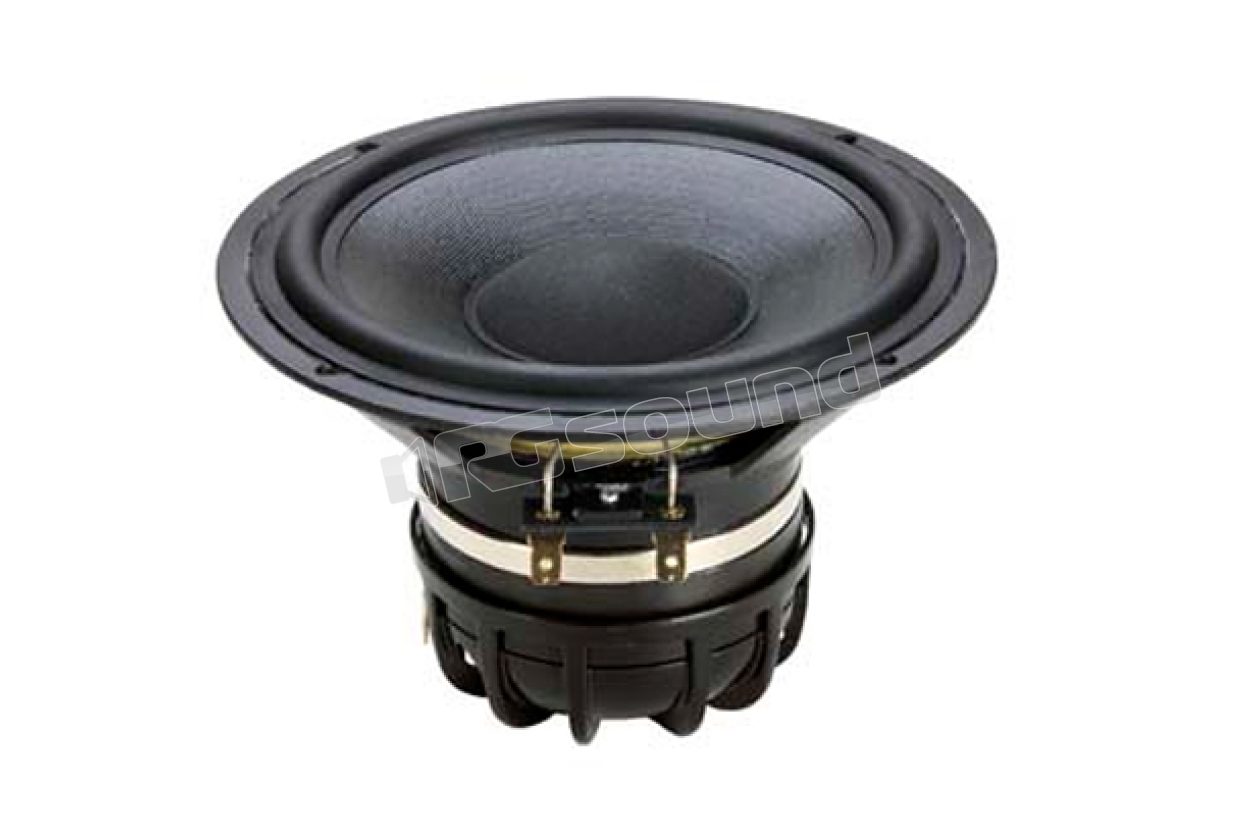

HX165 Max power 200W - Diameter 165mm

Ciare

Discontinued

Your price:
€ 234,00
Price per single item (VAT included)
Type
Coaxial
Speaker Size
165 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
60 - 18.000 Hertz
Sensitivity
91.5 dB
Impedance
8 Ohm
Weight
1,63 Kg
Installation Depth
102 mm
Voice Coil Diameter
50 mm

Ciare HX165 coaxial with damped cellulose membrane, rubber suspension, Kapton compression driver, monolithic neodymium magnet, gasket-free flange. The coaxials of the HX series use a long-fiber cellulose pulp cone woofer and a dome driver with damped kapton membrane. The two distinct concentric voice coils are immersed in a powerful magnetic field generated by a single, thin, neodymium ring.

A complex design solution that, in addition to providing the concentricity of the two emission centers, guarantees minimal acoustic phase shift. Three truly full-range components, capable of faithful and high dynamic reproduction of the entire sound spectrum, with a virtual stage reconstruction that is always precise, stable and independent from the listening position.

Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allow the company to achieve the highest quality standards in the realization of every component.

HX165 Features

  • Max power: 200W
  • Nominal power: 100W - 70W (HF)
  • Nominal impedance: 8Ω / 8Ω (HF)
  • Diameter: 165mm
  • Voice coil diameter: 50mm - 44mm (HF)
  • Sensitivity 1W/1m: 91.5 dB - 100dB (HF)
  • Frequency response 60-18,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 7 dm3
  • Recommended tuning frequency: 82 Hz

HX165 Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Rubber
  • Former type: Aluminum
  • Electrical connection type: Faston - Faston (HF)
  • Air gap height: 8 mm

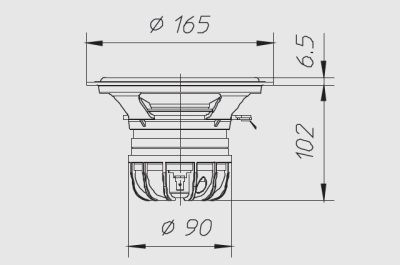

HX165 Dimensions

  • External diameter: 165 mm
  • Depth from flange: 102 mm
  • Flange thickness: 6.5 mm
  • Panel hole: 147 mm
  • Number of mounting holes: 4
  • Diameter of mounting holes: 5 mm
  • Diameter position mounting holes: 154
  • Weight with single package: 1.63 Kg

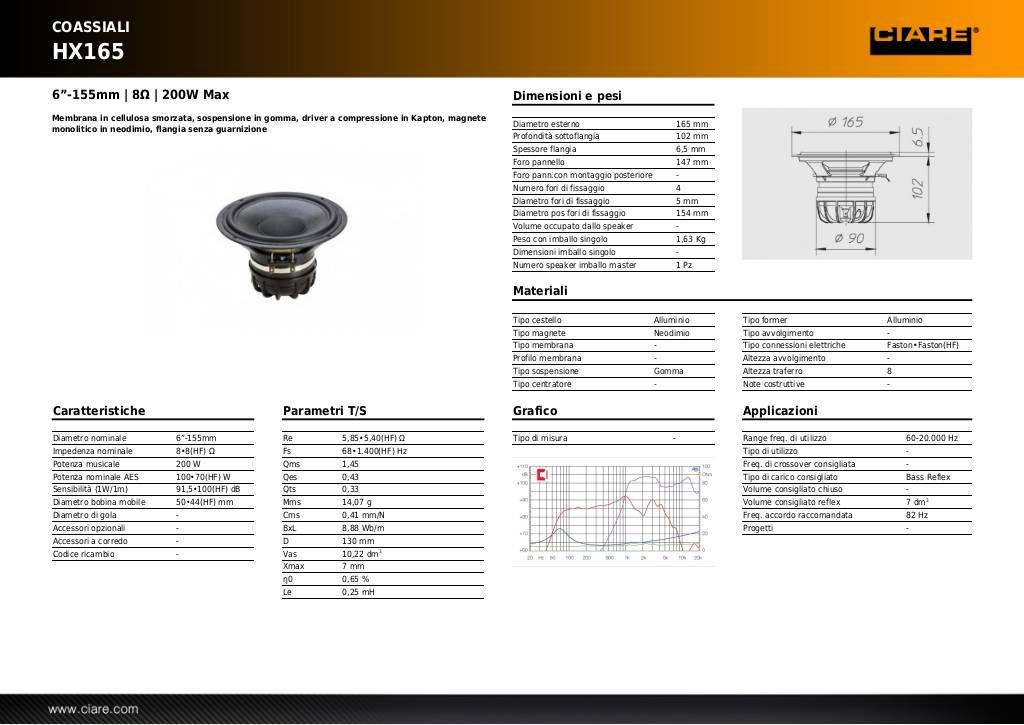

Scheda tecnica

20131104150356-hx165.pdf

1 Speaker at 8 Ohm Ciare coaxial HX165
Discontinued
