HX160 Max power 80W - Diameter 180mm

Ciare

Discontinued

Your price:
€ 150,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
180 mm
MAX Power
90 Watt
RMS Power
40 Watt
Frequency Response
60 - 18.000 Hertz
Sensitivity
95 dB
Impedance
8 Ohm
Weight
1,1 Kg
Installation Depth
81 mm
Voice Coil Diameter
25 mm

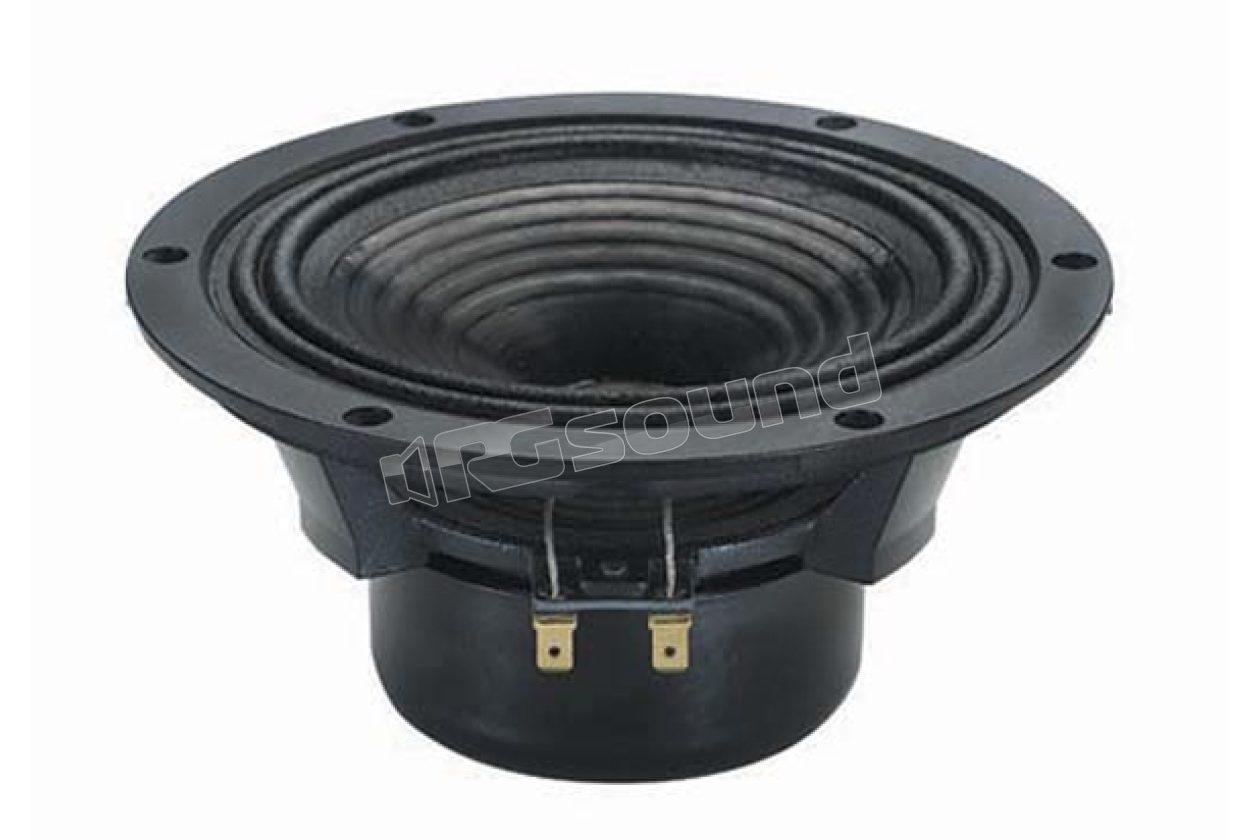

Ciare HX160 full-range 180mm with cellulose membrane, damped fabric suspension, shielded neodymium magnet. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HX160 Features

  • Max power: 90W
  • Nominal power: 40W
  • Nominal impedance: 8Ω
  • Diameter: 180mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 95 dB
  • Frequency response 60-18,000 Hz
  • Recommended load type: Sealed enclosure
  • Recommended sealed volume: 10 dm3

HX160 Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Treated fabric
  • Former type: Kapton
  • Air gap height: 4 mm

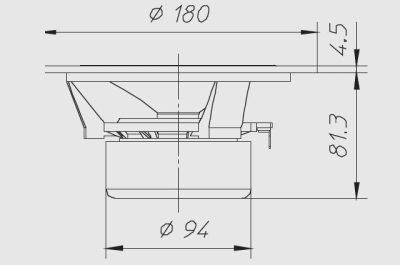

HX160 Dimensions

  • External diameter: 180 mm
  • Depth below flange: 81.3 mm
  • Flange thickness: 4.5 mm
  • Panel hole: 145 mm
  • Number of mounting holes: 6
  • Mounting hole diameter: 4.5 mm
  • Mounting hole position diameter: 167
  • Weight with single package: 1.14 Kg

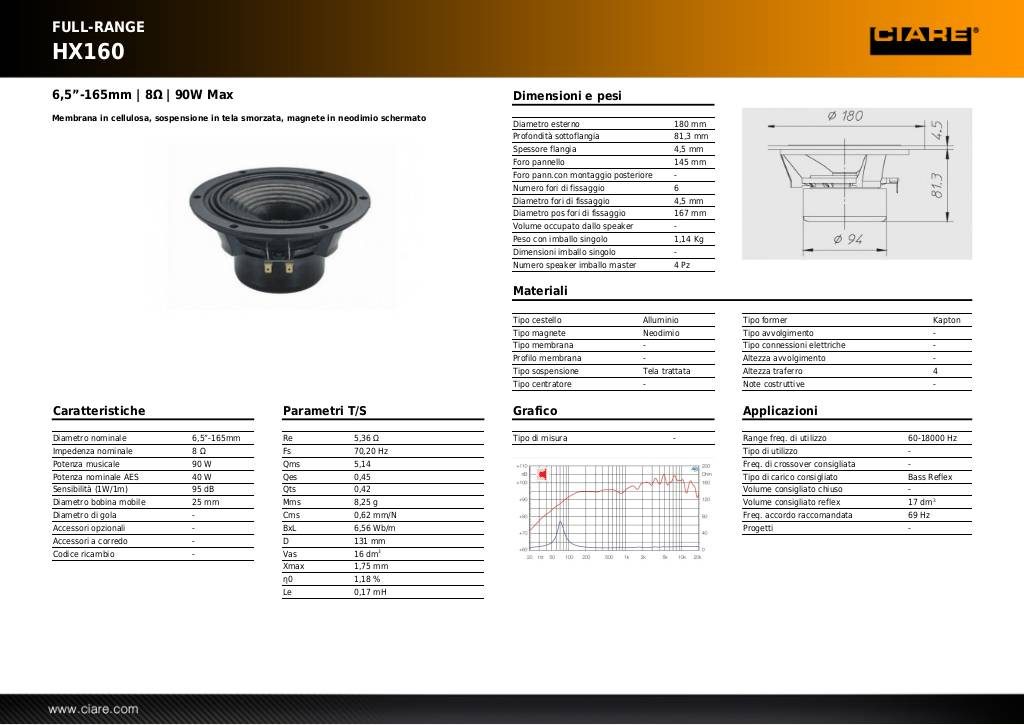

Scheda tecnica

20131104125400-hx160.pdf

1 Ciare HX160 midrange full range speaker 8 Ohm
Discontinued
