HX132 Max power 80W - Diameter 150mm

Ciare

Discontinued

Your price:
€ 82,10
Price per single item (VAT included)
Type
Midrange
Speaker Size
150 mm
MAX Power
80 Watt
RMS Power
40 Watt

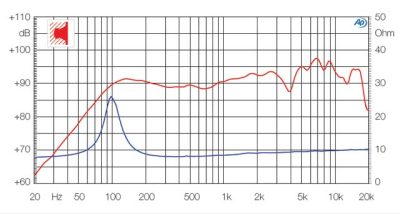

Frequency Response
60 - 18.000 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
1 Kg
Installation Depth
70 mm
Voice Coil Diameter
25 mm

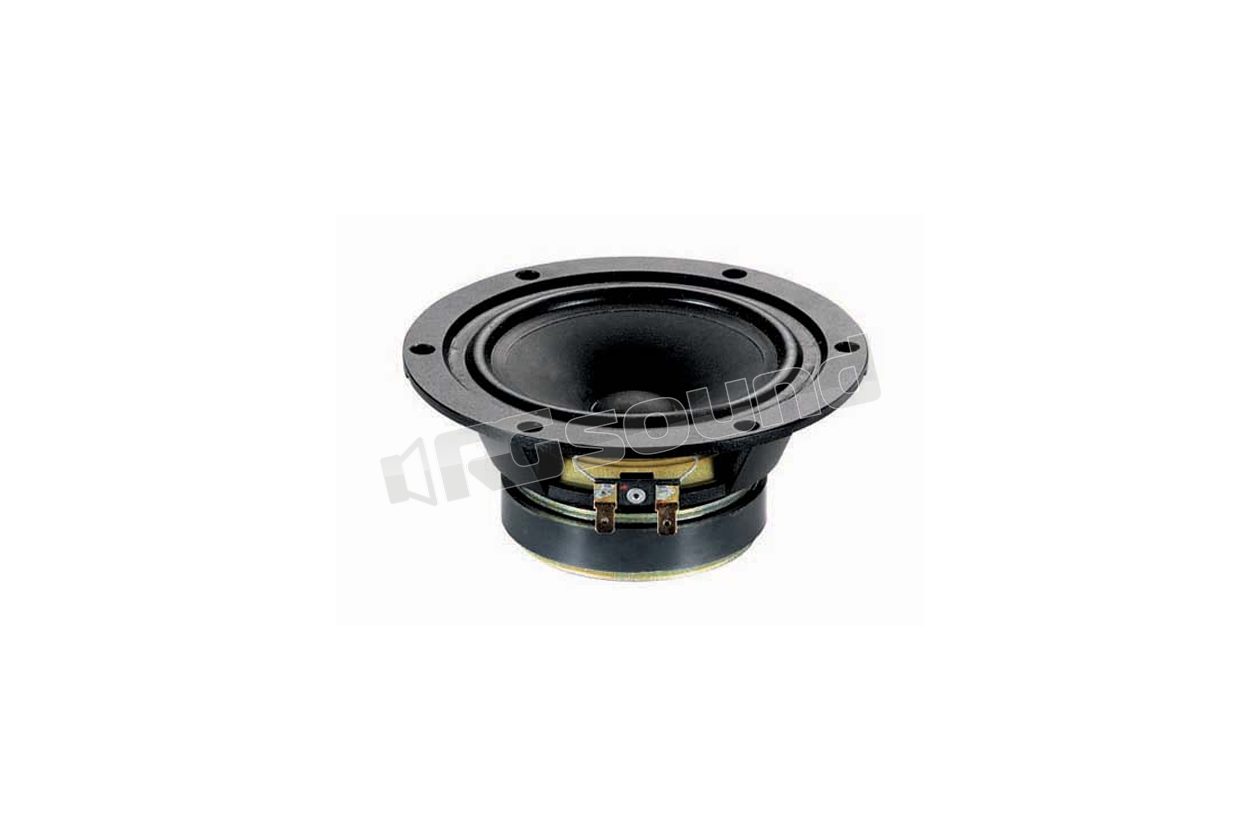

Ciare HX132 full-range 150mm with cellulose membrane, rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under continuous stimulation from market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HX132 Features

  • Max power: 80W
  • Nominal power: 40W
  • Nominal impedance: 8Ω
  • Diameter: 150mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 89 dB
  • Frequency response 60-18,000 Hz

HX132 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Treated cloth
  • Former type: Aluminum
  • Gap height: 5 mm

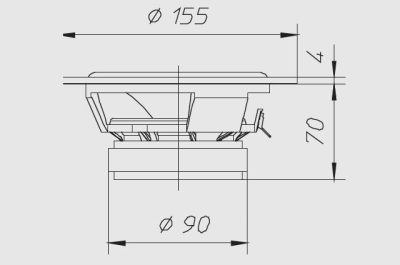

HX132 Dimensions

  • Outer diameter: 155 mm
  • Depth below flange: 70 mm
  • Flange thickness: 4 mm
  • Panel cutout: 122 mm
  • Number of mounting holes: 6
  • Mounting hole diameter: 4.5 mm
  • Mounting hole position diameter: 141
  • Weight with single packaging: 1.02 Kg

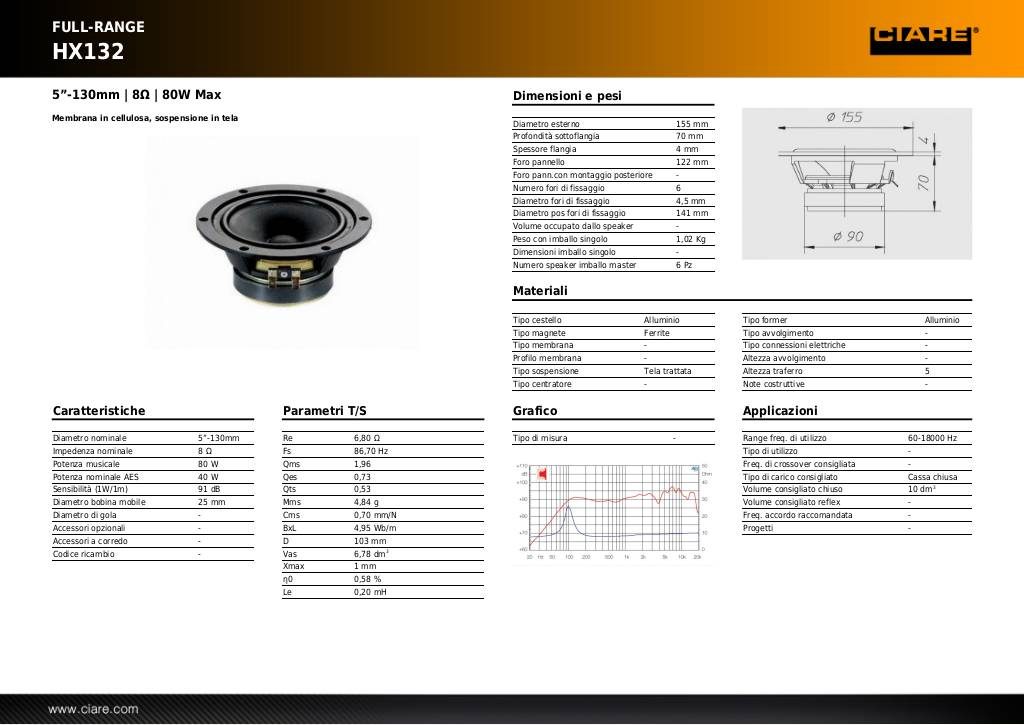

Scheda tecnica

20131104124213-hx132.pdf

1 Ciare HX132 midrange full range speaker 8 Ohm
Discontinued
