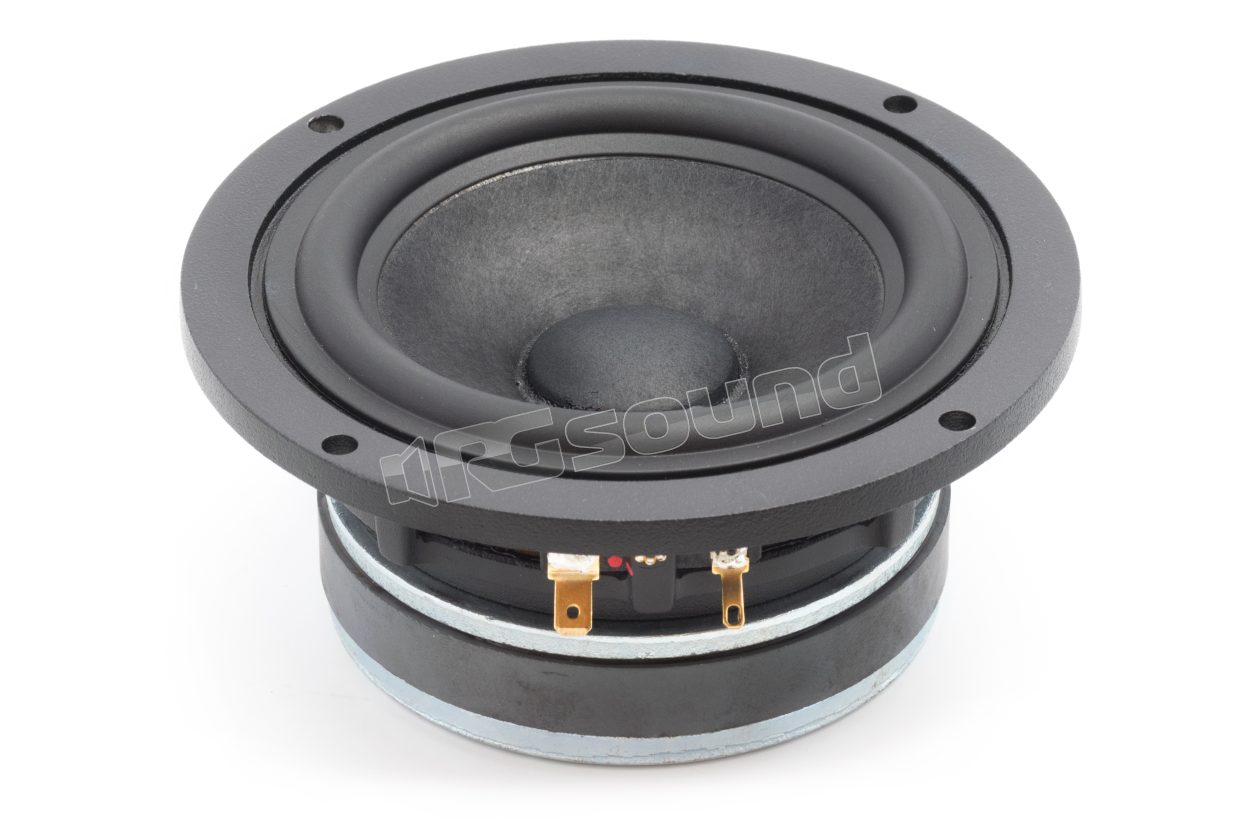

HX101 Max power 80W - Diameter 100mm

Ciare

Discontinued

Your price:
€ 76,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
100 mm
MAX Power
80 Watt
RMS Power
40 Watt
Frequency Response
60 -18.000 Hertz
Sensitivity
89 dB
Impedance
8 Ohm
Weight
0,9 Kg
Installation Depth
46,5 mm
Voice Coil Diameter
25 mm

Ciare HX101 full-range 100mm with cellulose cone, rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product creation, allowing the company to achieve the highest standards of quality in the realization of every component.

HX101 Features

  • Max power: 80W
  • Nominal power: 40W
  • Nominal impedance: 8Ω
  • Diameter: 100mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 89 dB

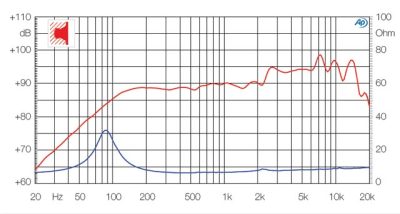

  • Frequency response 60-18,000 Hz
  • Recommended enclosure type: Sealed
  • Recommended sealed volume: 2.5 dm3

HX101 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Kapton
  • Air gap height: 5 mm

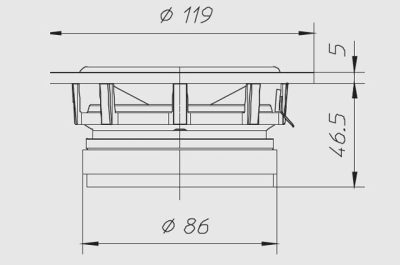

HX101 Dimensions

  • Outer diameter: 119 mm
  • Depth under flange: 46.5 mm
  • Flange thickness: 5 mm
  • Panel cutout: 96 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 4.5 mm
  • Mounting hole position diameter: 110
  • Weight with single packaging: 0.90 Kg

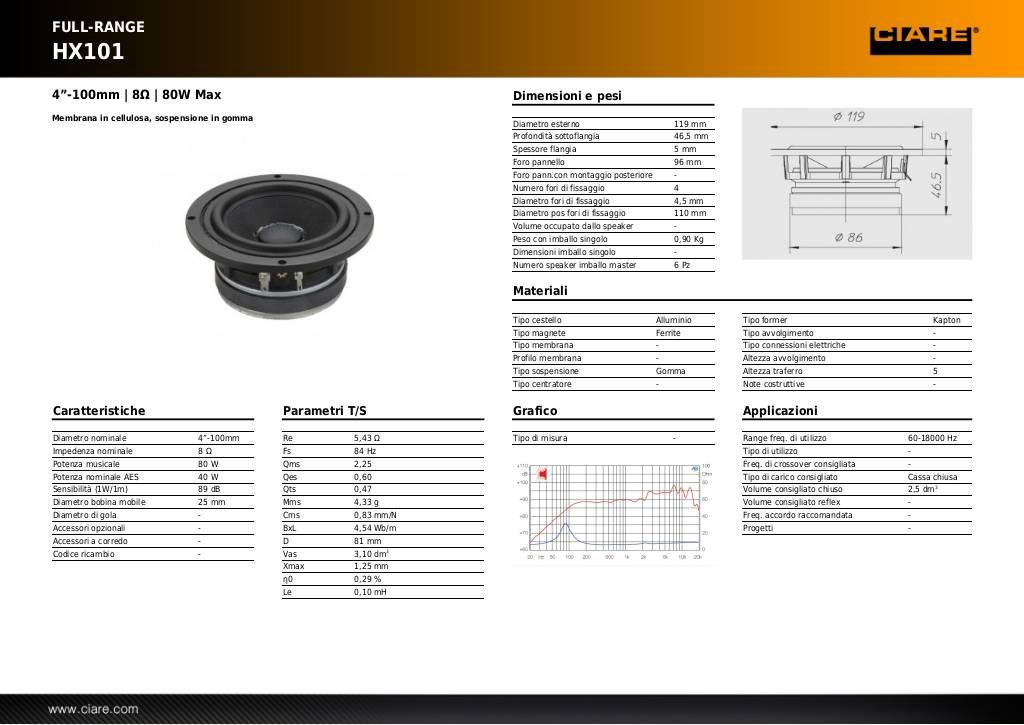

Scheda tecnica

20131104123358-hx101.pdf

1 Speaker 8 Ohm Ciare midrange full range HX101
Discontinued
