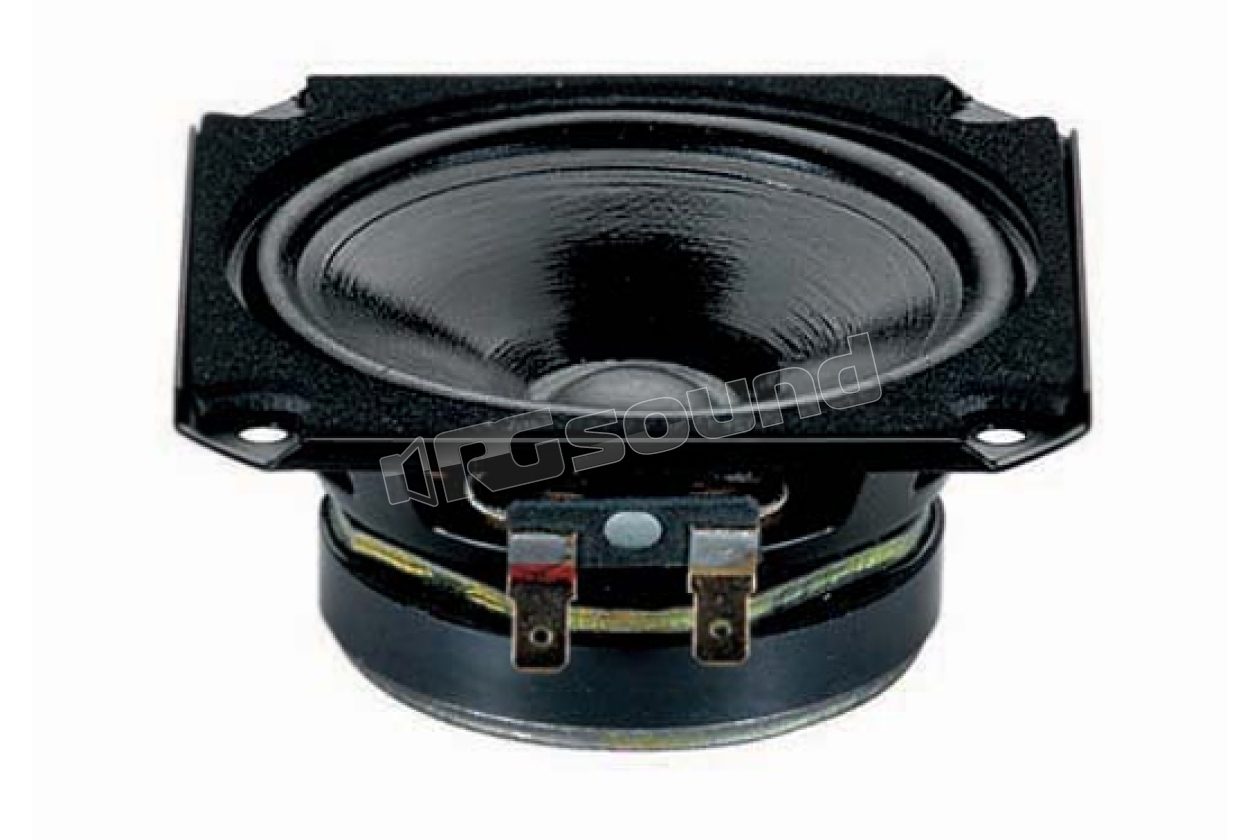

HX100 100mm full-range speaker

Ciare

Discontinued

Your price:
€ 55,10
Price per single item (VAT included)
Type
Midrange
Speaker Size
100 mm
MAX Power
50 Watt
RMS Power
25 Watt
Frequency Response
80 - 18.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
0,4 Kg
Installation Depth
42 mm
Voice Coil Diameter
20 mm

Ciare HX100 full-range 100mm with damped cellulose diaphragm, canvas suspension. Ciare is a company constantly keeping pace with technological innovations and under continuous market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HX100 Features

  • Max power: 50W
  • Nominal power: 25W
  • Nominal impedance: 8Ω
  • Diameter: 100mm
  • Voice coil diameter: 20mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency response 80-18,000 Hz
  • Recommended load type: Sealed enclosure
  • Recommended sealed volume: 8 dm3

HX100 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Treated canvas
  • Former type: Aluminum
  • Air gap height: 4 mm

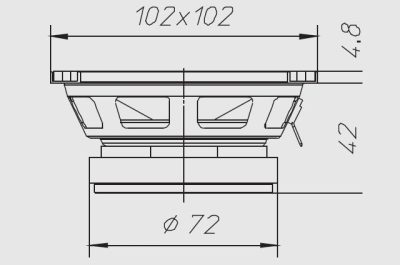

HX100 Dimensions

  • External diameter: 102 x 102 mm
  • Depth under flange: 42 mm
  • Flange thickness: 4.8 mm
  • Panel hole: 91 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5.5 mm
  • Mounting hole position diameter: 116
  • Weight with individual packaging: 0.40 Kg

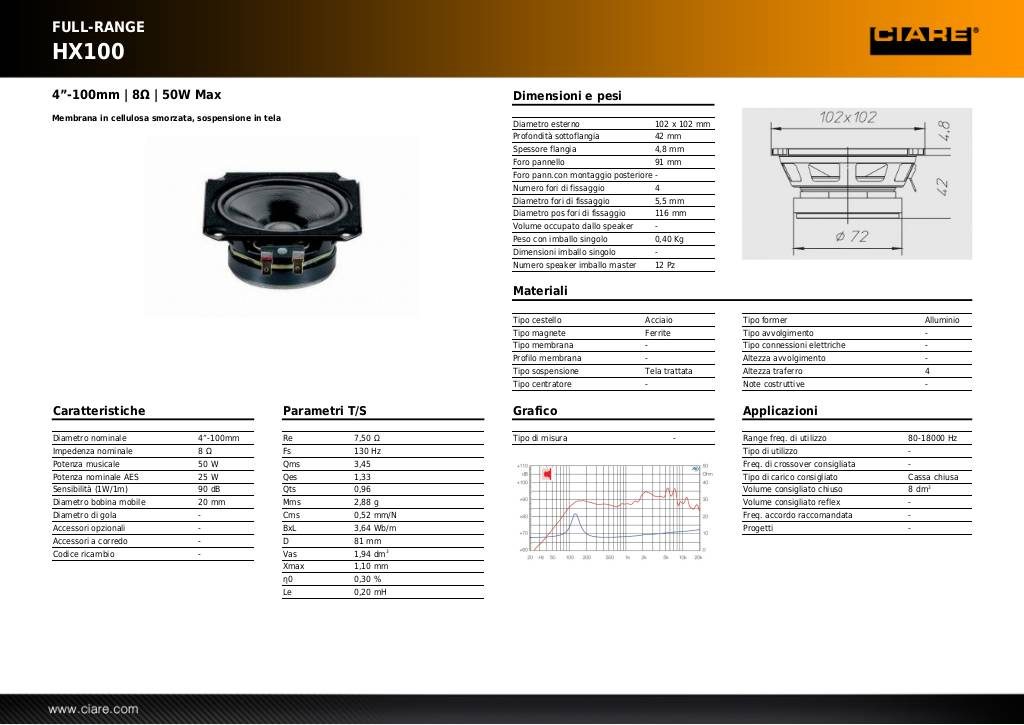

Scheda tecnica

20131104122648-hx100.pdf
