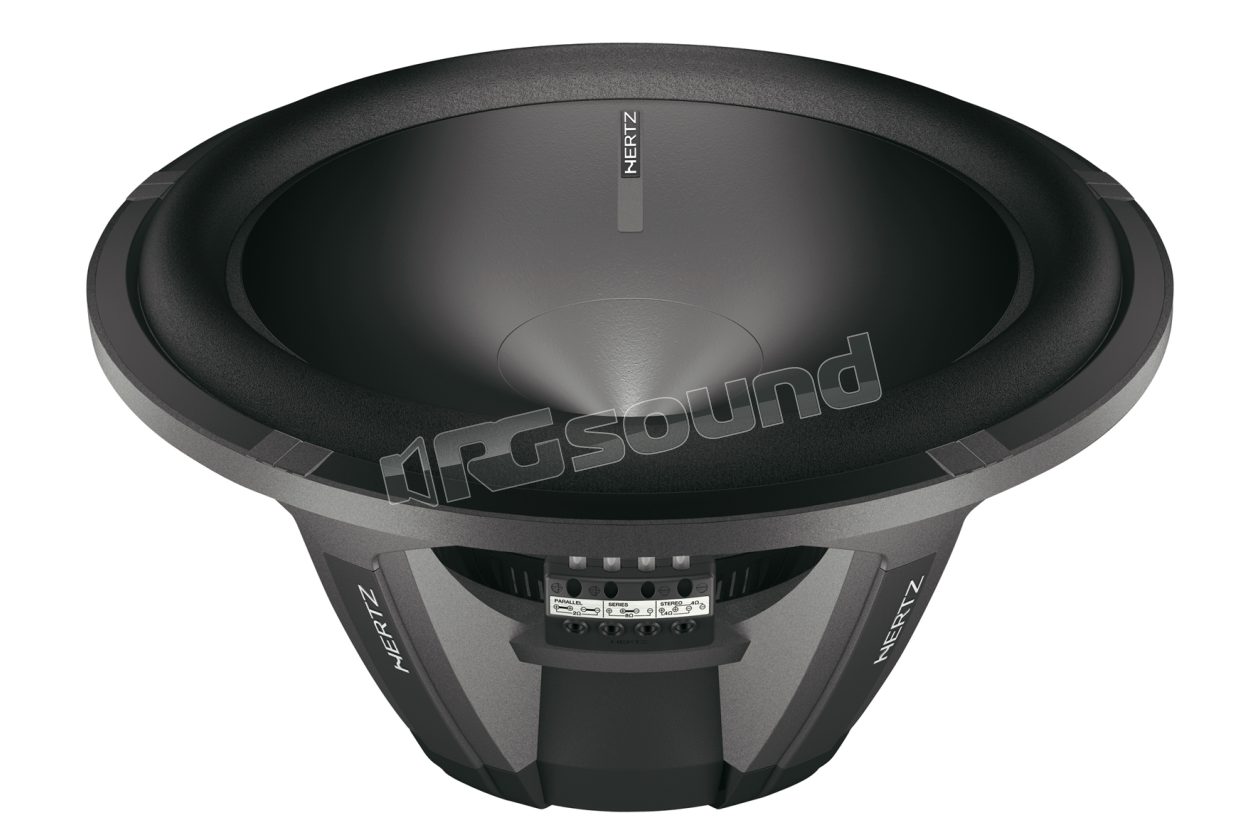

HX 380 D.5

Hertz

Discontinued

Your price:
€ 279,00
Price per single item (VAT included)

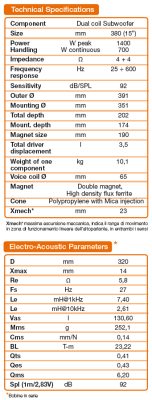

Type
Subwoofer
Speaker Size
380 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Frequency Response
25 - 600 Hertz
Sensitivity
92 dB
Impedance
4 + 4 Ohm
Weight
10,1 Kg
Installation Depth
174 mm
Woofer Material
Polypropylene with Mica injection

HX 380 D.5 Sub 38 cm, dual voice coil 4+4 Ohm, 700 W rms


The new HX subwoofers of the Hi-Energy line represent the highest technological expression in the reproduction of bass frequencies.
The V-cone promotes a wide acoustic dispersion that makes the sound even more powerful. The forced ventilation system with holes on the bottom plate, combined with the particular length of the center pole and the materials chosen for the voice coil, produce a high capacity for heat dissipation. The basket constructed in ultralight resonance-free aluminum alloy and designed with spokes offers a reduction in the incidence on acoustic emission.


The refined finishes and rubber protections, which cover the magnetic groups, in addition to reducing induced spurious vibrations, allow the realization of subwoofer units with a captivating and aggressive appearance. The balance of electroacoustic parameters makes the HX suitable for different types of load, whether in air suspension or tuned reflex enclosures, they always generate powerful, clean and undistorted sound.

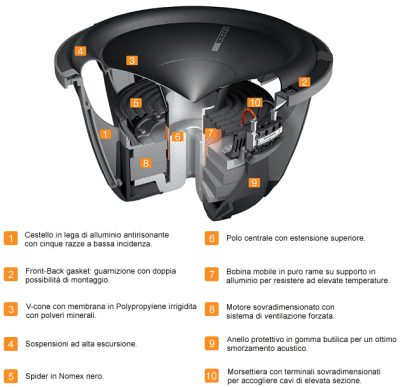

HX 380 D.5 Features

1. Resonance-free aluminum alloy basket with five low-incidence spokes.
2. Front-Back gasket: gasket with dual mounting capability.
3. V-cone® with polypropylene membrane stiffened with mineral powders.
4. High excursion suspensions.
5. Black nomex spider.
6. Center pole with upper extension.
7. Voice coil in pure copper on aluminum support to withstand high temperatures.
8. Oversized motor with forced ventilation system.
9. Butyl rubber protective ring for excellent acoustic damping.
10. Easily accessible binding post with oversized terminals to accommodate high gauge cables.
11. Dual voice coil, for greater versatility and power.

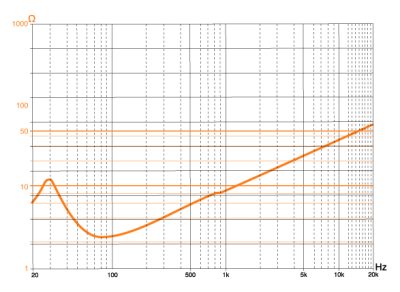

Frequency response chart

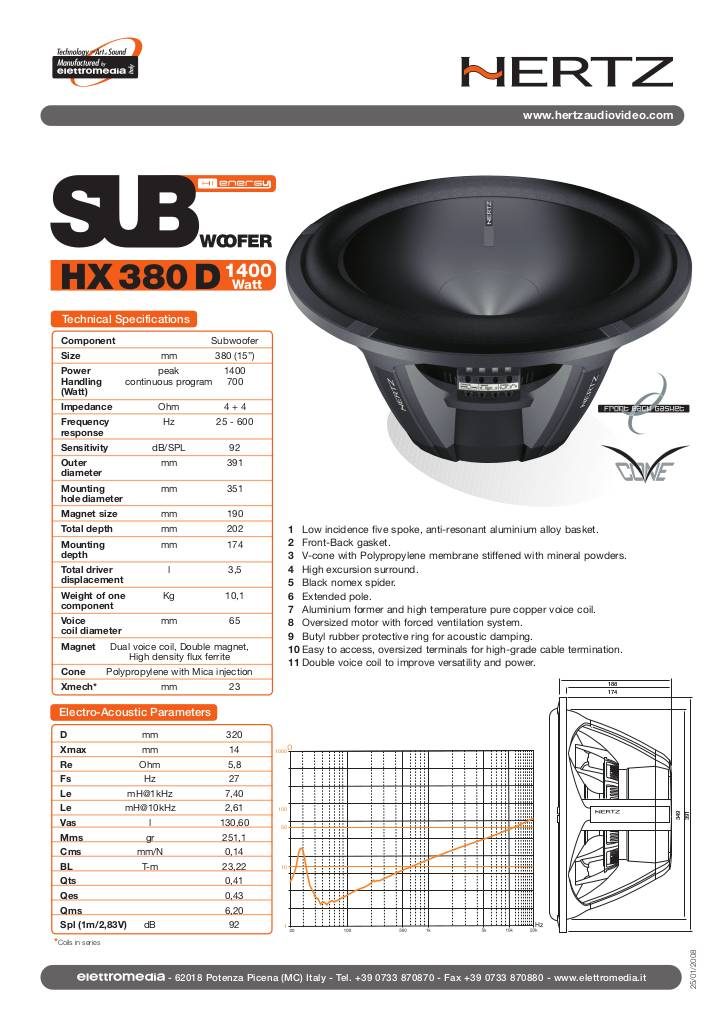

scheda tecnica - specifiche

20080813114811-pdf-hx380d.pdf
Discontinued
