HX 250 D.5 Dual voice coil 4+4 Ohm subwoofer for sealed and bass reflex enclosures

Hertz

Discontinued

Your price:
€ 199,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
900 Watt
RMS Power
450 Watt
Frequency Response
34 - 800 Hertz
Sensitivity
88 dB
Impedance
4 + 4 Ohm
Weight
9,5 Kg
Installation Depth
150 mm
Woofer Material
Polypropylene with Mica injection

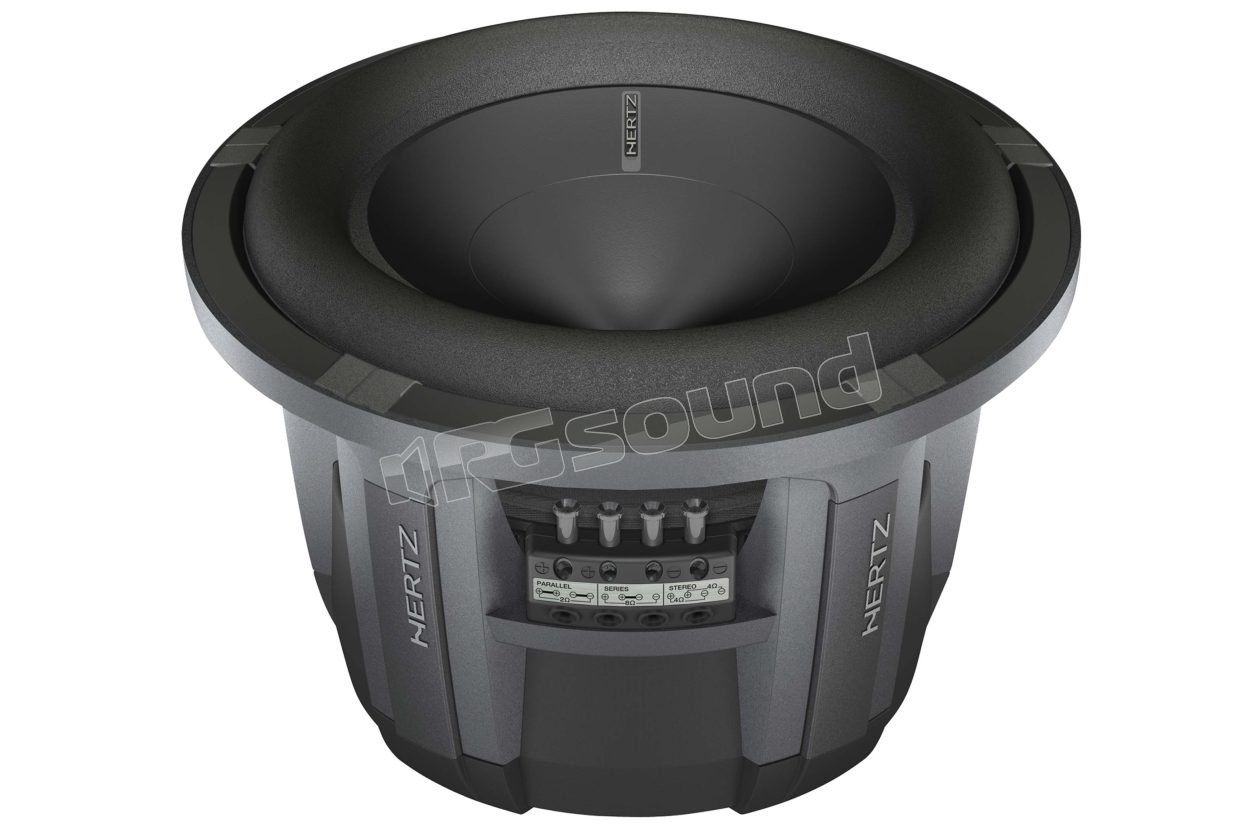

Hertz HX 250 D.5 dual voice coil 25 cm subwoofer

HX subwoofer from the Hi-Energy line with 4+4 Ohm impedance, 450 W RMS power installable in sealed or reflex boxes of very compact dimensions. These subwoofers represent the highest technological expression in bass frequency reproduction. The V-cone promotes broad acoustic dispersion that makes the sound even more powerful. The forced ventilation system with holes on the bottom plate, combined with the particular length of the pole piece and the materials chosen for the voice coil, produce high thermal dissipation capacity. The basket constructed in lightweight anti-resonance aluminum alloy and designed with spokes offers a reduction in impact on acoustic emission.

The fine finishes and rubber protections that cover the magnetic groups, in addition to reducing spurious vibrations induced, allow the creation of subwoofer units with a striking and aggressive appearance. The balance of electroacoustic parameters makes the HX suitable for different types of loads, whether in pneumatic suspension boxes or tuned reflex enclosures, they always generate powerful, clean and undistorted sound.

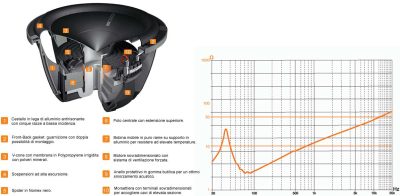

Frequency response chart

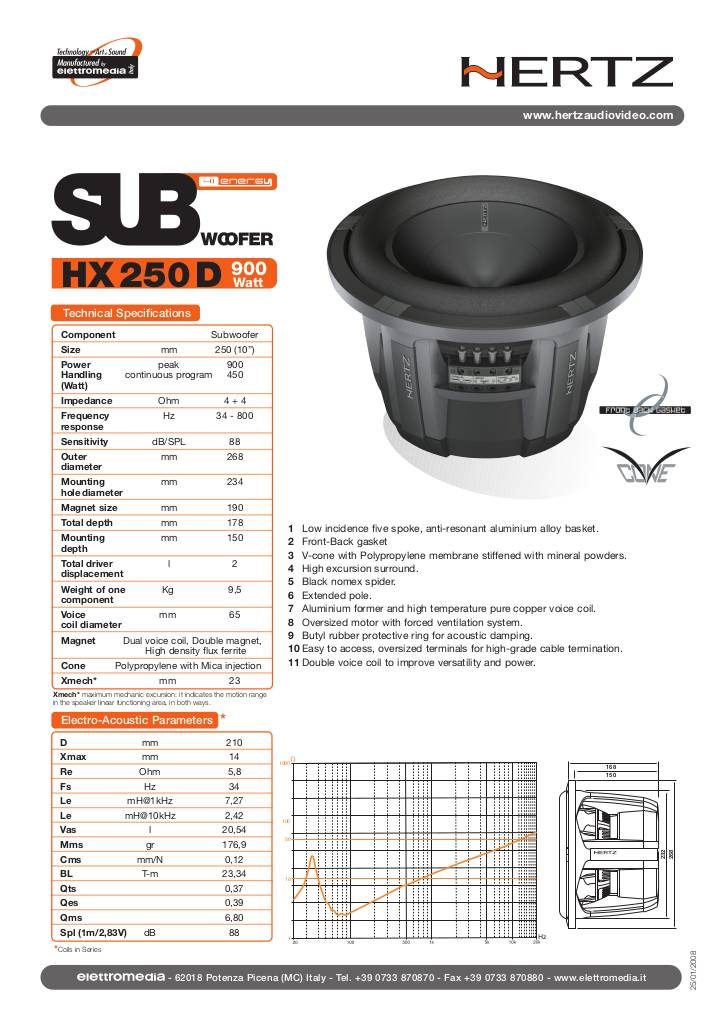

scheda tecnica - specifiche

20080813112338-pdf-hx250d.pdf

Manuale installazione

n-20190926120000-pdf-hx250d.pdf

Hertz HX 250 D.5 technical specifications

Subwoofer dimensions 250 mm (10 ")

Peak power 900 W

Rated power handling 450 W

Impedance 4 + 4 Ohm

Frequency response 34-800 Hz

Sensitivity 88 dB / SPL

External diameter 268 mm

Mounting hole diameter 234 mm

Mounting depth 150 mm

Dual voice coil, dual ferrite magnet with high density flux

Polypropylene cone with mica injection

Discontinued
