HX 100 PHASE EVO 2 High End 10cm 2-way system

Audio System

Discontinued

Your price:
€ 599,00
Price per single item (VAT included)
Type
2-way separate kit
Woofer Size
100 mm
Tweeter Size
30 millimetri
MAX Power
130 Watt
RMS Power
115 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cono in alluminio
Tweeter Material
Neodimio

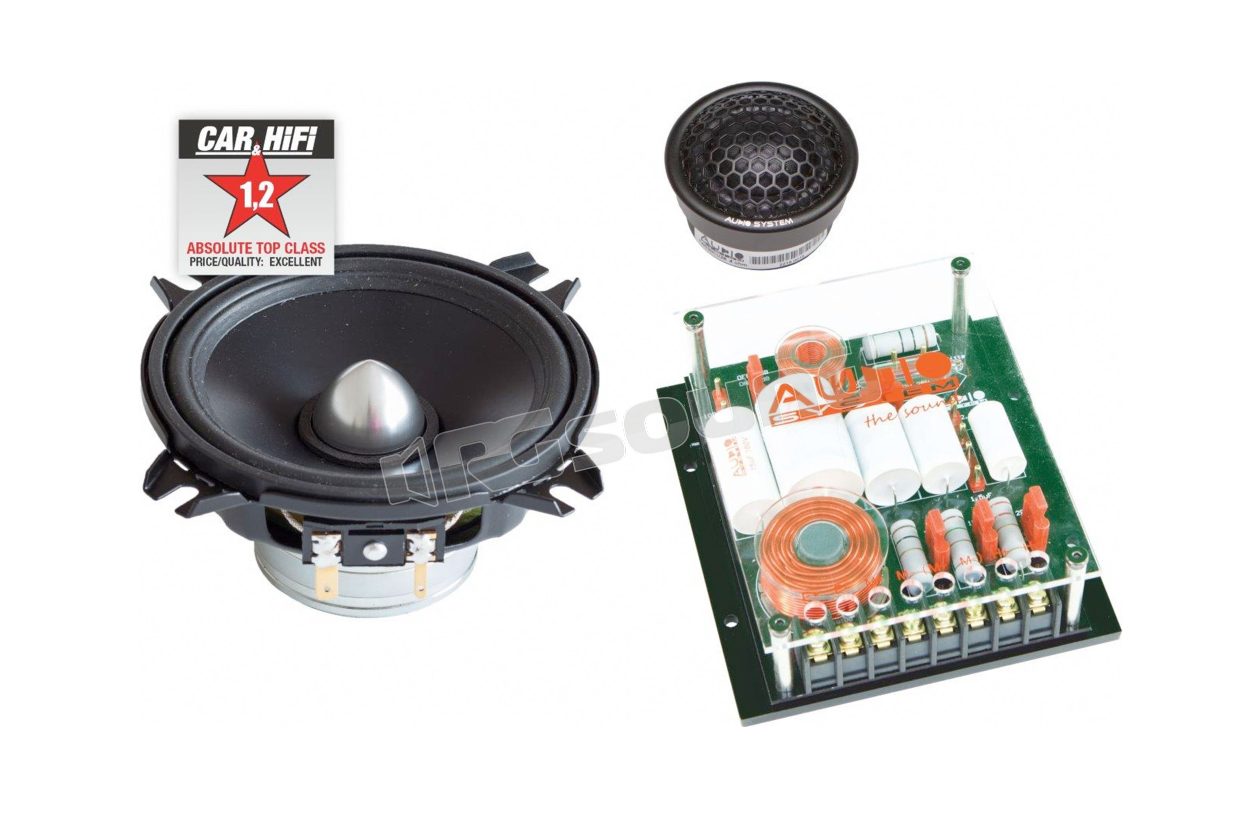

Audio System HX 100 PHASE EVO 2 HIGH END 2-way speaker kit with 100 mm drivers made in Germany, power 130 Watt, impedance 4 Ohm

HX 100 PHASE EVO 2 consists of:

2x PHASE HS 30 pair of fabric dome tweeters with neodymium and 30 mm with aluminum flange with greater coupling volume
Protective grille
Fs: 689 Hz
External diameter: 60 mm
Installation depth: 26 mm,
Installation hole size: 54 mm
Impedance: 4 Ohm

2x EX 100 PHASE EVO 2 pair of HIGH-END 100 mm speakers with neodymium motor
Ultra-light / stable NAWI aluminum membrane and Nomex spider
Aluminum phase cap
External diameter: 123/100 mm
Installation depth: 46 mm
Installation size: 88 mm
Impedance: 4 ohm
Power: 115/80 watt

2x FWHX pair of high quality crossovers

1x Dedicated aluminum enclosure

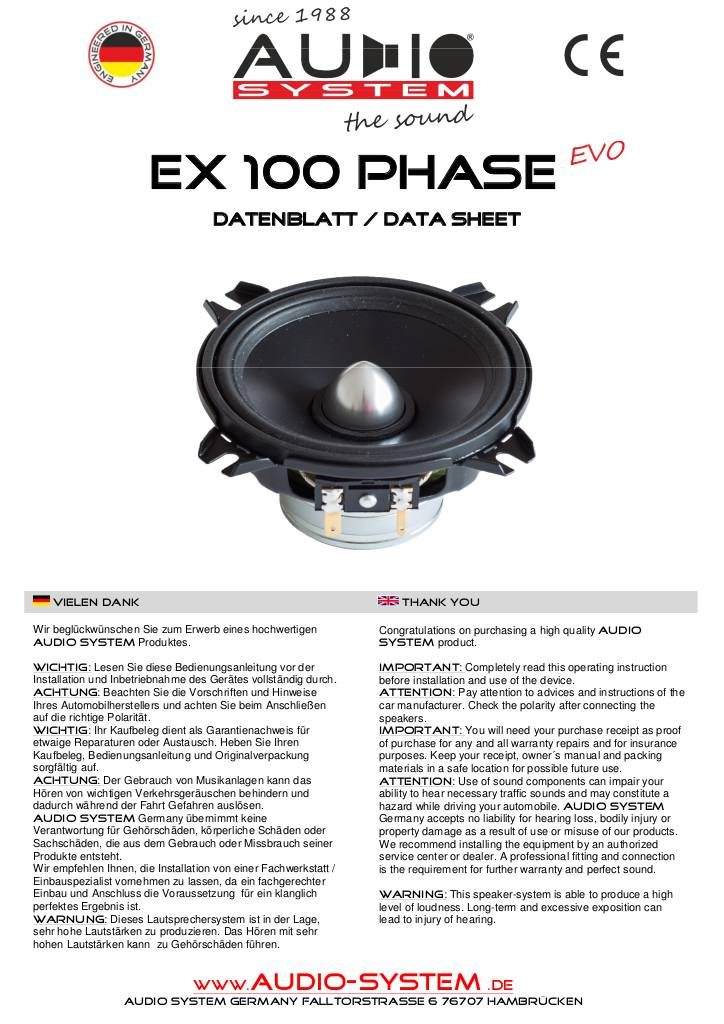

Scheda tecnica woofer

n-20200424144353-ex100phase.pdf

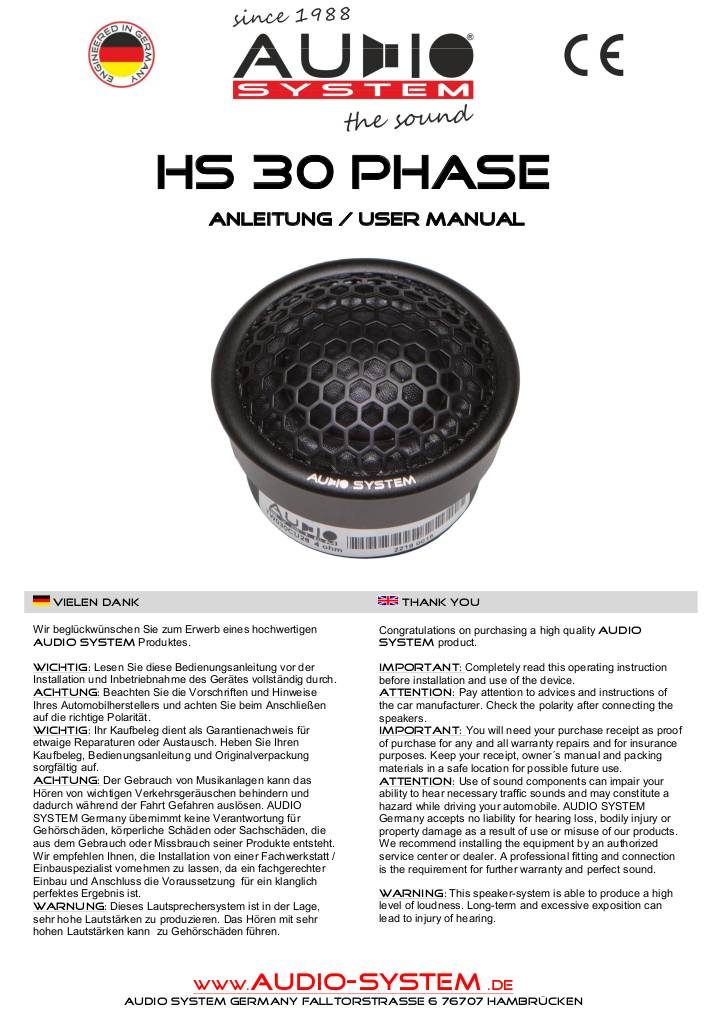

Scheda tecnica

n-20200424144848-datenblatt-hs-30-phase-compl.pdf
